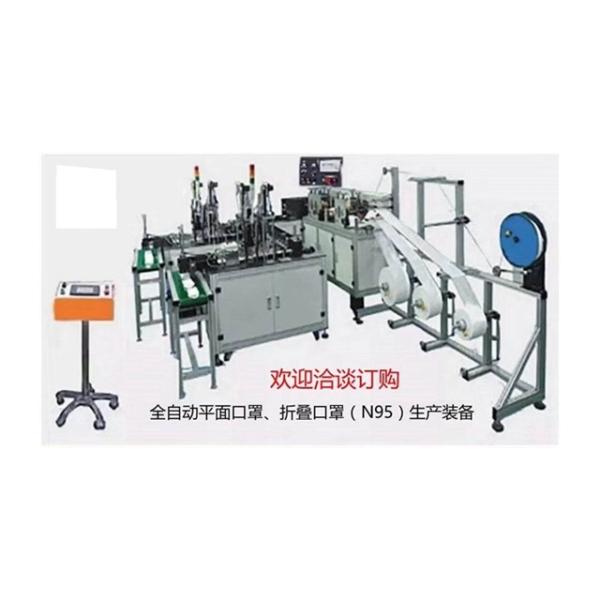

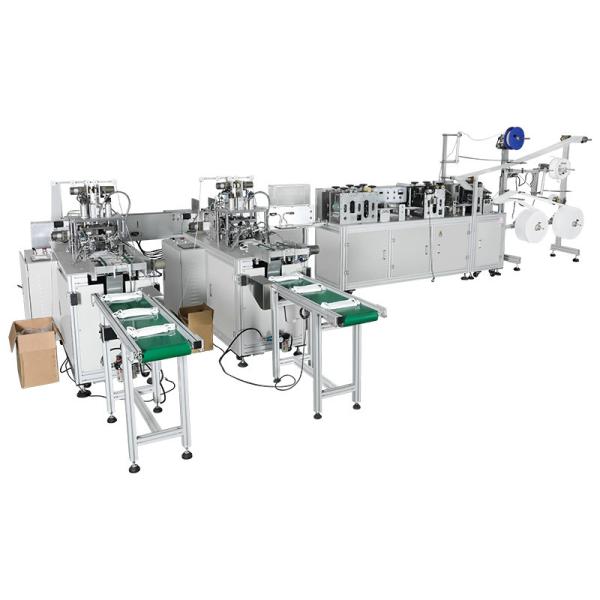

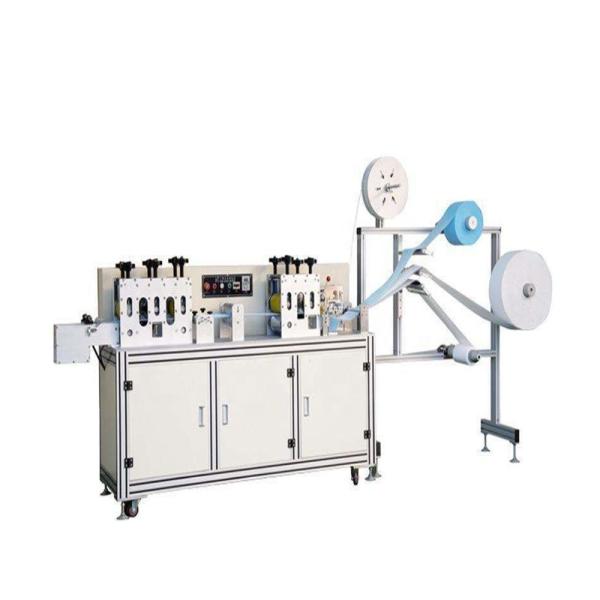

3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
3 Ply N95 Medical Nonwoven Mask Making Machine
Specifications
Brand Name :
ACEMIEN
Model Number :
MASK-01
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1set
Price :
40000USD/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per day
Delivery Time :
15 working days
Packaging Details :
wood case with plastic film
Name :
mask making machine
Application :
n95 mask
material :
NonWoven
After-sales service provided :
Engineers available to service machinery overseas
Capacity :
60000pcs/day
Voltage :
380V-3PHASE-50HZ
Power :
2.2kw
Color :
OPTIONAL
Warranty :
1 Year
Weight :
515KG
Description

This machine is mainly used for the automatic formation of flat masks: the entire roll of fabric is driven by rollers after
unwinding,and the fabric is automatically folded and hemmed; the entire length of the nose bridge is pulled and unrolled, cut to length and imported into the hemmed fabric, bilaterally Ultrasonic welding to the seal, then ultrasonic side sealing, cutting with a cutter:the mask is conveyed to the two mask earband welding stations through an assembly line, and the final mask is formed by ultrasonic welding. When the mask is made, it passes the assembly line. Conveyed to flat belt line for collection.

The main structure of the equipment:

No. Equipment name Qty Remark

1

 Material frame

1set

SS outer layer non woven fabrics

Filter non woven fabrics

SS inner layer non woven fabrics
2 Nose wire feeding system 1set
3 Nose bridge strip device,cutter mechanism 1set
4 Mask edge fold mechanism 1set Mask pleating system
5 Mask fan fold mechanism 2sets Mask pleating system
6 Roll welding side seam 1set
7 Roll sealing mechanism 1set
8 Full automatic Ear loop welding machine 1set Output :60000pcs/day
