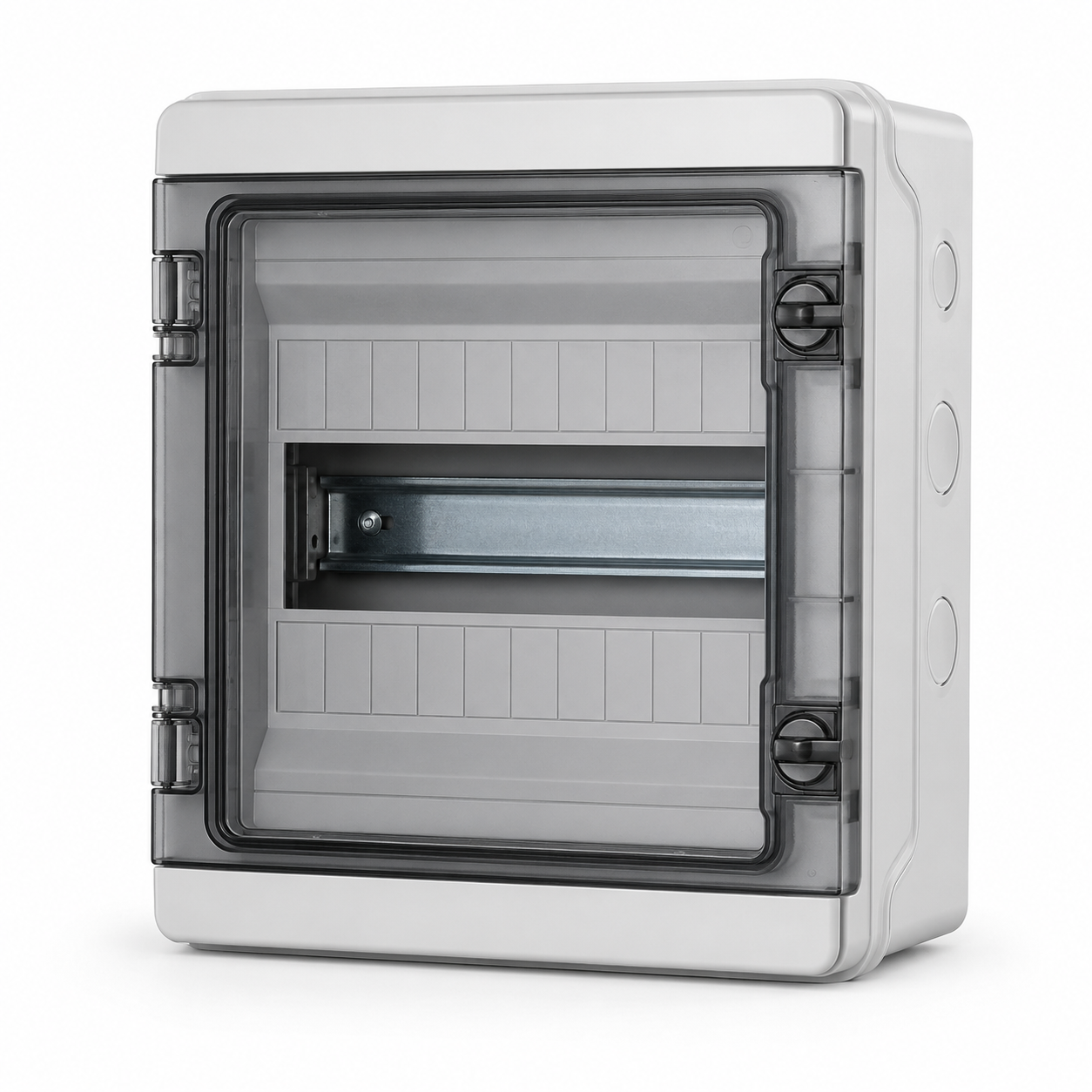

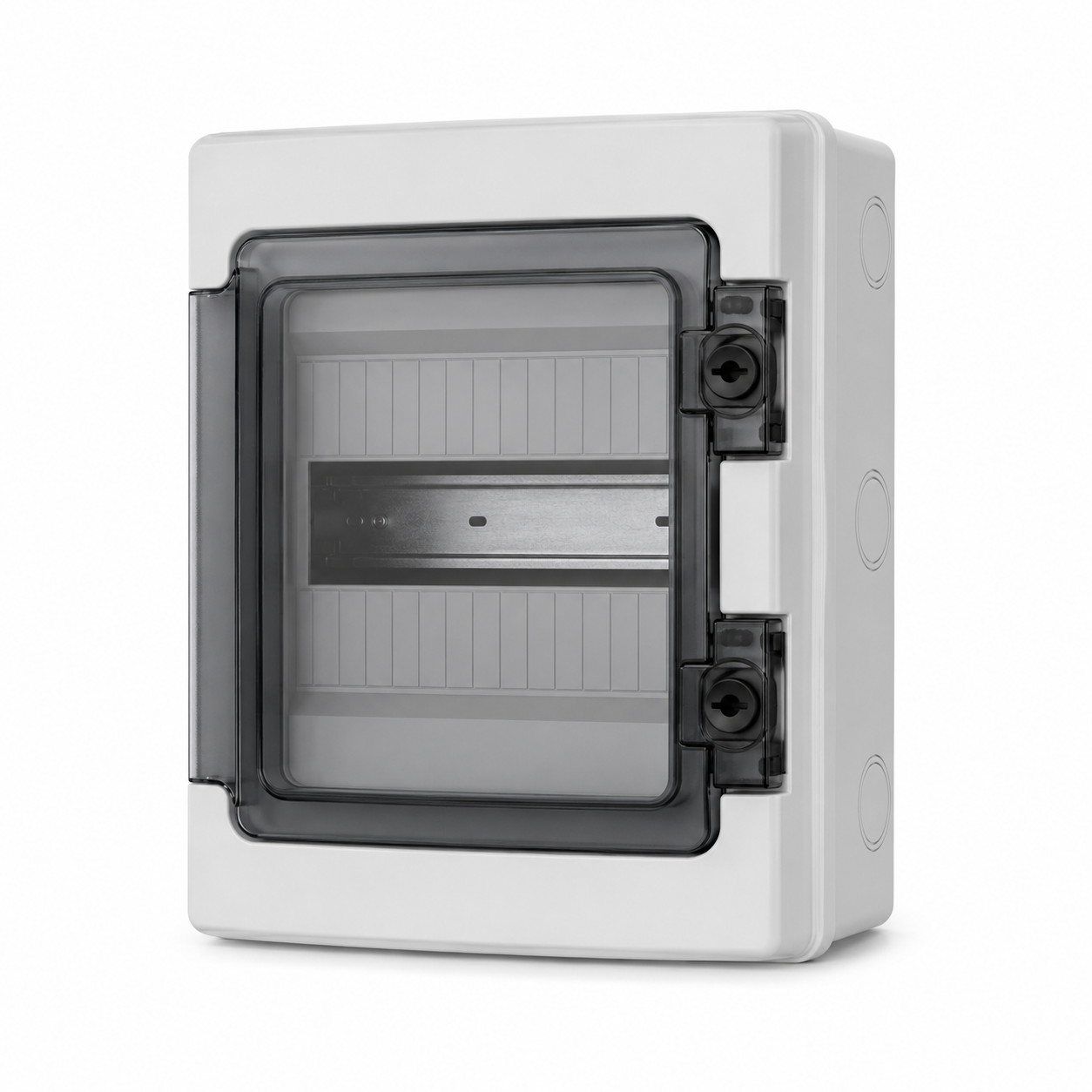

Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Specifications
Brand Name :
OEM
Wall Thickness :
Structural thickness ranging from 1.2mm to 2.5mm to ensure rigid support
IK Rating :
IK08 to IK10
Sealing Technology :
Continuous CNC Polyurethane (PU) foaming gasket for a seamless
Function :
Protecting Function,Electrical Distribution Box Size
Size :
width 22mm 25mm 30mm etc,customized
Payment Terms :
TT
Feature :
Convenient,Adjustable DIN rail for flush mount products
Place of Origin :
XiaMem,China
MOQ :
100
Price :
negotiable
IP Rating :
P65, IP66, or IP67
Body Material :
High-impact ABS
Description
IP65 Waterproof Distribution Box | Wall Mount Weatherproof Circuit Breaker Panel
Product Overview

The IP65 Waterproof Distribution Box is a high-performance electrical enclosure designed for the safe housing of circuit breakers and control components in demanding environments. Engineered with a focus on structural rigidity and environmental sealing, this wall-mounted panel provides an impenetrable barrier against dust, moisture, and chemical exposure.

This series is the preferred solution for industrial automation, outdoor power distribution, and renewable energy systems where operational continuity is non-negotiable.

Technical Specifications
Technical Parameter Specification / Measurement
Ingress Protection Rating IP65 (IEC 60529 Standard)
Impact Resistance IK08
Material Composition High-Impact ABS Body / Polycarbonate (PC) Cover
Rated Voltage (Un) Up to 400V AC
Insulation Voltage (Ui) 690V AC
Flame Retardancy UL94-V0 (Self-extinguishing within 10s)
Installation Method Vertical Wall Mount
Chemical Resistance Resistant to diluted acids, alkalis, and oils
Waterproof Distribution Box IP65 Wall Mount Weatherproof Circuit Breaker Panel
Key Engineering Features
High-Performance Sealing System

Equipped with a continuous Polyurethane (PU) foam gasket, the interface between the base and the cover ensures a permanent IP65 seal. This prevents ingress even under high-pressure splashing water, making it suitable for car washes, coastal installations, and food processing plants.

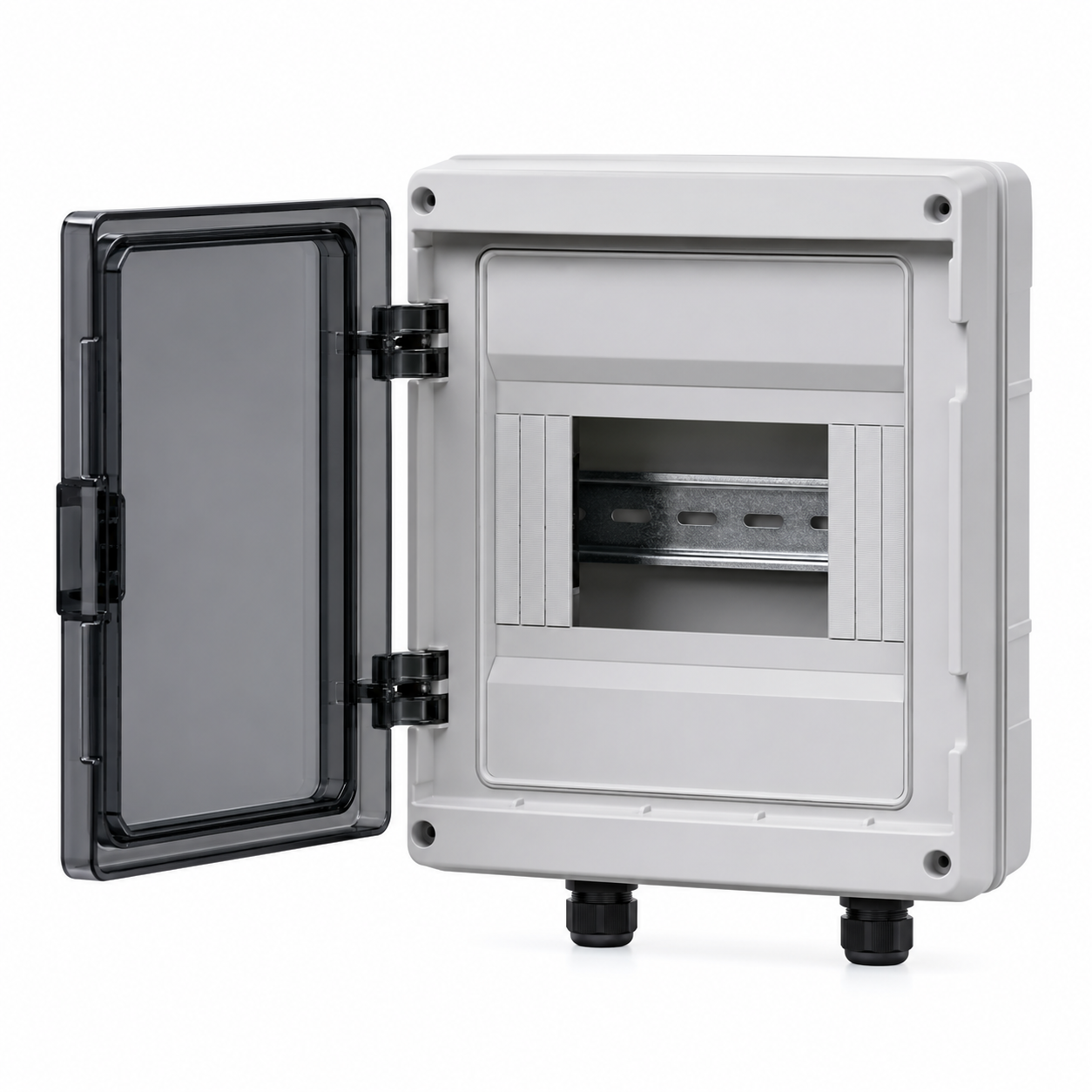

UV-Stabilized Polycarbonate Door

The transparent inspection window is manufactured from UV-stabilized Polycarbonate. This ensures the door remains shatterproof and maintains optical clarity (non-yellowing) even after prolonged exposure to high-intensity solar radiation.

Structural Integrity & Heat Resistance

The enclosure body is molded from high-density ABS, providing an IK08 impact rating. It maintains dimensional stability within a temperature range of -25 °C to +60°C, preventing warping or seal failure in extreme climates.

Efficient Installation Geometry
  • Integrated DIN Rail: Standard 35mm galvanized steel DIN rail included for rapid component mounting.
  • Pre-molded Knockouts: Precisely engineered cable entry points support various gland sizes (M20/M25/M32) without compromising structural strength.
  • Ample Wiring Space: Optimized internal depth to allow for proper bending radii of high-gauge conductors.
Industrial Applications
  • Renewable Energy: Ideal as a string combiner box for Solar PV systems or wind turbine control interfaces.
  • Infrastructure: Reliable power distribution for tunnels, railway signaling, and highway lighting.
  • Manufacturing: Protection for motor starters and RCDs in high-moisture production lines.
  • Outdoor Commercial: Secure housing for EV charging peripherals and outdoor HVAC controls.
Compliance & Quality Control
  • Standardization: Manufactured in accordance with IEC/EN 62208 for empty enclosures for low-voltage switchgear.
  • Testing Protocol: Each batch undergoes rigorous hydrostatic pressure tests and thermal aging analysis.
  • RoHS/CE Certified: Full compliance with European safety and environmental protection directives.
Frequently Asked Questions
What is the difference between IP65 and IP66 for this specific panel?
IP65 provides protection against water jets from any angle, which is the standard requirement for most outdoor rain-exposed environments. IP66 is designed for more powerful sea-wave-like pressure. For standard outdoor wall mounting, IP65 offers the optimal balance of protection and cost-efficiency.
Can the door be locked for safety?
Yes, the enclosure features a secure latch mechanism that can be further reinforced with standard locking accessories to prevent unauthorized access to the circuit breakers.
Is this enclosure suitable for highly corrosive environments?
Yes, the ABS/PC material blend is naturally resistant to salt spray and atmospheric corrosion, making it superior to metal boxes in coastal or chemical-rich areas.
