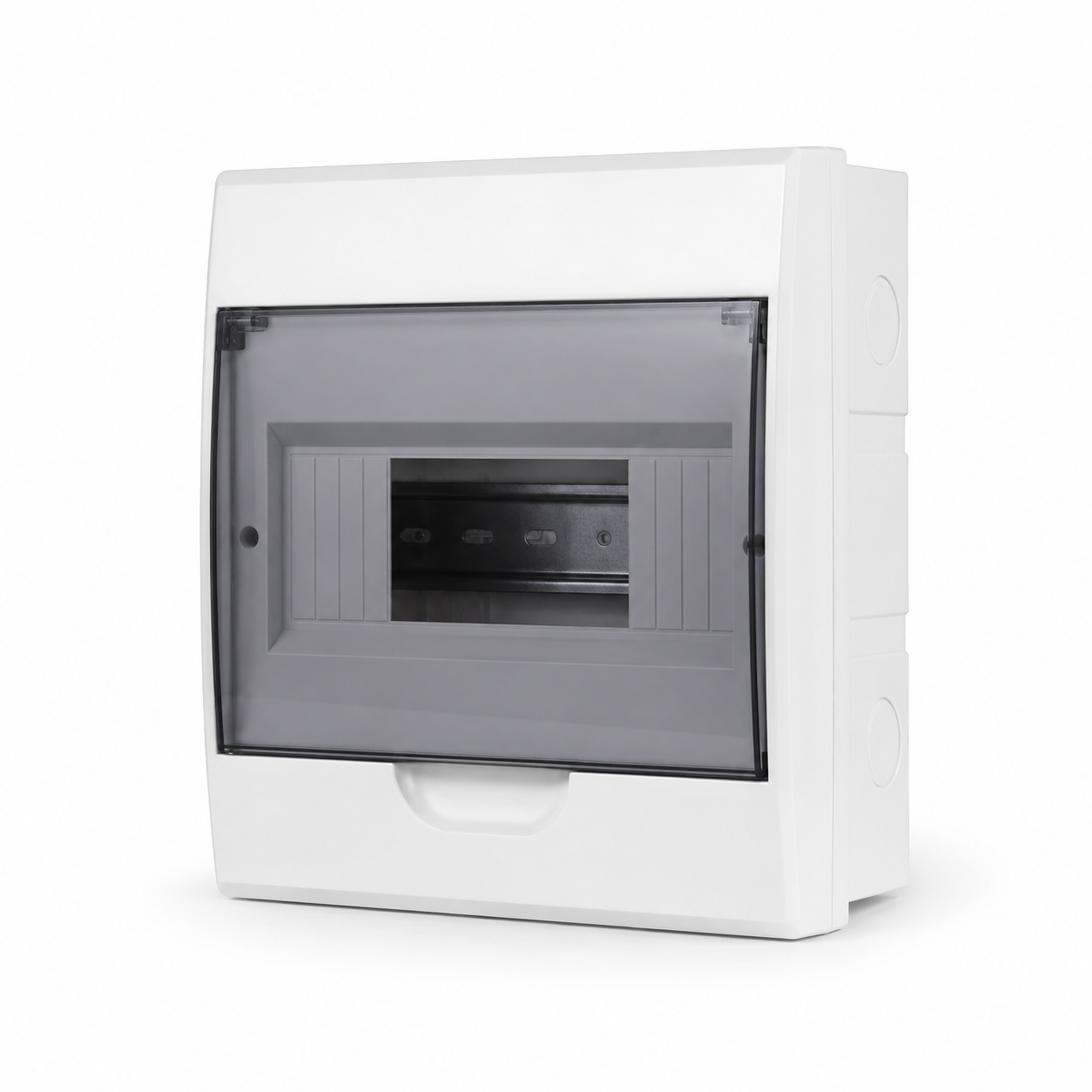

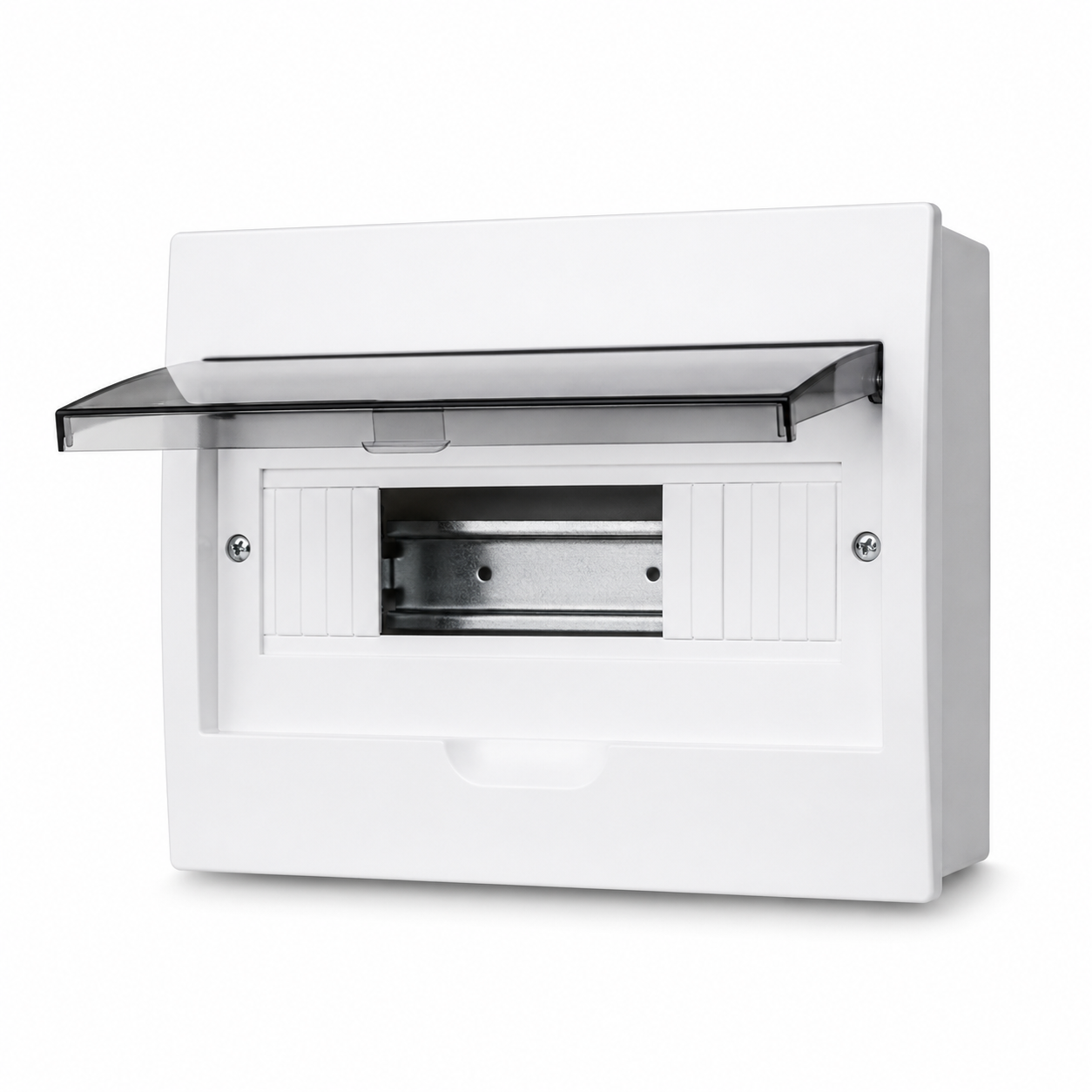

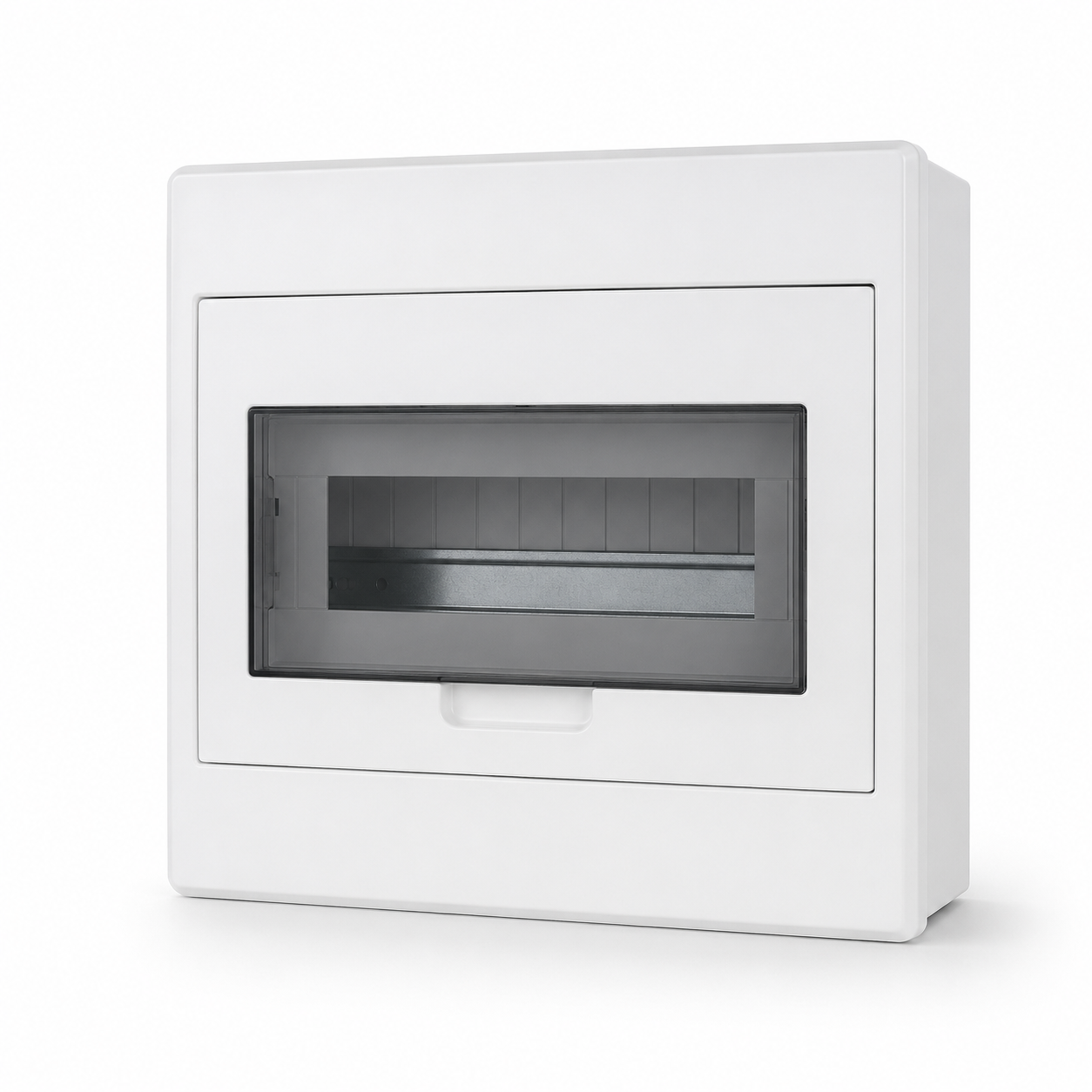

Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Specifications
Numberofphases :
Single phase or three phase
Ingressprotectionrating :
IP40 or IP65
Mountingtype :
Surface mounted or flush mounted
MOQ :
100
Application :
Residential electrical circuit distribution and protection
Cableentry :
Top and bottom knockouts
Lockable :
Yes or No
Price :
negotiable
Payment Terms :
TT
Standardscompliance :
IEC 61439, CE certified
Place of Origin :
XiaMem,China
Productname :
Residential Distribution Box
Description
Compact Residential Distribution Box | Space-Saving Indoor Electrical Panel Box
Product Overview

Optimize your residential electrical infrastructure with our Compact Residential Distribution Box. Designed specifically for modern apartments, tiny homes, and urban renovations, this space-saving indoor electrical panel provides a streamlined solution for power management without sacrificing safety or accessibility.

Engineered with a low-profile architectural footprint, this enclosure allows for seamless integration into shallow wall cavities or tight utility closets. It is the ideal choice for developers and homeowners seeking a high-density breaker arrangement within a minimalist aesthetic.

Technical Specifications
Product Category Residential Low-Voltage Distribution
Mounting Type Flush Mount / Recessed (Wall-integrated)
Material Composition Flame-Retardant ABS (Body) + Powder-Coated Metal (Optional)
Module Capacity 4, 8, 12, or 18 Ways (Customizable)
Insulation Voltage 400V - 690V
Protection Class IP40 (Indoor Optimization)
Flammability Rating UL94-V0 (Self-extinguishing)
Compact Residential Low Voltage Electrical Panel Assembly Space Saving Indoor Electrical Panel Box
Core Product Advantages
Ultra-Slim Space-Saving Design

With an installation depth optimized for standard 2x4 wall studs, this distribution box minimizes protrusion. Its compact dimensions allow for installation in narrow hallways, behind doors, or within kitchen cabinetry, reclaiming valuable living space.

High-Density Circuit Management

Despite its small footprint, the internal architecture supports a high concentration of DIN-rail mounted components (MCBs, RCCBs, and SPDs). The dual-entry cable knockouts ensure that even with maximum module utilization, wire routing remains organized and heat dissipation is maintained within safe parameters.

Rapid "Plug & Play" Installation
  • Integrated Leveling System: Features built-in guides for perfectly horizontal mounting.
  • Pre-fitted DIN Rail: Standard 35mm zinc-plated rail included for immediate component snap-on.
  • Flexible Neutral/Earth Bars: High-conductivity copper bars pre-positioned to reduce wiring time by up to 15%.
Residential Aesthetics

The enclosure features a sleek, matte-white finish and a flush-fitting door with a 180° swing radius. It is designed to be visually unobtrusive, blending into modern interior paint schemes for a professional, "hidden-in-plain-sight" look.

Application Scenarios
  • Modern Apartments & Condos: Centralized power control for high-density urban housing.
  • Interior Renovations: Replacing bulky, outdated fuse boxes with a streamlined modern panel.
  • Smart Home Hubs: Housing for smart breakers and energy monitoring modules.
  • Auxiliary Power Units: Ideal for garage conversions, basements, or home offices.
Reliability & Safety Evidence
  • Thermal Stability: Tested to withstand temperatures up to 70 °C without structural deformation.
  • Electrical Safety: Compliant with IEC 60670-24 standards for household and similar fixed electrical installations.
  • Impact Resistance: Rated at IK07, ensuring protection against accidental domestic impacts.
Frequently Asked Questions
Q: Can this box be surface mounted or only flush mounted?
A: This specific compact series is optimized for flush/recessed mounting to maximize space. However, we offer an adapter kit for surface-mount applications if required.
Q: How many circuit breakers can the 12-way model actually hold?
A: It accommodates twelve standard 18mm single-pole breakers. If using double-pole or RCBO units, the capacity is reduced accordingly.
Q: Is the door reversible?
A: Yes, the door hinge system is designed for both left-hand and right-hand opening to accommodate tight corner installations.
