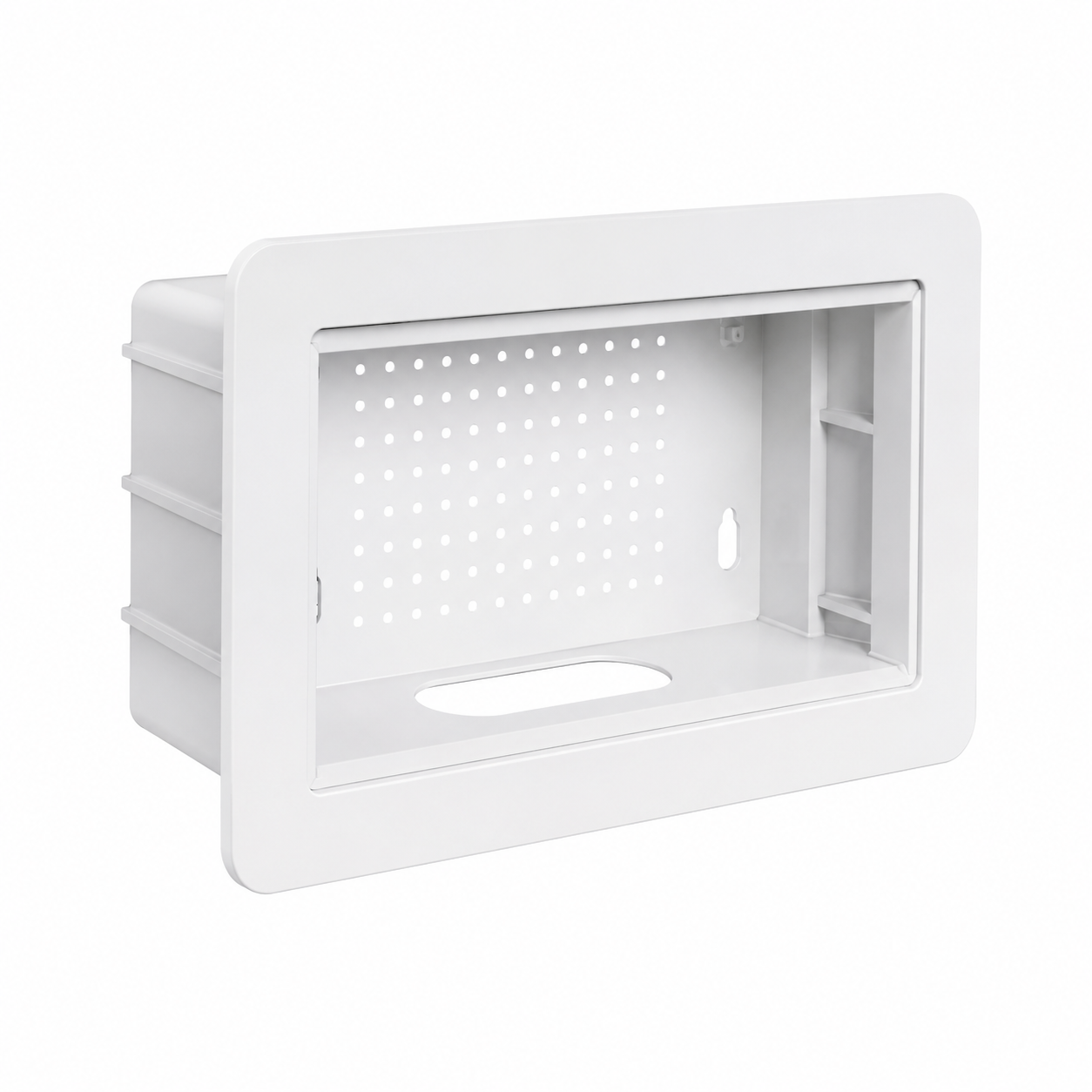

Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Specifications
MOQ :
100
Price :
negotiable
Place of Origin :
XiaMem,China
Doortype :
Single door / Double door
Fireresistance :
Flame retardant
Payment Terms :
TT
Surfacetreatment :
Electrostatic spraying
Protectionlevel :
IP30
Applicationareas :
Telecommunications, security systems, network distribution
Weight :
Varies by size, typically 5-15 kg
Installationmethod :
Wall-mounted
Color :
Light gray (customizable)
Description
Recessed Hidden Weak Current Box Wall Embedded Household Wiring Box
Product Overview

Achieve a flawless, minimalist interior design while protecting your home's smart network infrastructure with the Recessed Hidden Weak Current Box. Specifically engineered as a wall-embedded household wiring hub, this enclosure completely conceals messy cables, fiber optic routers, network switches, and smart home modules directly inside your wall cavity.

Designed to sit flush with your drywall or plaster, the front panel can be easily integrated into your home's aesthetic, eliminating unsightly wires and protruding bulky cabinets. It is the ultimate B2B and B2C solution for modern residential construction, renovations, and smart home structured media management.

Technical Specifications
Parameter Specifications & Standards
Product Type Recessed / Wall-Embedded Weak Current Box
Installation Method Flush Mount (In-Wall Recessed Layout)
Chassis Material Heavy-Duty Cold Rolled Steel (Rust-Proof Powder Coated)
Front Cover Material High-Impact, RF-Transparent ABS Plastic Alloy
Signal Transmission Zero-attenuation layout for Wi-Fi, Bluetooth, and Smart Hubs
Internal Mounting Removable Grid Organizer Plate with Hook-and-Loop Straps
Heat Management Passive Top/Bottom Ventilation Louvers
Cable Management Multi-Diameter Top, Bottom, and Rear Knockout Holes
Certifications CE, RoHS, ISO9001 Structural Safety Compliant
Recessed Hidden Low Voltage Distribution Panel Assembly Wall Embedded Household Wiring Box
Core Features & Architectural Advantages
Seamless Recessed "Hidden" Design

The primary advantage of this wiring box is its ultra-low profile frame. The main chassis installs directly into the wall stud bay, leaving only a sleek, flat outer panel exposed. Say goodbye to cluttered entertainment centers and exposed network tangles; this enclosure keeps your living spaces clean, safe, and modern.

High-Performance Signal Transparency (RF-Friendly)

While the back chassis is constructed from rugged metal for structural integrity and fire protection inside the wall, the front door panel is made from a specialized engineering ABS plastic. This ensures your Wi-Fi routers, Zigbee hubs, and smart home automation controllers broadcast signals freely through the wall without dropouts or range loss.

Modular Internal Organization Grid

The interior features a completely customizable, removable mounting grid panel. Instead of stacking devices on top of each other, you can easily secure modems, PoE injectors, and routers using custom brackets or heavy-duty velcro straps. It also includes a designated mounting bracket for an internal power outlet strip.

Efficient Heat Dissipation Architecture

Low-voltage devices that operate continuously generate heat that can degrade performance over time. This wall-embedded enclosure is engineered with hidden, precision-cut ventilation slots on the rim of the frame. This establishes natural air convection, lowering internal operational temperatures without allowing dust ingress.

Ideal Smart Home Use Cases
  • Centralized FTTH Integration: Safely house incoming fiber optic lines, the Optical Network Terminal (ONT), and the main home network router in one hidden space.
  • Whole-House Audio & Smart Automation: A clean enclosure for central smart lighting relays, background audio amplifiers, and intercom modules.
  • Residential Security Control Hub: The perfect hidden station for CCTV camera power supply boxes, security alarm motherboards, and smart locks routing.
  • Multimedia Distribution: Organizes and hides cable TV splitters, HDMI extenders, and Ethernet patch cables behind televisions or in hallways.
Why Contractors & Homeowners Prefer Our Enclosure
  • Adjustable Flange Frame: The frame is designed with adjustable depths to align perfectly with variations in drywall or plaster thickness, ensuring a true flush finish every time.
  • Pre-Punched Conduit Knockouts: Features multiple smooth-edged entry points on all sides to allow flexible routing of PVC conduits and protect fragile fiber optic lines from pinching.
  • Child & Pet Safety: Features a clean push-button pop latch or a key-lock upgrade option, keeping expensive internet hardware safe from curious hands or accidental resets.
Frequently Asked Questions (FAQ)
Can this box be installed in existing walls, or is it only for new construction?
It is ideal for both! For new construction, it mounts easily between standard wall studs. For retrofitting (existing walls), you simply cut an opening matching the chassis dimensions and secure it via the adjustable mounting tabs.
Will hiding my router inside this box slow down my internet speed?
No. Unlike all-metal cabinets that create a signal-blocking "Faraday Cage," our front panel uses RF-transparent ABS composite materials specifically chosen to allow high-frequency wireless signals to pass through unhindered.
Does it come with an internal power strip?
The enclosure includes a dedicated metal bracket to house a standard power socket strip. The power strip itself is sold separately to ensure compatibility with your specific country's regional plug configurations.
