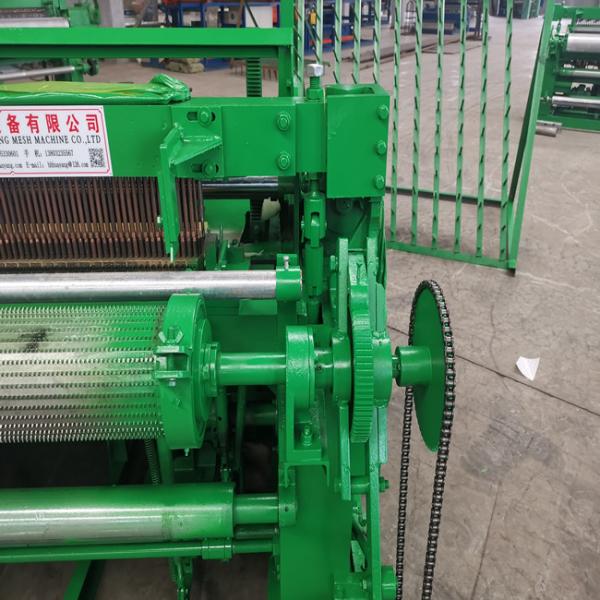

Bridge Automatic 1x1 Fence Mesh Welding Machine
Bridge Automatic 1x1 Fence Mesh Welding Machine
Specifications
Brand Name :
Huayang
Model Number :
R-DHW
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20 sets/month
Delivery Time :
30 days
Packaging Details :
1.Machine will be covered with plastic film and fastened by steel wire in container. 2. Spare parts will be packed into carton box and fastened stable in container.
Product name :
Bridge Using Automatic Fence Mesh Welding Machine
Trademark :
Huayang
Electrodes :
Single or double row
Mechanical Specifications :
According to Customer Requirement
Pressure way  :
Spring-weighted
Mesh Type :
Rolling Mesh
Control System :
PLC
Welding way  :
Silicon controlled synchronous control
Application :
Building&Construction
Suitable wire to the machine :
Low carbon steel wire
Description

Bridge Using Automatic Fence Mesh Welding Machine

1. Product description

Bridge Using Automatic Fence Mesh Welding Machine is used for making wire mesh. The main body frame using thick steel plate and steel, that make the main structure is more fastness,and compact. The weft feeding system, the stepper motor automatically droping the weft automatic, it make the placed more accurately. Pulling mesh system adopts servo motor to pull the network, making the size of the pulling mesh more standard and accurate,and can adjust the cross wire distance at any size.

2. Technical parameter

Model Mesh width Minimum mesh size (inch) Wire diameter(mm) Welding speed (rows/min) Roll mesh length (m) Other available mesh size (inch)
R- DHW 6 feet 1/2x1/2 0.45-0.85 90-120 130 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1/2x1/2 0.6-1.3 90-120 110 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1/2x1/2 0.8-1.6 80-90 100 1/2x1, 1x1/2, 1x1, 2x2
R- DHW 6 feet 1x1 0.45-0.85 90-120 130 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 0.6-1.3 90-110 110 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 0.8-1.6

90-110

 100 1x2, 2x1, 2x2, 2x4
R- DHW 6 feet 1x1 1.4-2.6 80-90 80 1x2, 2x1, 2x2, 2x4


3. Application area

Bridge Using Automatic Fence Mesh Welding Machine is common uses for welded wire mesh, or steel mesh include: fencing panels, wire partitions, wire container panels, wire baskets, animal cages, enclosure works, screens, security panels, shelving, signage, stairways/treads, fishing traps and concrete reinforcement.

4. Advantages

a. This machine adopts PLC control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, once pressing, and separate welding.


b. The welding head is made of chromium-zirconium copper, with good electrical conductivity, hard material and abrasion resistance.

c. High stability ,low noise, automatically straightening, automatically feeding wire .
