Aluminium Roller Shutter Door, Automatic Aluminum Rolling Shutters, Roll up Shutter Door

Specifications

Model NO. :

SA80-1 + SA80-2

Material :

Aluminum Alloy

Type :

Rolling

Open Style :

Rolling

Opening Type :

With Remote Control

Special Function :

Ventilation

Color :

Ral Color Available

Certification :

CCC, ISO9001, CE

Position :

Commercial, Industrial, Residential, Garage, etc

Surface Finishing :

Finished

Max Width :

7200 mm

Max Height :

7000 mm

Optional Colors :

Any Ral Color by Powder Coating, Anodized, or Elec

Thickness Options :

1 mm, 1.2 mm

Operation Way :

Manual Operation / Automatic Operation

Transport Package :

Wooden Box with Bubble Foam

Specification :

80mm

Trademark :

STARKING

Origin :

Made in China

HS Code :

7610100000

Production Capacity :

1000 Sets / Month

MOQ :

Price :

Description

Aluminium Roller Shutter Door, Aluminum Rolling Shutters, roll up shutter door, Aluminum rolling door

PRODUCT DESCRIPTION:
Aluminium roller shutters are perfect for domestic & commercial applications, they can come in a range of colours and are lightweight so they're very fuel efficient whilst keeping your assets safe & protected from theft.

APPLICATIONS:
Every aluminum roller shutter door is built to your required sizes and dimensions,this type of door is designed and widely used for industrial, commercial, residential applications as following:
♦  Front door of a villa
♦  commercial shop fronts
♦  garage
♦  Domestic properties
♦  and more

KEY FEATURES:
♦  Rust-proof. Aluminum roller shutter door is made of aluminum, which makes the door never rust, while normal galvanized steel roller shutter door is easy to get rusty.
♦  Noiseless. In between two aluminum slats, we put special long service life rubber for noise reduction. The rubber could also make the door runs more smoothly. The noise level is around GB/TI6730,Rw=20dB.
♦   Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
♦  Ventilation available. The aluminum slats are punched to offer ventilation.
♦  Many color available.  The natural color, white, blue, green, cream, or any other RAL color by powder coating
♦  Easy to install

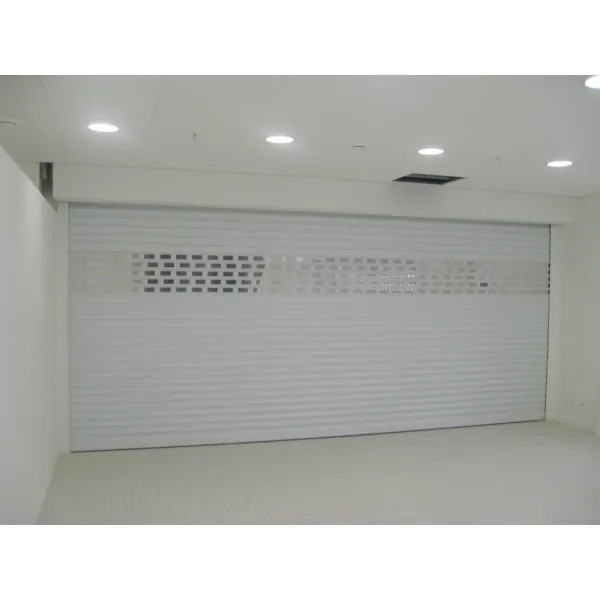

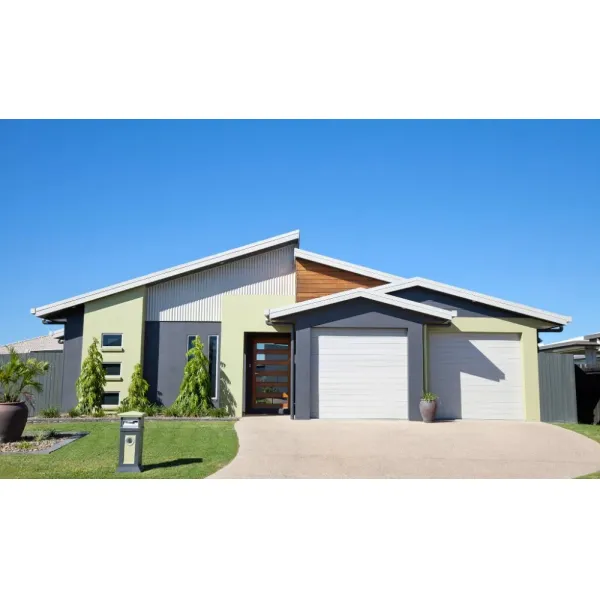

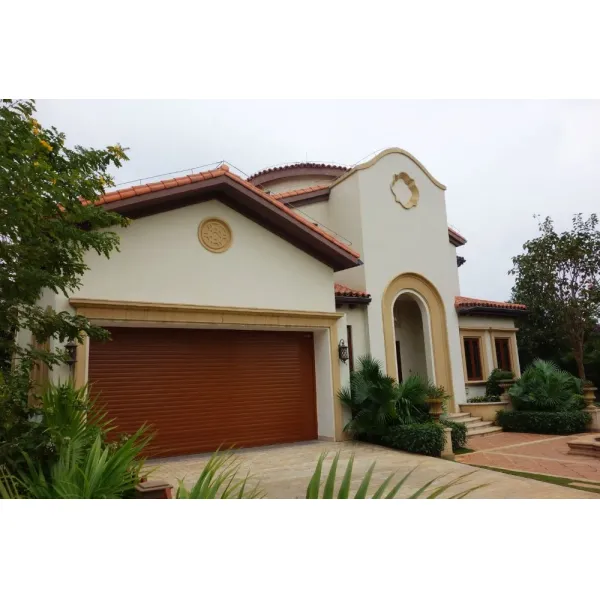

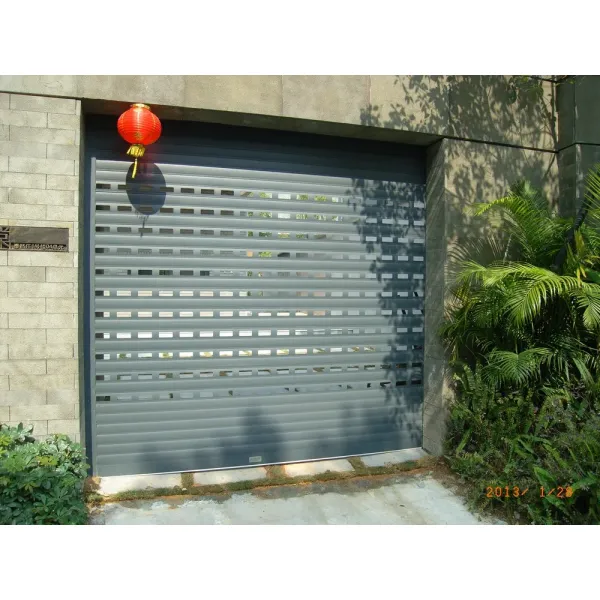

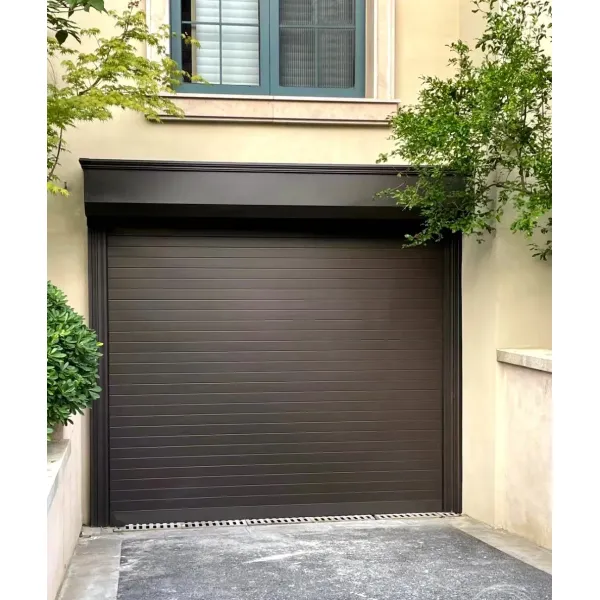

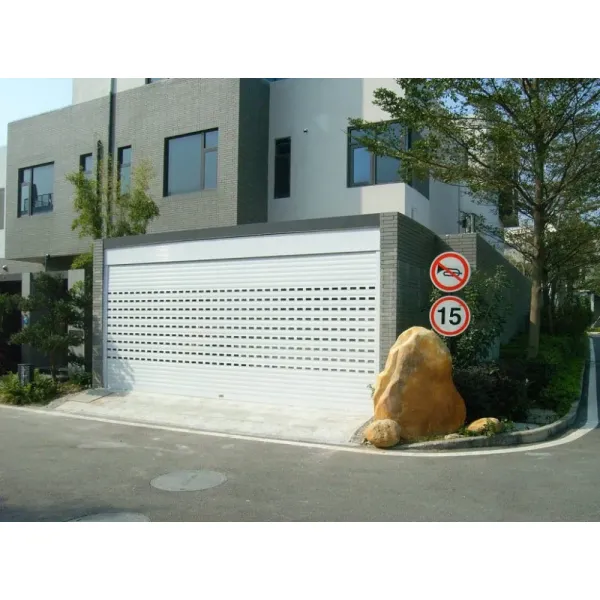

Project photo:

TECHNICAL SPECIFICATIONS

Item number	Max width	Max height	Color	Operation way	Options
SA80-1 +SA80-3	7,200 mm	7,200 mm	any RAL color by powder coating	manual operation, motorized operation	shutter box, safety sensor, UPS, safety brake, video surveillance

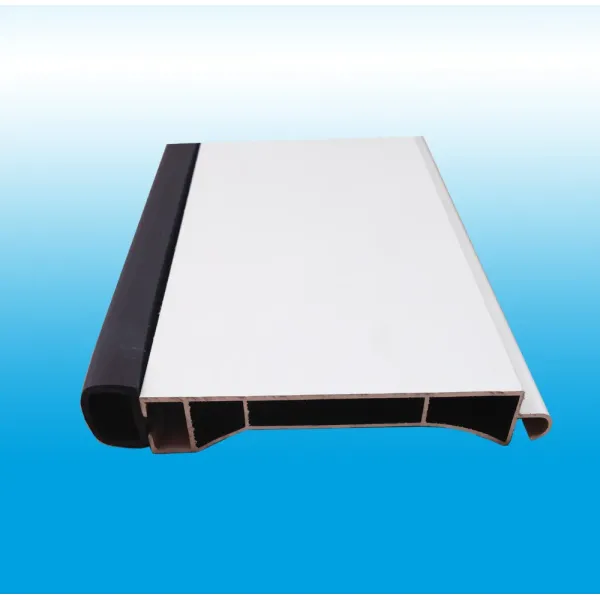

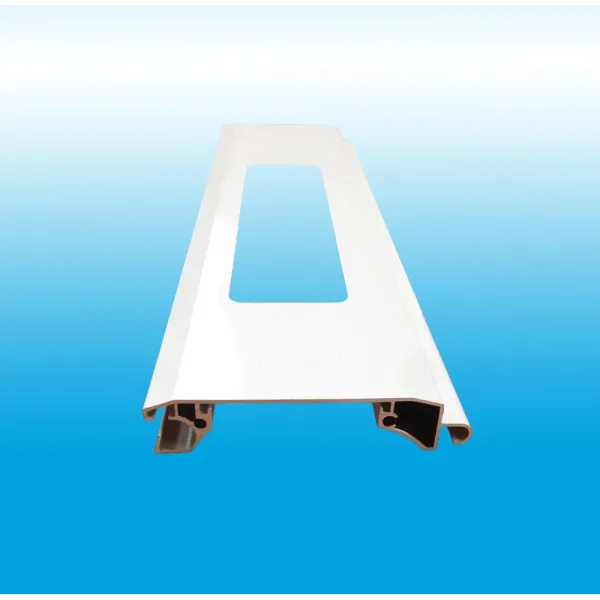

Curtain:
♦Material: single skinned punched aluminum extruded slats+Solid aluminum rolling shutter slats
♦Size: 80 mm width (pitch heihgt)
♦Thickness: 1.2mm / 1.0 mm
♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost

Aluminium Roller Shutter Door, Automatic Aluminum Rolling Shutters, Roll up Shutter Door

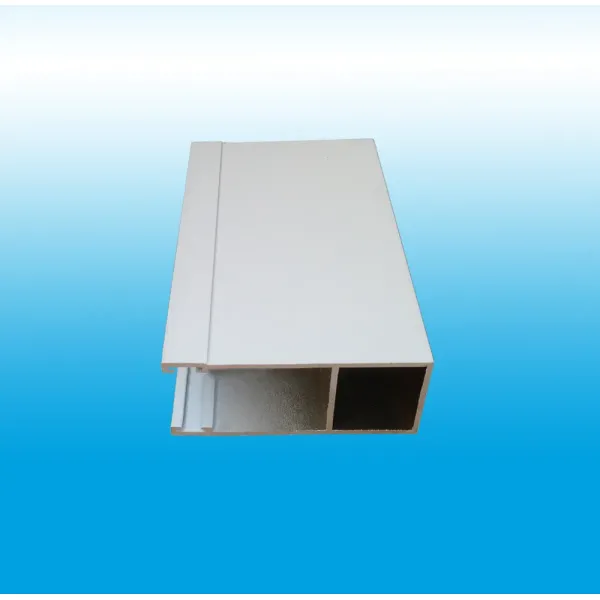

Bottom rail:
♦Material: aluminum
♦With rubber weather seal
♦Max length: 7.2 meters
Aluminium Roller Shutter Door, Automatic Aluminum Rolling Shutters, Roll up Shutter Door

Guide rail:
♦Size: 95*39mm,Width*Depth
♦Thickness: 2.5 mm
♦With brush strip
♦Max length: 7.2 meters
Aluminium Roller Shutter Door, Automatic Aluminum Rolling Shutters, Roll up Shutter Door

Shaft / Axle:
♦Material: galvanized steel
♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm

Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)

Optional:
♦Shutter box / hood cover
♦Wicket door
♦Motor: Tubular motor or side motor motor are available for different size of doors

Feel free to contact us for quotation and we will get back to you asap.

Certification
Aluminium Roller Shutter Door, Automatic Aluminum Rolling Shutters, Roll up Shutter Door

FAQ

What is the delivery time?

A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.

What is your payment items?

A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.

Can we place one or two sets for trial?

A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.

How can I know the price exactly?

A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.

Can I order components instead of the full set of door?

A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.
