Aluminium Alloy Rolling/Roller Shutter Door

Specifications

Model NO. :

SA65

Material :

Aluminum Alloy

Type :

Rolling

Open Style :

Rolling

Opening Type :

With Remote Control

Special Function :

Security

Color :

Any Is Ok

Certification :

CCC, ISO9001, CE

Position :

Exterior

Surface Finishing :

Finished

Curtain Color :

Any Ral Color by Powder Coating

Customized :

Approval

Door Warranty :

5 Years

Motor Warranty :

1 Year

Transport Package :

According to Request

Specification :

65 mm

Trademark :

STARKING

Origin :

Made in China

HS Code :

761010

Production Capacity :

5000 Square Meters/ Month

MOQ :

Price :

53.5

Description

Aluminium Alloy Material Rolling Shutter Door/Roller Shutter Door/Reel Shutter Door

It's an ideal solution for following Applications:
♦ commercial shop
♦ factory
♦ warehouse
♦ residential garage
♦ club bars
♦ etc.
Aluminium Alloy Rolling/Roller Shutter Door

Function:

♦ safety and security
♦ theftproof
♦ heat insulation
♦ weather resistant
♦ rustproof
♦ sound Insulation
Aluminium Alloy Rolling/Roller Shutter Door

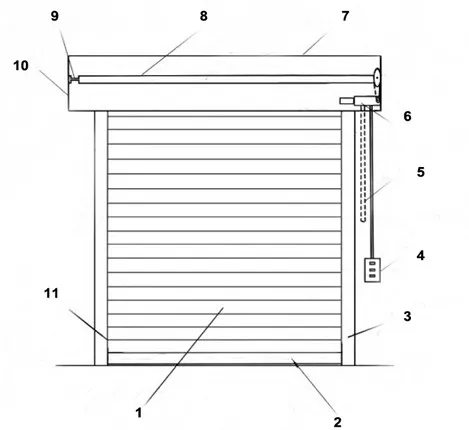

Specifications:
1, Item name: Slat
Width: 65mm
Thickness: 1.2mm
Color: white,beige, custom-made color.
Aluminium Alloy Rolling/Roller Shutter Door

2, Item name: Aluminum bottom rail
Made of extruded aluminum

3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 80*36mm or 90*36mm ,Width*Depth*thickness
With brush strip to make the rolling shutter run more quietly
4, Switch button.
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate, 400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,
Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood),
Made of galvanized steel or aluminum, it's optional.
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter.
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11.End clip
Made of plastic, fixed on both sides of the stainless steel tube, to protect the curtain from lateral moving.
Aluminium Alloy Rolling/Roller Shutter Door

Product Overview
Our **Aluminum Roller Shutter Door** is a high-quality, robust security solution designed for both residential and commercial applications. Crafted from premium-grade aluminum slats, this door offers exceptional durability, weather resistance, and enhanced protection against intrusions. Its sleek, modern design ensures seamless integration with various architectural styles while providing reliable performance.

Key Features:
**Premium Aluminum Construction** - Lightweight yet strong, resistant to rust, corrosion, and extreme weather conditions.
**Enhanced Security** - Interlocking slats and sturdy locking mechanisms deter break-ins and unauthorized access.
**Smooth & Quiet Operation** - Equipped with high-performance rolling mechanisms (manual or motorized options available) for effortless opening and closing.
**Thermal & Noise Insulation** - Improves energy efficiency by reducing heat transfer and external noise.
**Space-Saving Design** - Rolls up compactly, ideal for areas with limited space.
**Customizable Options** - Available in various sizes, colors, and finishes to match your property's aesthetics.
**Low Maintenance** - Requires minimal upkeep due to its durable aluminum build.

Applications:
**Commercial:** Retail stores, warehouses, garages, offices, and industrial facilities.
**Residential:** Homes, apartment buildings, and gated communities.

Technical Specifications:

Material	High-strength aluminum slats
Thickness	0.8mm - 1.2mm (customizable)
Operation	Manual crank / Electric motor (optional)
Finish	Powder-coated (multiple color options)
Wind Resistance	Up to [X] mph (depending on model)
Fire Resistance	Optional fire-rated variants available

Why Choose Our Aluminum Roller Shutter Door?
- **Long-lasting performance** with minimal wear and tear.
- **Superior security** compared to traditional doors.
- **Weatherproof** - withstands rain, wind, and UV exposure.
- **Aesthetic appeal** with a sleek, modern look.
- **Easy installation** with professional support available.
