77mm Energy Saving Foam Filled Aluminum Roller Shutter Door with Polyurethane Foam Insulation

Specifications

Certification :

CCC, ISO9001, CE

MOQ :

Model NO. :

SAI 77

Material :

Aluminum Alloy

Slat Width :

77mm

Slat Thickness :

0.45 mm

Slat Type :

Polyurethane foam filled

Foam Density :

60 KG/CBM

Weight per sq.m :

4.68 KG/sq.m

Max Dimensions :

6000*4500 mm

Guide Rail Dimensions :

80*36mm or 90*36mm

Motor Options :

400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG or 60N,80N,120N,140N,230N,300N

Motor Voltage/Frequency :

220V/50Hz, 380V/50Hz, 110V/60Hz or 230V/50Hz, 120V/60Hz

Shaft Diameter :

3 inches, 5 inches, 6 inches, 8 inches, 10 inches

Surface Finishing :

Powder coating

Standard Color :

White

Opening Type :

With Remote Control

Description

Energy saving Foam filled aluminum slat roller shutter

Product Destription
The aluminum roller shutter door is built to withstand the test of time, incorporating high-quality materials and cutting-edge technology. With its robust construction, it offers unparalleled resistance against break-ins, keeping your property safe from potential intruders. Made from durable aluminum, these doors are both lightweight and strong, ensuring optimum protection without compromising on style.

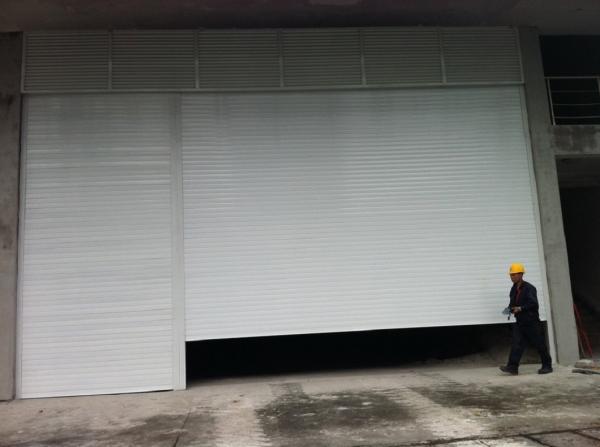

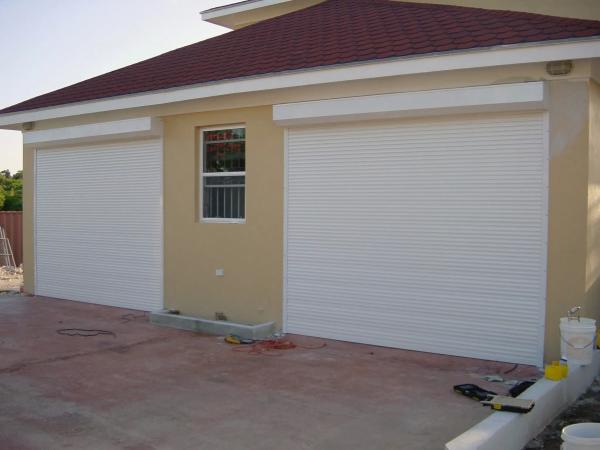

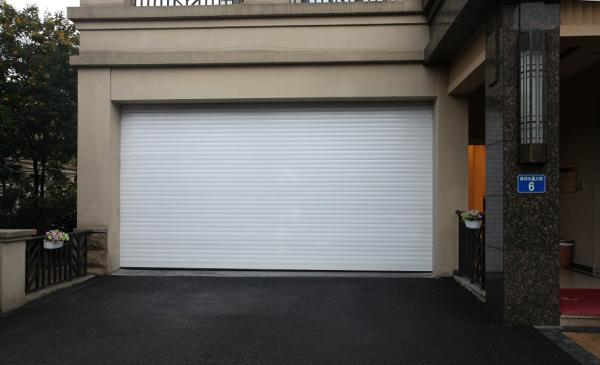

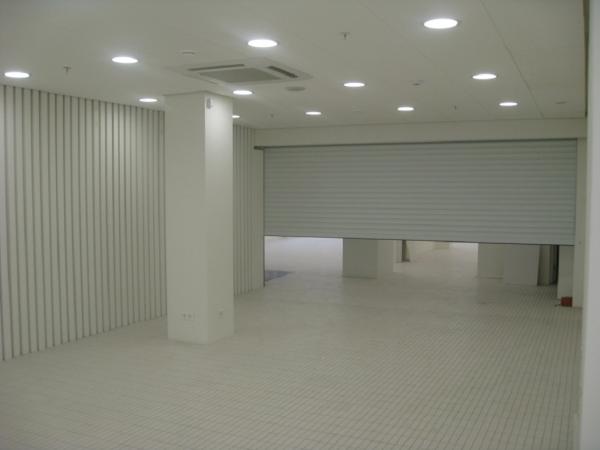

Applications

It's ideal solution for following Applications:
1. commercial shop
2. factory
3. warehouse
4. residential garage
5. club bars

Functions

safety and security, theftproof, heat insulation, weather resistant, rustproof, sound Insulation

Specifications
1,

Item name	Slat
Width	77mm
Thickness	0.45 mm
Type of slat	With polyurethane foam filled
Foam density	60 KG/ CBM
Weight/sq.m	4.68 KG/ sq.m
Max width*height	6000*4500 mm
Standard Color	white (powder coating), other standard colors are available if meet our MOQ

2, Item name: Aluminum bottom rail
Made of extruded aluminum

3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 80*36mm or 90*36mm ,Width*Depth*thickness
With brush strip to make the rolling shutter run more quietly

4, Switch button.
Switch button for operating rolling shutter, with stainless steel cover box

5, Endless chain
The rolling shutter could be opened by endless chain if power off.

6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate, 400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,
Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz

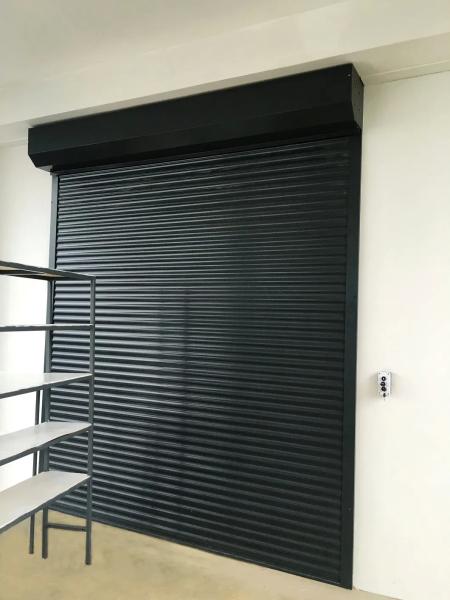

7, Shutter box (hood),
Made of galvanized steel or aluminum, it's optional.

8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.

9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter.

10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.

11.End clip

Made of plastic, fixed on both sides of aluminum slats, to protect the curtain from lateral moving.

Details drawing

Certification

FAQ

What is the delivery time?

A: 20 days for the standard colors and 30 days for the customized. Also it depends on the specifications and quantity each order. Shipment time depends on the location of our customers.

What is your payment items?

A: Normally we accept 30% for deposit by T/T and the balance would be arranged before delivery. If you have any other suggestion, please contact with us.

Can we place one or two sets for trial?

A: Yes of course, this is the better way of quality check. Also if you don't required one whole set, we have small sample in stock as well, it is free of charge, you just need to handle with the freight. It is a good way to show the sincerity for both of us.

How can I know the price exactly?

A: The price is based on your specific requirements, it is better to provide as much as possible information such as color, size, quantity, market location, sales patterns, all of these would be of help us to quote the exact price.

Can I order components instead of the full set of door?

A: Yes, as a factory we welcome business clients purchasing components of the door, such as panels, hardware's, motors, etc., to maximize the advantage of our mutual parties.
