HA80-2 Aluminum Roller Shutter Door 80mm White with Remote Control

Specifications

Certification :

CCC, ISO9001, CE

MOQ :

100

Price :

52.5

Model NO. :

HA80-2

Open Style :

Rolling

Opening Type :

With Remote Control

Special Function :

Security

Surface Finishing :

Finished

Slat Width :

80 mm

Slat Thickness :

1.0mm, 1.2mm

Guide Rail Size :

80*36mm or 90*36mm

Motor Capacity :

400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG

Motor Voltage :

220V/50Hz, 380V/50Hz, 110V/60Hz

Tubular Motor Torque :

60N, 80N, 120N, 140N, 230N, 300N

Shaft Diameter :

3 inches, 5 inches, 6 inches, 8 inches, 10 inches

End Plate Material :

Heavy duty steel

End Clip Material :

Plastic

Bottom Rail Material :

Extruded aluminum

Description

Aluminum Roller Shutter Door------------HA80+HA80-2

It's ideal solution for following applications:
commercial shop
factory
warehouse
residential garage
club bars
etc.

Funtion
safety and security
theftproof
heat insulation
weather resistant
rustproof
sound Insulation

Motorized operation polycarbonate rolling shutter door
HA80-2 Aluminum Roller Shutter Door 80mm White with Remote Control

Specifications

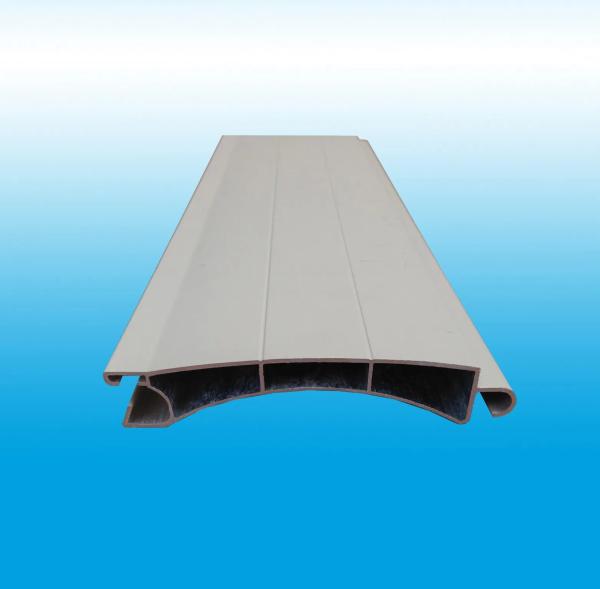

1, Item name: double layer aluminum Slat (HA80)+single layer aluminum Slat (HA80-2)
Width: 80mm
Thickness: 1.0mm, 1.2mm
Standard Color: white,beige, Other RAL color are available if needed.
2, Item name: Aluminum bottom rail
Made of extruded aluminum
3, Item name: Aluminum Guide Rail
Made of heavy duty extruded aluminum "U"guide rail, 80*36mm or 90*36mm ,Width*Depth*thickness, With brush strip to make the rolling shutter run more quietly
4, Switch button
Switch button for operating rolling shutter, with stainless steel cover box
5, Endless chain
The rolling shutter could be opened by endless chain if power off.
6, Rolling shutter motor
Option 1: HOFUL brand side motor, CE certificate,400KG,600KG,800KG,1000KG,1300KG,1500KG,2000KG are available,
Rated voltage / Frequency could be 220V/50Hz, 380V/50Hz, 110V/60Hz
Option 2: DOOYA tubular motor, CE certificate, 60N, 80N, 120N, 140N, 230N, 300N,Rated voltage / Frequency could be 230V/50Hz, 120V/60Hz
7, Shutter box (hood)
Made of galvanized steel or aluminum, it's optional
8, Shaft (barrel)
Made of galvanized steel, 3 inches, 5 inches, 6 inches, 8 inches, 10 inches, it depends on the size of the rolling shutter.
9, Bearing
It's retractable, fixed by welding according to the width of the rolling shutter
10, End plate
Made of heavy duty steel, fixed on both sides of the shaft.
11.End clip
Made of plastic, fixed on both sides of aluminum slats, to protect the curtain from lateral moving

Manual operation aluminum roller shutter is available if needed.

Just give us a call or email us to get more details.
