Specifications
Brand Name :
Gracias
Model Number :
YH-K488/Y488/F488
Place of Origin :
China
MOQ :
One set
Price :
As discuss
Payment Terms :
TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability :
50 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Standard export packaging
Voltage :
220V 50/60Hz
Warranty :
12 months
Condition :
New
After-sales Service Provided :
Online support, Video technical support
System :
PLC
Description

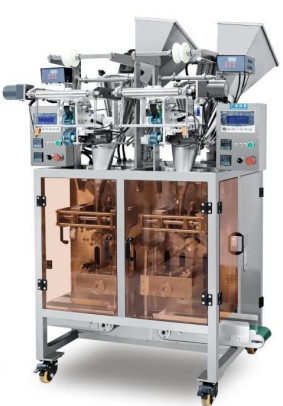

YH-K488/Y488/F488 Liquid/Powder/Granular Packaging Machine

220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder220V 50Hz Granular Packaging Machine 3Kw 4 Sides Yh-K488 Liquid Powder


Applications

  • lt is suitable for automatic packaging of granules, liquid pastes and powder products in cosmetics.food, health care and pharmaceutical industries. The two machines are packaged in parallel, which is suitable for customers with small sites, large production capacity and little investment in the early stage.

Features

1.Two-machine parallel design, large capacity.

2.Customized side seals, back seals,one out two or one out four series according to customer requirements.

3.Material: The contact part of the box and material ismade of sUS304 stainless steel, which is in line with GMP production.

4.The heat-generating parts and moving parts arehidden in the protective cover, which is safe andreliable.

5.The equipment is equipped with casters for easyhandling and movement.

Parameter:

Model number YH-K488 YH-Y488 YH-F488
Filling range 1-50ml 1-50ml 1-50ml
Rows 1by2,1by4 1by2,1by4 1by2,1by4
Sachet size W:30-100mm L:30-170mm W:30-100mm L:30-170mm W:30-100mm L:30-170mm
Max.film width 220mm 220mm 220mm

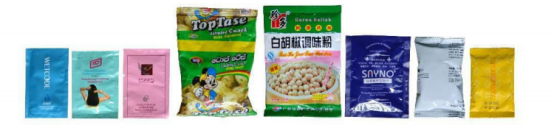

Sachet type 3 sides/4 sides/stick
Filling method volumetric cups Piston pump,magnetic pump Auger screw
Capacity 40-160bags/min PPM 40-150bags/min PPM 40-150bags/min PPM
Power voltage and consumption 220V50-60HZ/3KW 220V50-60HZ/3KW 220V50-60HZ/3KW
Air 0.3m³/min 0.6-0.8Mpa 0.3m³/min 0.6-0.8Mpa 0.3m³/min 0.6-0.8Mpa
Dimension(L*W*H) 1240*763*1655mm 1240*763*1655mm 1240*763*1655mm
Weight 450KG 450KG 450KG
