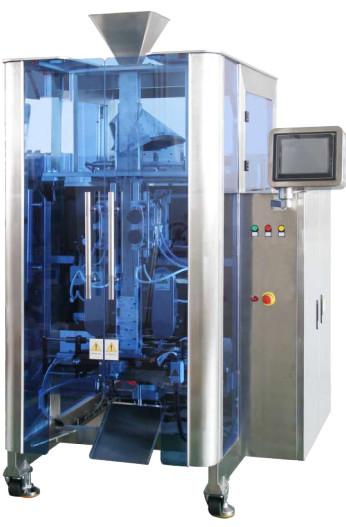

Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor
Yh-T Series Quad Sealpacking Machine 6kw 220v 50hz Plc Pneumatic Servo Motor
Specifications
Brand Name :
Gracias
Model Number :
YH-T
Place of Origin :
China
MOQ :
One set
Price :
As discuss
Payment Terms :
TT50% AS DEPOSIT, REST AMOUNT SHOULD BE PAID BEFORE SHIPPING
Supply Ability :
300 sets per month
Delivery Time :
25-30 work days
Packaging Details :
Standard export packaging
Voltage :
220V/50(60)Hz
Warranty :
12 months
Condition :
New
After-sales Service Provided :
Online support, Video technical support
Use :
using for packing
Material :
ss304
Product type :
Packing machine
Power :
5-6KW
Gas pression :
0.6Mpa
Gas consumption :
0.3-0.7m³/min
Description

YH-T series quad sealpacking machine




Applications:

1.Applicable bag type : Seal type bag.

2.Applicable film materials : A variety of laminated films,single-layer PE film,Film thickness range 0.03mm~0.15mm.

3.Application packing materials:Granule, food & non-foods,such aspotato chips,candy,milk powder,frozen food,pet food,MSG,oatmeal,hardware,juice and souce,etc.


Freature:

1.Attractive standing bag style to satisfy the market demand.

2.lt completes bagging sealing,bottom flat automatically.

3.PLC pneumatic system for vertical and horizontal sealing.

4.Easy to operate,low maintenance.

5.Applicable bag type:the machine can make pillow-type,bag and standing bag according to customer's repuirements.

Parameter:

Model YH-HT5235 YH-ET5235
Film Width 220-520mm 220-520mm
Sealing width 5-10mm 5-10mm
Front surface width 60-190mm 60-190mm
Side surface width 40-110mm 40-110mm
Max film length 350mm 350mm
Packing speed 50bags/min 45bags/min
Film pulling driven servo motor servo motor
Horizontal driven servo motor cylinder
Voltage 6Kw/220V/50(60)Hz 5Kw/220V/50(60)Hz
Gas Pression 0.6Mpa 0.6Mpa
Gas Consumption 0.3m³/min 0.7m³/min
Machine Dimension 1820*1255*1954mm 1820*1255*1954mm
Machine Weight 700kg 680kg
