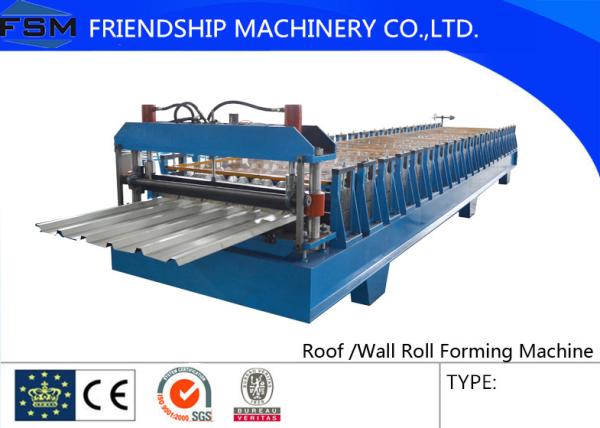

High Speed Roll Forming Machinery , Wall Panel Forming Machine
High Speed Roll Forming Machinery , Wall Panel Forming Machine
Specifications
Place of Origin :
China
Brand Name :
Friendship
Certification :
ISO
MOQ :
One set
Price :
as per client requirements
Packaging Details :
plastic film or wooden case
Delivery Time :
30-60days
Payment Terms :
T/T or LC
Supply Ability :
100 sets per months
Description

High Speed Roll Forming Machinery , Wall Panel Forming Machine

Character of main structure

  • Matrial of coil:Color steel,galvanized steel
  • Thickness of material:1-2.5mm
  • Coil width:600mm
  • The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
  • All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
  • We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
  • It is very easy to install the equipment and suitable for producing in the factory.
  • The machine has features of low noise and high efficiency.

Technical proposal

Name

Item

Specification

Coil requested

Material

Color steel, galvanized steel

Thickness

1-2.5mm

Tensile strength

235Mpa

Coil width

600mm

Decoiler(1 unit)

Type and weight capacity

Manual cantilever decoiler, 3T

Inner diameter

498-508mm

Outer diameter

Max:1800mm

Rollforming machine

(1 unit)

Rolling speed

15m/min

Motor

8KW, 3phase, 50Hz, 380V

Rolling step

22

Driving system

Chain transmission

Structure of machine body

Entire wall steel structure

Material of roller

45# steel, chromed thickness0.05mm

Diameter of shaft

75mm

Dimession

Abt.9m*1.2m*1.6m

Weight

Abt.9T

Electric control cabinet(1 unit)

Main component

PLC, frequency convertor, touching screen, encoder

Cutting and length measurement

Automatic stop to cut, encoder

Brand

From Japan, can be chosen by client

Hydraulic station (1 unit)

Power and strength

3KW, 16Mpa

Cutting machine(1 unit)

Material of blade

GCr12 mov steel, heatment and hardness up to HRC58-62

Cutting type

Hydraulic cutting

Run out table(1 unit)including 4pics

Size

1.3m*1m*1.2M

Technical proposal

High Speed Roll Forming Machinery , Wall Panel Forming MachineHigh Speed Roll Forming Machinery , Wall Panel Forming Machine

For more information, feel free to contact with us.

Skype:vivian_866

Mobile:86-15261519246

E-mail:sales02@roll-formingmachinery.com

vivianlucky866@gmail.com
