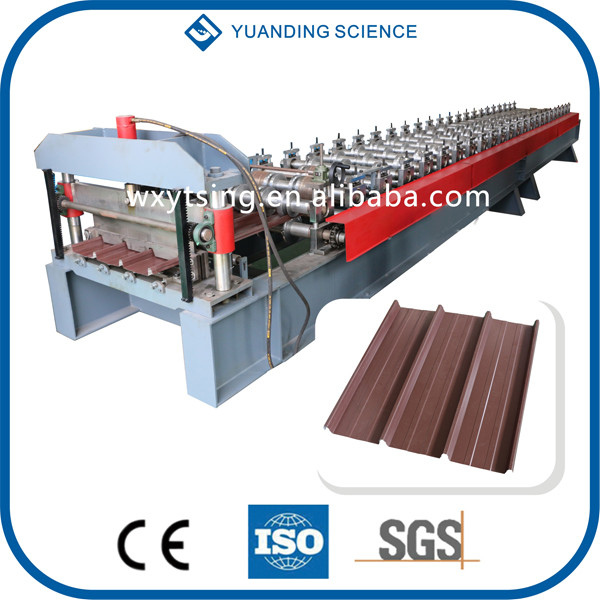

YTSING-YD-00080 Passed CE and ISO Roof and Wall Panel Roll Forming Machine
YTSING-YD-00080 Passed CE and ISO Roof and Wall Panel Roll Forming Machine
Specifications
Place of Origin :
China
Brand Name :
YTSING
Certification :
CE& ISO
Model Number :
YD-00080
MOQ :
one
Packaging Details :
Seaworthy
Delivery Time :
Within 70 days after receiving 30% down payment
Payment Terms :
30% paid by TT in advance and balance paid by TT before shipping.
Supply Ability :
10 sets per month
Description

Metal Trapezoid Wall Panel Roll Forming Machine

1.Packing& Delivery:

Packaging Details: Seaworthy Package
Delivery Detail: 70days
2.Specifications:

More professional, economic,high quality metal roofing and wall panel rollformers

Specification
Number of Stations 18 sets
Thickness 0.35-0.8mm
Main Power 5.5KW
Shipment Packing one 40FT container
Forming Speed 12-16mtr./min(Not include shear)
Machine Frame H-BEAM Frame

Technical Data
Productivity Roof and wall panel as the drawing
Man Power Required One operator with one assinstant
Set Up time 15 mins
Working Hours per Day 8 to 16
Line Direction Left to Right While Facing Operator Panel
Overall Machine Length Required 11.0M
Approximate Machine Height 1.6M

Complete Line Consist Of
Passive/Hydraulic Single/Double Uncoiler
Infeeding Applicator
Roll Forming Machine
Hydraulic Stop to Cut
Output Table

We can also design roof and wall panel machine according to your specific profile drawing.

3.Drawing:

4.Flow chart:

5.Pictures of the machine:

6.Packing

7.Core parts:

8.Exposition Information

9.Our company and workshop

10.Our Office and Customer :

11.Certification:

12.Gurantee and After-sale Serive:

  • The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
  • Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
  • Training time: 5 days.
  • Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
  • The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)

13.Contact Us:

  • Contact person: Lily
  • Mobile: +86-159-4055-9060
  • Skype:lily.lv902

Welcome to contact and visit us, waiting for your cooperation sincerely.
