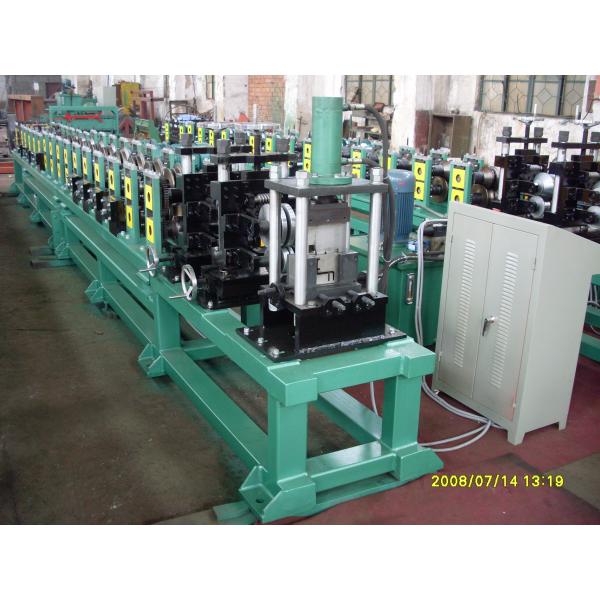

1.2-3.0mm Thickness and Passive / Hydraulic Z Purlin Roll Forming Machine
1.2-3.0mm Thickness and Passive / Hydraulic Z Purlin Roll Forming Machine
1.2-3.0mm Thickness and Passive / Hydraulic Z Purlin Roll Forming Machine
1.2-3.0mm Thickness and Passive / Hydraulic Z Purlin Roll Forming Machine
Specifications
Model Number :
YD-0213
Place of Origin :
China
Brand Name :
YTSING
Certification :
CE
MOQ :
one
Packaging Details :
Seaworthy
Delivery Time :
Within 60-80days after receiving 30% down payment
Payment Terms :
30% paid by TT in advance and balance paid by TT before shipping.
Price :
USD 34000- USD 50000/Set
Supply Ability :
10 sets per month
Description

1.2-3.0mm Thickness and Passive / Hydraulic Z Purlin Roll Forming Machine

Specifications

1.Passed CE certification
2 high strength long life
3.lap convenient light weight
4.high plasticity

Z-Purlin roll forming machine

Number of stations 25 sets
Thickness 1.5-3.0mm
Main power 18.5KW
Shipment packing one 40FT container
Forming speed (including hydraulic shearing) 20m/min(not including punching&Shear )
Machine frame H-BEAM Construction

Complete Line Consist Of
Passive uncoiler
Leveling& infeeding unit
Roll forming machine unit
Hydraulic punching
Hydraulic shear
Output table

Technical Data

Productivity Products as the drawing
Man power required One operator with one assistant
Set up time 15 mins
Working hours per day 8 to 16
Line direction Left to right while facing operator panel
Overall machine length required 13M
Approximate machine height 1.5M

We can also design Z-purlin roll forming machines according to your specific profile drawing.

Layouts:

Wuxi Yuanding Science & Technology Co., Ltd.

Contact person: Lily

Tel: +86-024-8623-4279

Mobile: +86-159-4055-9060

Contact me to get more information

Welcome to contact and visit us, waiting for your cooperation sincerely.
