Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Shelf Bracket Roll Forming Machine Suitable For Light Shelf
Specifications
Brand Name :
BMS
Model Number :
Shelf
Certification :
SGS,CE,ISO9001
Place of Origin :
Xiamen，China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 set per month
Delivery Time :
45 days
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Item No :
YX28-81
Form Speed :
12-16m/min
Weight :
6 T
yield strength :
G245-345Mpa
warranty :
24 months
Shaft diameter :
φ70mm
Cutter :
Cr12MoV
Description

Profile:
Hot Sale Shelf Bracket Roll Forming Machine Suitable for Light Shelf YX28-81

Shelf Bracket Roll Forming Machine Suitable For Light Shelf


Main machine parameter

No Main Item Description
1 Suitable Material Galvanized Steel,Cold Roll Steel
2 Material thickness 1.5-2.0mm
3 Material Yield strength G245-345Mpa
4 Forming station About 12 steps
5 Rolled GCr15 steel
6 Shafts Diameter ф70
7 Hydraulic power 5.5kw
8 Main power 7.5 kw
9 PLC Brand Siemens/Schneider/Delta
10 Touch Screen Siemens
11 Encoder Omron
12 Exit Rack

Unpower, Two-units, with rollers

Work Follow:

Decoiler & Leveling Device→Servo Motor Feeding & Punching Device→Feed Guide Device→Roll Forming System→Hydraulic Post Punching & Cutting Device→Exit Rack
Shelf Bracket Roll Forming Machine Suitable For Light Shelf


Machine Components

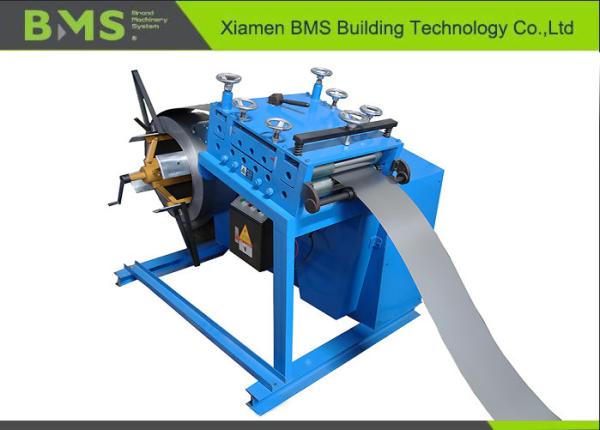

1) Decoiler & Leveling Device: one set
Un-powered, Manually control steel coil inner bore shrinkage and stop Max Feeding width: 600mm,coil ID range 508mm±30mm Capacity: Max. 3 Ton


Shelf Bracket Roll Forming Machine Suitable For Light Shelf




2) Servo Motor Feeding & Punching Device

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

3) Feed Guide Device

The guiding position can be adjusted for suitable material feeding

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

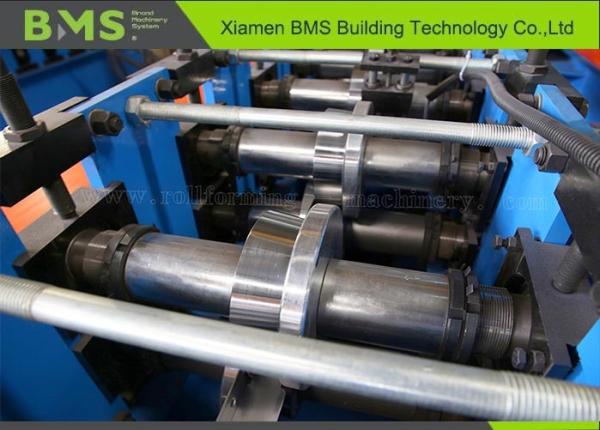

4) Main Machine

Body frame made from H450 type steel by welding
Side wall thickness: Q235 t18mm
Rollers manufactured from GCr15 Steel,CNC lathes,Heat Treatment
Shafts Diameter=ф70mm,precision machined
Gear/Sprocket driving,about 12-step to form
Main Motor(Polaroid brand)=7.5KW,Frequency speed control
Real forming speed:12-16m/min

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

5) Post Hydraulic Cutting Device
Post to cut, stop to cutting,Two pieces type of cutting blade design, no blanking
Hydraulic motor: 5.5KW
Cutting tool material: Cr12MoV(= SKD11 with at least one million times of cutting life), Heat treatment to HRC58-62 degree
The cutting power is provided by the main engine Independent hydraulic station

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

6) PLC Control System

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

7)Exit Rack
Un-powered, Two units,with rollers on it for easy movement.
Control The Quantity And Cutting Length Automatically.
Input The Production Data(Production Batch,pcs,Length,etc.)On The Touch Screen.
It Can Finish The Production Automatically.
Combined With: PLC, Inverter, Touch Screen, Encoder, etc.


Shelf Bracket Roll Forming Machine Suitable For Light Shelf

8)Product Show

Shelf Bracket Roll Forming Machine Suitable For Light Shelf

Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.

Shelf Bracket Roll Forming Machine Suitable For Light Shelf


After-Sale Service
1. The warranty is 24 months after the client receives the machine.Within the 24 months, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories with extra cost.
