12m/Min-15m/Min Standing Seam Roll Former Galvanized Sheet GI
12m/Min-15m/Min Standing Seam Roll Former Galvanized Sheet GI
Specifications
Brand Name :
BMS
Certification :
ISO9001/CE/SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
45DAYS
Packaging Details :
Nude Packing in The Container Container House Cross Beam Roll Forming Machine
Name :
Standing Seam Roll Former
Production Capacity :
12-15m/min
Working material :
galvanized sheet(GI),cold roll steel(CRC)
Yield strength :
235-400MPa
Decoiler :
Manual/Hydraulic for options
Forming station :
25
Output :
about 12-15meters per minute
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Xiamen
Thickness :
2.0-2.5mm
Description

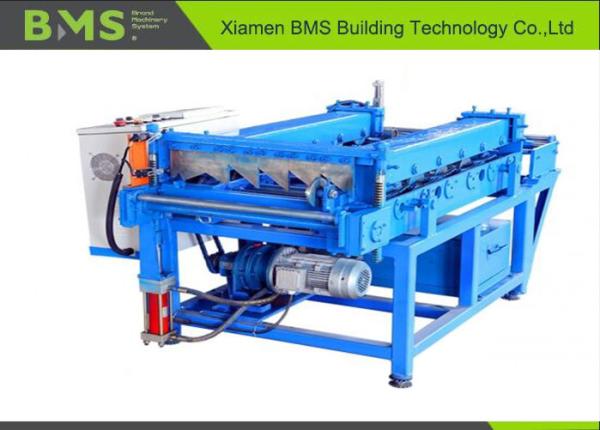

12m/Min-15m/Min Standing Seam Roll Former Galvanized Sheet GI

Process of Standing Seam Roll Former

Uncoiler ----- Molding core ----- Hydraulic System ----- Automatic Control system ----- Step Formed Mechanism -----Automatic Shearing Mechanism ----- Products Receiving Tables

Main Parameters of Standing Seam Roll Former

Working Material Galvanized Sheet(Gi), Cold Roll Steel(CRC)
Main motor power 15KW
Hydraulic power 5.5KW
Material thickness 2.0-2.5mm
Machine Dimension 13.5*1*1.5M
Forming Station 25steps

Components of the machine in this line

1. Uncoiler It support to material uncoil
2. Feeding platform It supports to feed material to the molding machine
3. Main molding parts It supports roll forming the products according to your requirement
4. Control system It controls the machine's operation, such as cutting, speed, etc.
5. Hydraulic system It offers the power for the cutting system
6. Receiving table It used to receive the finished products
