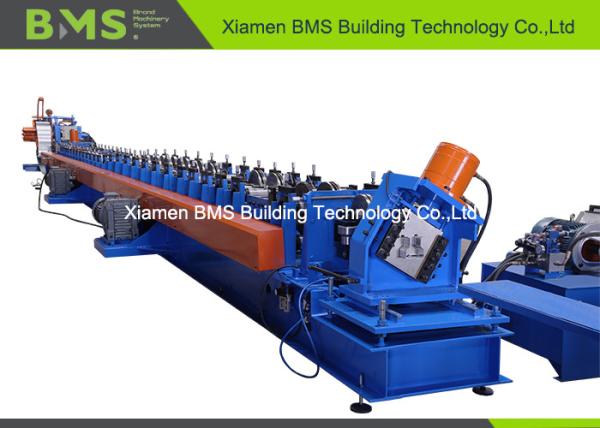

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
Specifications
Brand Name :
BMS
Model Number :
Custom Made
Certification :
ISO9001/SGS/CE
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30set
Delivery Time :
60days
Packaging Details :
Robust and reliable standard export packaging
Use :
Shelf column
Name :
Shelf column forming machine
Cutting blade material :
Cr 12 Mov
Punching :
According to requirements
Raw material :
Low carbon steel,Galvanized steel,Q235,etc
Control system :
PLC(GERMAN Brand)
Description

Custom Made Servo motor drive Storage Shelf Rack Column Roll Forming Machine

Technical parameter:
Material thickness:1.5-2.5mm
Material: Low carbon steel, Galvanized steel, Q235, etc.
Coil width:240mm.
Working speed:6~10M/Min.
Motor:15KW+4KW+3KW+7.5KW+2.2KW+3KW；
Weight:17000kg；

Dimension:24000 x 1500 x 2000mm

Decoiler parameter:

Power:unpower or Hydraulic with press arm

Weight:3Tons

Max. feeding width: 500mm, coil ID range 508mm±30mm

Structure Independent Free Stander Structure
Main manufacture material Roller made for GCr15, the shaft made for 45#steel, the machine base frame made for A3 Whole Welded steel plate
Craft Heat treatment, CNC Precision, Quenching, and tempering,Hard chrome plating

Leveling/servo feeding / pre-puching equipment:

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column

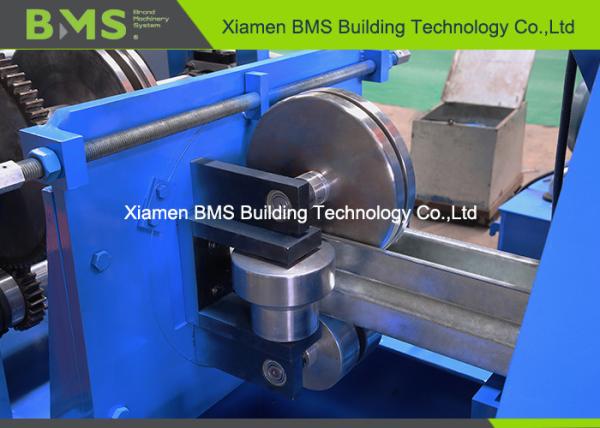

Roller Forming Parts:

Servo Motor Drive Metal Stud And Track Roll Forming Machine To Storage Shelf Rack Column
