PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
PPGI / GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers
Specifications
Payment Terms :
L/C, D/P, T/T
Brand Name :
Brand Forming Machinery
Model Number :
Floor decking
Certification :
SGS,CE,ISO9001
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Supply Ability :
25set/month
Delivery Time :
35days
Packaging Details :
Nude packing but with waterproof.
Condition :
New
Raw material :
PPGI, GI
Forming speed :
10-15m/min
Roll station :
20 stations
Hydraulic power :
5.5KW
Main power :
11*2KW
Cutting material :
Cr12 mold steel
HS Code :
8455220000
Description

PPGI, GI Double Steel Deck Roll Forming Machine With Bearing Steel GCr15 Rollers

Material
Material Thickness(&):0.8-1.5mm/0.7-1.2mm
Applicable material: PPGI, GI, yield strength 245Mpa or 550Mpa
Machine Components
1)7Ton Hydraulic Decoiler: one set
Max. feeding width: 1250mm, coil ID range 470mm±30mm

Capacity: Max. 7Ton Power:3KW
2) Cold Rolling Mills:
Rollers manufactured from bearing steel GCr15, precision machined, hard Chrome Coated with thickness 0.04mm(for longer life and anti-rust) ;
Motor Driving, Gear chain transmission, 20 forming stations, Forming speed10-15m/min
Main Motor=11KW*2,Frequency speed control

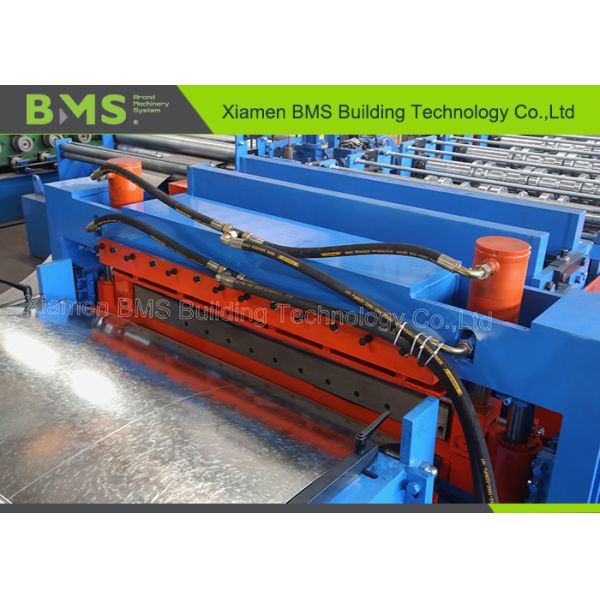

3)Hydraulic Cutting device
Hydraulic motor: 3KW, Hydraulic pressure range: 0-16Mpa
Cutting tool material: Cr12 mold steel, Heat treatment
4)PLC Control System(Touch screen brand: Schneider(French Brand), Inverter brand, Encoder brand: Japan Koyo)
Control the quantity and cutting length automatically
Combined with: PLC(Schneider/Siemens/Delta), Inverter, Touch Screen, Encoder, etc
Cut-to-length tolerance≤±1mm
Control Voltage 24V
5) Exit Rack Un-powered, three units
