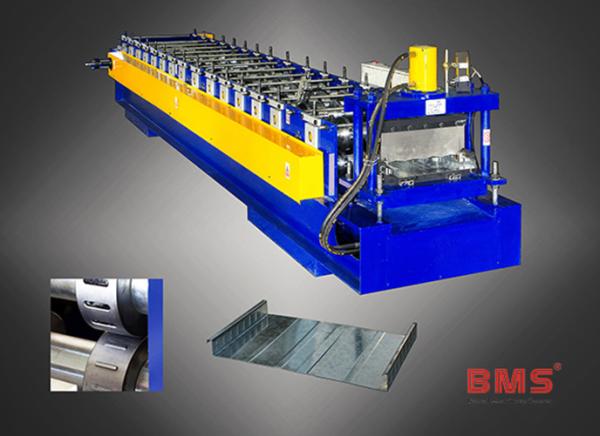

CE Certification Metal Deck Roll Forming Machine YX50-460 Type For Galvanized Steel
CE Certification Metal Deck Roll Forming Machine YX50-460 Type For Galvanized Steel
CE Certification Metal Deck Roll Forming Machine YX50-460 Type For Galvanized Steel
CE Certification Metal Deck Roll Forming Machine YX50-460 Type For Galvanized Steel
Specifications
Brand Name :
BMS
Model Number :
YX50-460Type
Certification :
SGS/CE
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T
Supply Ability :
70set
Delivery Time :
80Days
Packaging Details :
Naked and Covered by Plastic Film Into Container
Raw material :
Galvanized Sheet
Warranty :
1 Year
Use :
Floor
Shaft material :
45# steel with quenched
Control system :
PLC(imported Brand)
Raw material thickness :
0.8-1.5 mm
Description

CE Certification Metal Deck Roll Forming Machine YX50-460 Type Galvanized Steel

Advantage of Floor bearing plate

It can be used as permanent formwork, which is convenient for construction and can effectively shorten the construction period and reduce the cost.

1. Rush time, able to produce and transport a large number of molded steel plates to the site in a short time;

2. The service is in place, and the design and production are arranged according to different areas with good quality and quantity in strict accordance with site requirements to ensure the completion of the project on time.

3. Superior mechanical properties, as a composite floor, can play the role of all or part of the plate bottom force reinforcement.

4. Flat bottom and even small pointing seam make the bottom very beautiful.

5. Reduce the amount of concrete and steel. To reduce the permanent load of the structure, it is more widely used in the high-rise or super high-rise.

Machine Main specification

Material Thickness:0.6-1.5 mm

Coil width:914-1450 mm

Material Strength: G550

Length Tolerance:± 2.0 mm

Control System: PLC Touch Screen

Forming Station:10step

Cutting: Hydraulic Cutting

Power:10 KW+3KW

Rolling speed:14-16 m/min

Machine Weight:12tons

Working Step

Working schedule: Decoiler------Guiding ------Main forming machine-----Hydraulic cutting device-------Exit Table----PLC Control system

PLC Control System

Control the quantity & cutting length automatically
PLC (Schneider), Touch Screen (Schneider), Encoder (Omron), etc
Cut-to-length tolerance≤±2mm
Controller with forward/backward/emergency stop buttons
Un-powered, 2 units

Sample

CE Certification Metal Deck Roll Forming Machine YX50-460 Type For Galvanized Steel
