Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Specifications
Brand Name :
BMS
Model Number :
C120-200
Certification :
CE
MOQ :
1 Set
Price :
USD 32000/Set
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
After-sales Service Provided :
Engineers available to service machinery overseas
Thickness :
0.8-2.0mm
Decoiler :
Manual/Hydraulic decoiler for option
Roller material :
GCr15
Forming station :
14 steps
Forming Speed :
18m/min
Weight :
about 10T
Cutter :
Cr12
Housing :
H350
Shaft diameter :
φ75mm
Description

Thickness 0 . 8 - 2 . 0mm Cutter Cr12 C Purlin Forming Machine

Parameter

Item Parameters
1 Type C120-200
2 Thickness 0.8-2.0mm
3 Forming Speed 18m/min
4 Forming station 14 steps
5 Main motor 11KW
6 Color Green+orange
7 Shaft diameters 45# steel
8 Color Green+orange

Main features

The advantages of single size C purlin roll forming machine are as follows:
1.Stable
2.Beautiful appearance
3.Easy operation, low maintenance cost

Decoiler


Manual Decoiler: one set
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 500mm, coil ID range 470mm±30mm
Capacity: Max. 3Ton
With 3 tons hydraulic decoiler for option

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

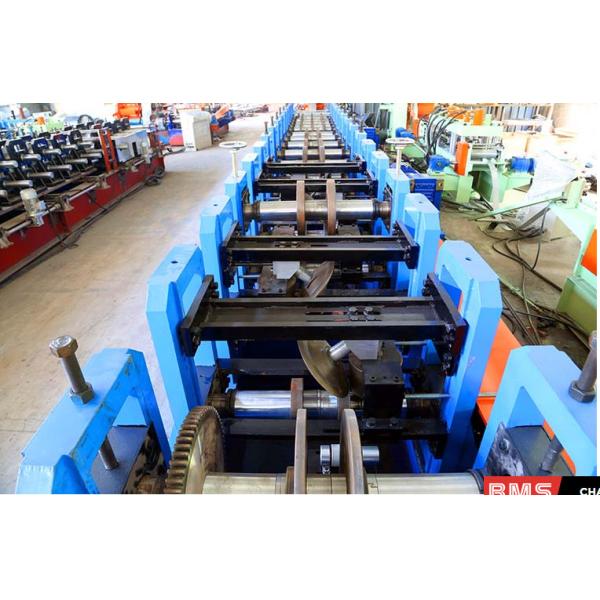

Main Machine

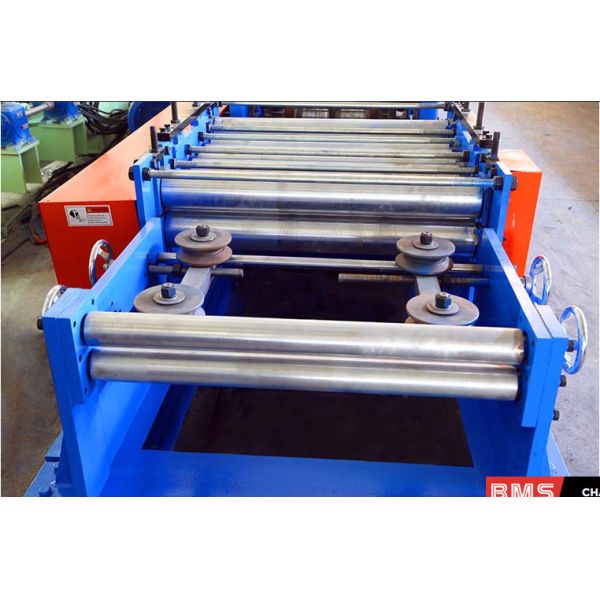

C purlin machine feeding guide and leveling device

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
Rollers manufactured from high quality bearing steel GCr15, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 350# H type steel by welding

Suitable for material with thickness 0.8-2.0 mm
Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined
Motor driving,Gear chain transmission, 14 rollers to form
Main motor=11KW , Frequency speed control. Forming speed approx.18m/min

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

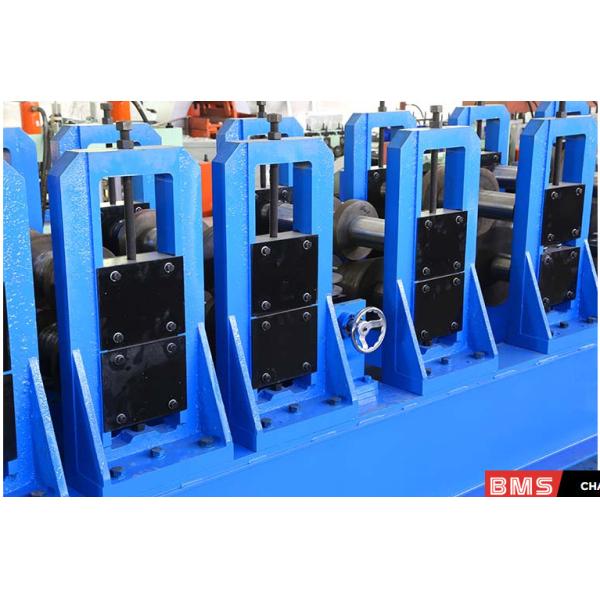

C Purlin machine free standing structure

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

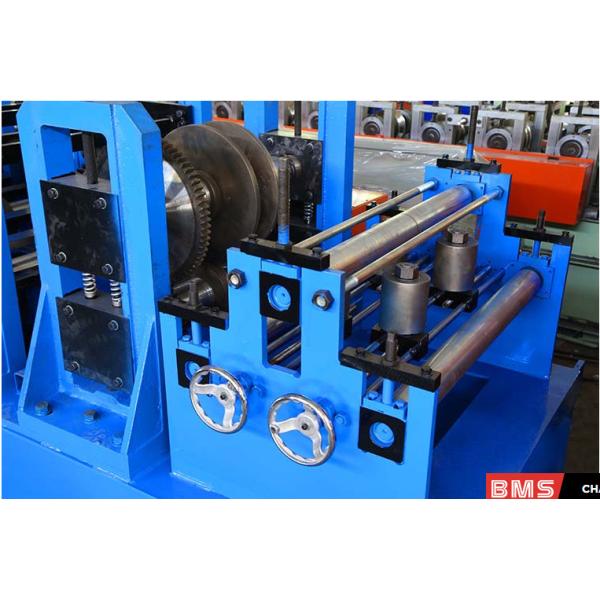

C purlin machine straightening device

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

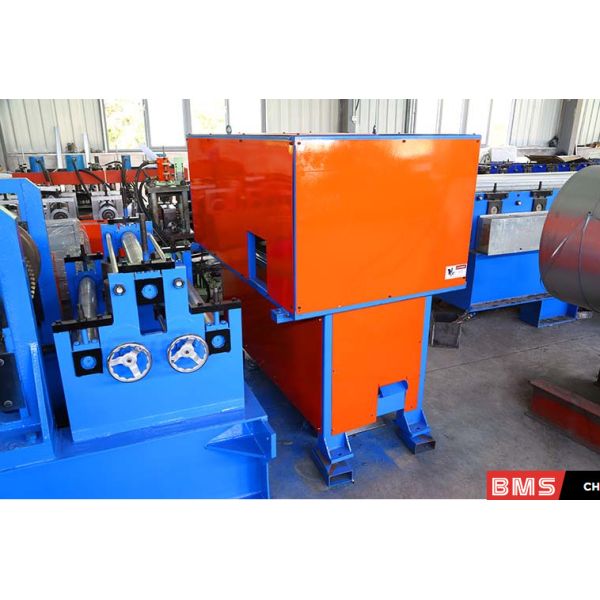

C purlin machine sawing cutting

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

Exit Rack

Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter

PLC Control System

PLC Control System (Touch screenbrand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,Encoder brand:Japan Koyo/OMRON)
Control the quantity and cutting length automatically.Input the production date(production batch,Pcs,length,etc.)on the touch screen.
It can finish the production automaticlly Combined with: Plc. Inverter. Touch Screen. Encoder. etc
Cut-to-length tolerance≤±2mm
Control Voltage24V
Packing Style

Packing method: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container
and steadily fixed in container suitable by steel rope and lock, suitable for long-distance transportation.
Thickness 0.8 2.0mm C Purlin Roll Former With Cr12 Cutter
After-sale service
1. The warranty is two years after the client receives the machine Within two years, we will courier the replacement parts to the client free of charg.
2. We offer technical support for the entire life of our machine .
3. We can send our technicians to install and train the workers in the clients factories with extra cost.
Terms of trade

1. Minimum order quantity (MoQ): 1

2. Delivery time: about 45 workdays

3. Port of loading: port of Xiamen

4. Type of payment: by T/T or by L/C

5. Export: to more than 50 countries and regions,including Taiwan,UK, France,Singapore,Greece,Australia,USA,Mexico,Brazil,Chile, Bolivia, Trinidad,Israel,Saudi Arabia,etc.
