7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
Specifications
Brand Name :
BMS
Model Number :
YX18-840
Certification :
CE/SGS/ISO9001
Place of Origin :
Xiamen,China
MOQ :
1 Set
Price :
Negotiate
Payment Terms :
L/C, T/T
Supply Ability :
30set/month
Delivery Time :
45days
Packaging Details :
The main machine is directly loaded into the container, and the electrical components are wrapped with plastic film.
Dimension(L*W*H) :
9000*1500*1500
Decoiler :
Manual/Hydraulic decoiler for option
Side wall thickness :
18mm
Housing :
H400 beam
Shaft :
75mm
Cutter material :
Cr.12
Forming station :
20 steps
Voltage :
AC 3-380V/415V/440V
Description

7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations

1. Technical Parameter

Suitable Material Material GI, PPGI
Thickness 0.3-0.8mm
Material of rollers High grade 45# forged steel, surface hard chromium plating
Yield strength
245-550Mpa
Material of shafts High grade 45# forged steel
Diameter of shafts 75mm
Material of cutting blade Cr12 Heat Treatment
Cutting Mode Hydraulic Guide Column
Speed 18-20 m/min
Use ROOF
Drawing Motor driving, Gear chain transmission
Total power 7.5 kw, Frequency speed control
Voltage 380 V 50 HZ 3 Phase
Key Selling Points 6700mm*1500mm*1500mm
Weight(About) 8.5 tons
Length measurement Encoder
Control mode PLC
Operating mode

Button + Touch screen

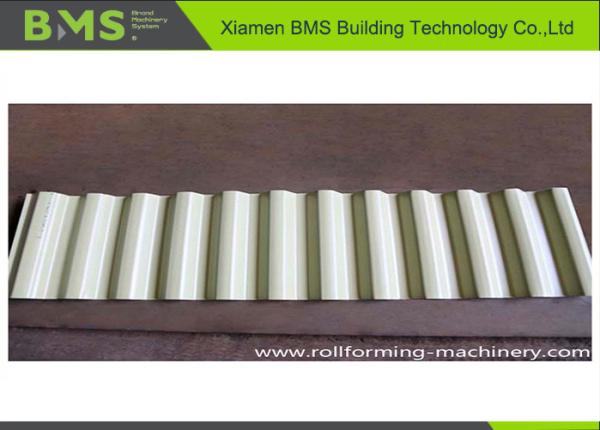

2. Profile Drawing

7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations

3. Main features of YX18-840 roof panel machine

The advantages of roof panel machine are as follows:
1.Able to produce two different profiles.
2.Save space, more convenient.
3.Easy operation, low maintenance cost
4.Stable and durable
5.The warranty of YX18-840 roof panel machine is one year after the cilnet receives the machine. Within the one year, we will courier the replacement parts to clint free of change.
6.We offer technica support for the entire life of our machines.
7.We can send our technicians to install and train th workes in the clients' factories with extra cost.

4. Detailed Images of YX roof panel forming machine

Machine Pars

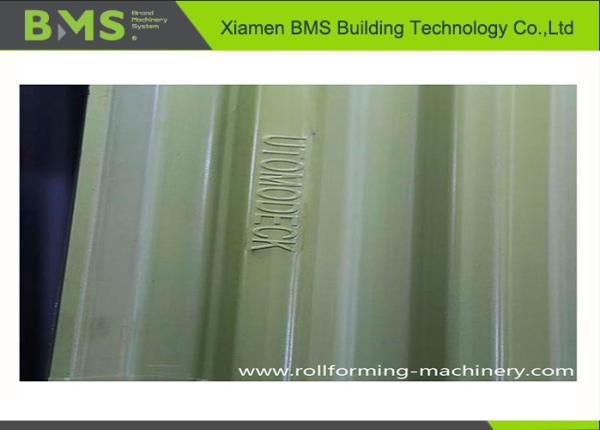

1) YX18-840 roof panel machine loo punching device
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations

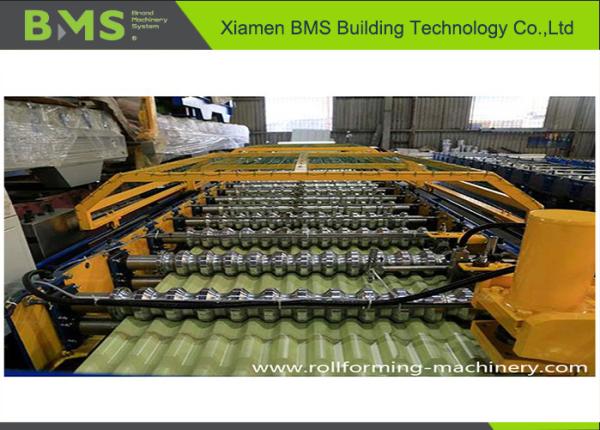

2)YX18-840 roof panel machine rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
With feeding material guide, body framemade from 400# H type steel by wedling

3) YX18-840 roof panel machine post cutter

Made by high quality mold steel Cr12 with heat treatment
Cutter feame made from high quality 20mm steel plate by welding
Hydraulic motor:2.2KW, Hydraulic pressure range:0-16Mpa
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations

4) YX18-840 roof panel machine protective cover

7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
5) YX18-840 roof panel machine decoiler

Manual Decoile: one set
Un-powered, manually control steel coil inner bore shrinkage snd stop
Max.feeding wirdth: 1250mm, coil ID range 47mm±30mm
Capacity: Max.8 Ton
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
With 6 tons hydraulic decoiler for option
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
7.5 KW YX18-840 Roof Panel Roll Forming Machine With 20 Stations
6) PLC Control System
Touch screenbrand:German schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,
Encoder brand:Japan Koyo/OMRON
Combined with:PLC, Inverter, TouchScreen, Encoder, etc
Cut-to lengthtolerance≤±2 mm
Control Voltage 24V
User's munualin English
For the more detail click here to see the video:
http//www.rollforming-machinery.com/Quick-change-Type-C-Purlin-Roll-Forming-Machine_n26
5. Machine Description
Different roof panel machines can produce different shapes of steel roof, wall sheets according to the clients' profile drawings and requirement. Steel roof, wall sheets are new building materials with various thickness and colors.They have many advantages,such as low cost, easy installation.short building period, re-cycle use, beautiful appearance, and are light weight but high strength. They are used as the roof and walls of gymnasiums, airports, theatres, factories. warehouses, garages, exhibition centers, etc.
