3. Main features of YX30-1000 roof panel machine roll forming machine

The advantages of roof panel machine are as follows:

1.Low cost, light weight but high strength, short building period, and re-cycle use

2.Save material ,no waste.

3.Easy operation, low maintenance cost

4.Able to deal with stainless material

4. Detailed Images of YX30-1000 roof panel forming machine

Machine Parts

1) YX30-1000 roof panel machine pre-cutter

Brand: BMS Original: China

With feeding material guide,avoid wasting material

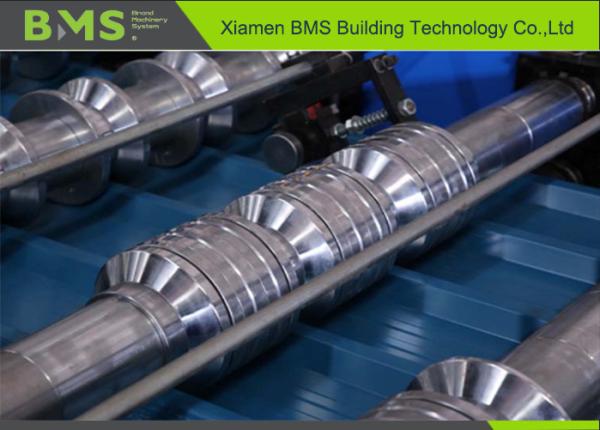

2) YX30-1000 roof panel machine rollers

Brand: BMS Original: China
Body frame made from 350# H type steel by welding

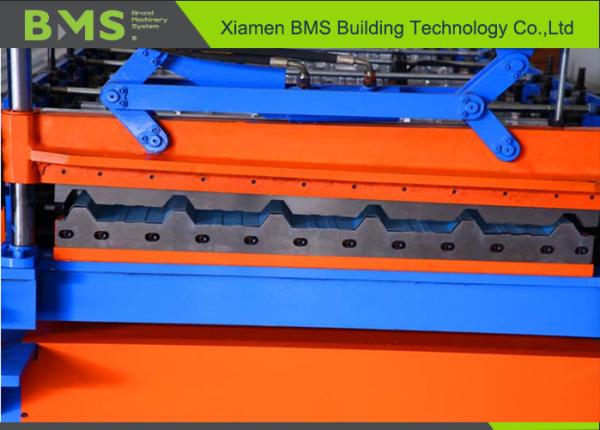

3) YX30-1000 roof panel machine post cutter

Brand: BMS Original: China
Made by high quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding

4) YX30-1000 roof panel machine control cabinet

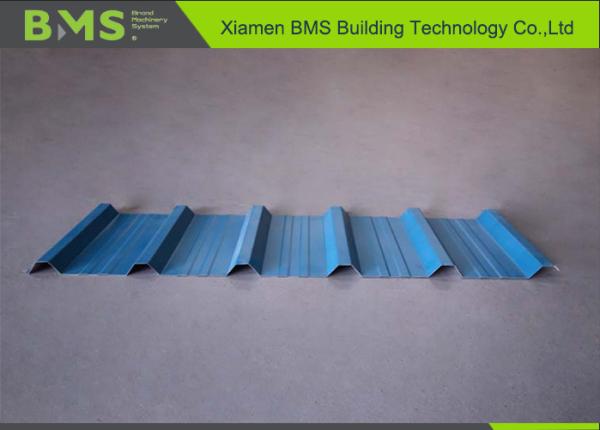

5) The overlap effect of YX30-1000 roof panel

6) YX30-1000 roof panel machine Manual Decoiler

Brand: BMS Original: China
Un-powered,manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton

with 6 tons hydraulic decoiler for option

7) YX30-1000 roof panel machine exit rack

Brand: BMS Original: China
Un-powered,three units

5. Other details of YX30-1000 roof panel roll forming machine

Shafts manufactured from 45#,Main shaft diameter=φ75mm,precision machined

Motor driving,Gear chain transmission, 18 steps to form.

Main motor=5.5KW, Frequency speed control. Forming speed approx.12-15m/min

6. PLC Control System

Touch screen brand:German Schneider Electric/Taiwan WEINVIEW,
Inverter brand:Finland VOCAN/Taiwan DELTA/ALPHA,

Encoder brand:Japan Koyo/OMRON
Combined with: PLC, Inverter, TouchScreen, Encoder, etc
Cut-to-lengthtolerance≤±2 mm
Control Voltage 24V
User's manualin English

7.Advantages

• 1. The structure is simple and the appearance of the machine is beautiful because we adopt the
• 2. shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation when running the machine.
• 3. All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
• 4. We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .It is very easy to install the equipment and suitable for producing in the factory.
• 5. The machine has features of low noise and high efficiency.

6. The warranty of roof panel roll forming machine is one year after the client receives the machine. Within one year, we will courier the replacement parts to the client free of charge.
7.. We offer technical support for the entire life of our machines.
8. We can send our technicians to install and train the workers in the clients' factories with extra cost.
