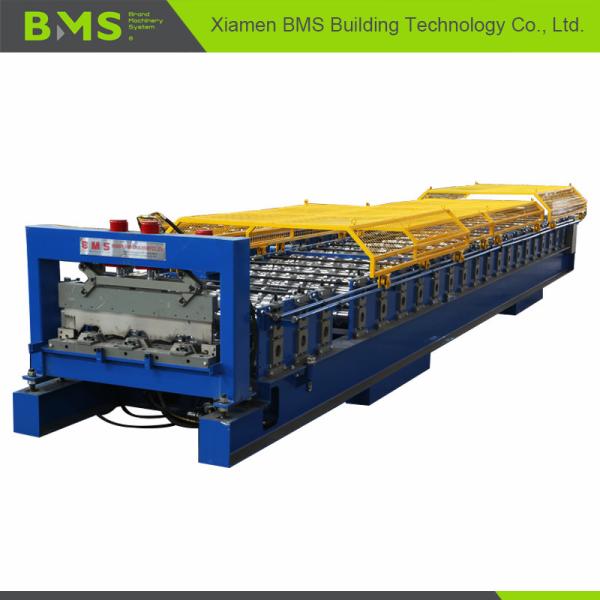

Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute
Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute
Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute
Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute
Specifications
Brand Name :
BMS
Certification :
ISO9001/CE/SGS
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 Set/Sets per Month
Delivery Time :
45DAYS
Packaging Details :
Nude Packing in The Container Suitable for Floor Decking Sheets Roll Forming Machine
Condition :
New
Tile Type :
Steel
Production Capacity :
12-15m/min
Working material :
galvanized sheet(GI),cold roll steel(CRC)
Yield strength :
245-550MPa
Decoiler :
Manual/Hydraulic for options
Housing :
H400 beam
Forming station :
20
Cutter material :
Cr12Mov, Heat treatment
Output :
about 12-15meters per minute
After-sales Service Provided :
Engineers available to service machinery overseas
Port :
Xiamen
Thickness :
0.8-1.5mm
Description

1. Main features of floor decking roll forming machine


The advantages of floor decking machine are as follows:
1. Low cost, lightweight but high strength, short building period, and re-cycle use
2. Save material, no waste.
3. Easy operation, low maintenance cost

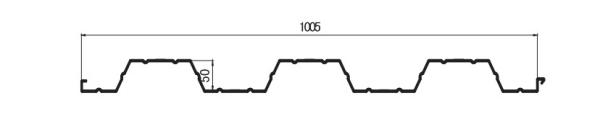

2. Detailed Images of YX50-1005 floor decking forming machine


Machine Parts
1) YX50-1005 floor decking machine logo punching device
Brand: BMS Original: China



2) YX50-1005 floor decking machine rollers
Brand: BMS Original: China
Rollers manufactured from high quality 45# steel, CNC lathes, Heat Treatment.
with black treatment or Hard-Chrome Coating for options.
Body frame made from 400# H type steel by welding
3) YX50-1005 floor decking machine post cutter
Brand: BMS Original: China
Made by high-quality mold steel Cr12 with heat treatment
Cutter frame made from high quality 20mm steel plate by welding

hydraulic motor:18.5KW, Hydraulic pressure range: 0-16Mpa


YX50-1005 floor decking machine decoiler
Brand: BMS Original: China
ManualDecoiler: one set
Un-powered, manually control steel coil inner bore shrinkage and stop
Max. feeding width: 1200mm, coil ID range 508mm±30mm
Capacity: 5-9 Ton

Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute

With 6 tons hydraulic decoiler for option
Steel Floor Deck Roll Forming Machine 20 Station 12-15meters Per Minute
