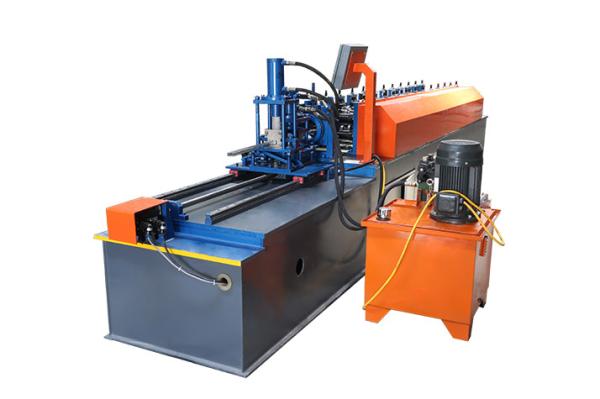

Ceiling Batten Roll Forming Machine 12 Stations With G350-G550Mpa Yield Strength
Ceiling Batten Roll Forming Machine 12 Stations With G350-G550Mpa Yield Strength
Specifications
Brand Name :
BMS
Model Number :
YX21-40
Place of Origin :
Xiamen，China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
30 sets per month
Packaging Details :
Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container and steadily fixed in 1x40GP container suitable for long-distance transportation, spare parts are covered by plastic film.
Delivery Time :
60days
After-sales Service Provided :
Engineers available to service machinery overseas
Working material :
galvanized sheet(GI),cold roll steel(CRC),hot rolled steel(HRC)
Thickness :
0.4-0.6mm
Yield strength :
G350-G550Mpa
Decoiler :
Manual/Hydraulic for options
Housing :
H300 beam
cut-to-length tolerance :
±1mm
Shaft :
55mm
Forming station :
About 12 stations
Cutter material :
Cr12 Tool Steel
Roller material :
First grade 45# steel/GCr15
Description

Ceiling Batten Roll Forming Machine 12 Stations With G350-G550Mpa Yield Strength

TECHNICAL PARAMETERS FOR HOT SALE CEILING BATTEN ROLL FORMING MACHINE

Applicable material: GI/PPGI

Thickness:0.4-0.6MM

Yield strength(Mpa): G245-G350

MACHINE COMPONENTS FOR HOT SALE CEILING BATTEN ROLL FORMING MACHINE
Name
Model/name
Quantity
Technical description
1.Decoiling system
Hydraulic decoiler
1 set
Capacity: Max. 2Ton, hydraulic control steel coil inner bore expanding, shrinkage and stop.
2.Forming machine
Material Guiding System
1 set
For feeding in the right position no Deviation.
Main Roll Forming Machine
1 set
About 12 steps, motor driving, and chain transmission. Wall plate structure.
3.Cutting system
Hydraulic Cutting Device
post cutting, Stop to cut, driven by hydraulic power.
4.Hydraulic system
Hydraulic Station
1 set
Providing the power of cutting.
5.Control system
PLC Control System
1 set
PLC control system, encoder positioning, and cut-to-length automatically, touch screen operating.
6.Racking system
Exit rack
3 PC
no power.

Main performance parameters

Forming speed(M/MIN):12-20m/min

Machine size(L×W×H):6.5*0.8*1.2, Refer to the machine

Power supply(KW):5.5+3.0

Motor and Hydraulic Motor

Main Features

1) We use Taiwan's quality.

2) Adopting advanced world famous brand components in computer parts. Like Siemens, Schneider, Sony, etc...

3) Running in a high automatization and intellectualization, no pollution.
