TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01
TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01
TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01
TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01
Specifications
Brand Name :
QRL
Model Number :
TR131305 R
Certification :
ISO9001/2000
Place of Origin :
CHINA
MOQ :
10
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P
Supply Ability :
10000
Delivery Time :
10-16 Working
Packaging Details :
Carton/woven bag
Type :
Taper Roller Bearing
Inch :
65X130X51/39
Number of row :
MH043042
Payment Terms: :
D/D, CASH, D/P
Cage Material :
ISO9001:2008 Standard
Material: :
Chrome steel,Gcr15
Brand Name: :
QRL
Weight :
3.99 kg/pcs
Description

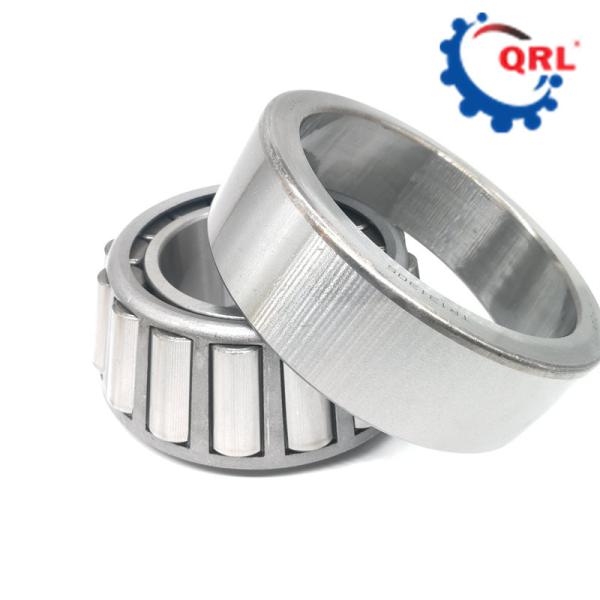

Tapered Roller Bearing, TR131305 R 65X130X51/39 MITSUBISHI FUSO MH043042 65KW01

Tapered Roller Bearing Specification

Inner diameter, mm 65
External diameter, mm 130
Height, mm 39
Height of the thrust part of the larger ring, mm 51
Bearing brand 65KB13
Analog GOST-ISO MH043042
Possible replacement TR131305 KOYO. 65KB13 Nachi. 65KW01 NSK


Taper Roller Bearing Description

Tapered roller bearings are used in a variety of industrial applications. The tapered rollers allow the bearings to accommodate heavy radial, axial and combination loads. This loading flexibility combined with a variety of configurations can be designed from single cups, double cups, and cones. This is why tapered roller bearings are designed into almost every industry, particularly large diameter tapered roller bearings.

Product number

Part No. BOUNDARY DIMENSIONS (in m.m.) LOAD RATING LIMITING SPEED (R.P.M.) MASS
d D B C T STATIC (Co) KN DYNAMIC (C) KN Grease Oil (~ Kg.)
72212 / 72487 53.975 123.825 32.791 25.4 36.512 165 145 2850 4000 2.03
JW 5549/JW5510 55 115 31 23.5 34 161.9 126 3000 4000 1.558
387 / 382 57.15 98.425 21.945 17.825 21 102 80.9 3800 5000 0.63
462 A / 453 X 57.15 104.775 29.317 24.605 30.162 148 115 3500 4700 1.05
39580 / 39520 57.15 112.712 30.162 23.812 30.162 204.2 144 3200 4300 1.44
39581/39520 57.15 112.712 30.162 23.812 30.162 204.2 144 3200 4300 1.4
78225C / 78551 57.15 140.03 33.236 23.52 36.513 211.7 170.9 2600 3400 2.69
JF 6049 / JF6010 (T 2EE 060) 60 115 39 33 40 260.3 194.1 3200 4300 1.85
392/394A 61.913 111 21.996 18.824 22 113.7 85.3 3200 4300 0.87
L 910349 / L 910310 63.485 94.975 15.5 12 17 56.6 38.4 3600 4800 0.375
395/394A 63.5 110 21.996 18.824 22 113.7 85.3 3200 4300 0.81
3982X 3927 XSXI 63.5 110 30.048 23.02 29.37 174.7 118.9 4000 5300 1.1



Taper Roller Bearings Applications

1. material: chrome steel (GCR-15), bearing steel
2. size: 40*80mm
3. packing: single box
4. shipping: by sea, by air, by railways
5. payment term: T/T, L/C, Western union and so on
6. delivery time: 3-30 days after order confirmed (according to the quantity)

TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01TR131305 R 65X130X51/39 Tapered Roller Bearing MITSUBISHI FUSO MH043042 65KW01
