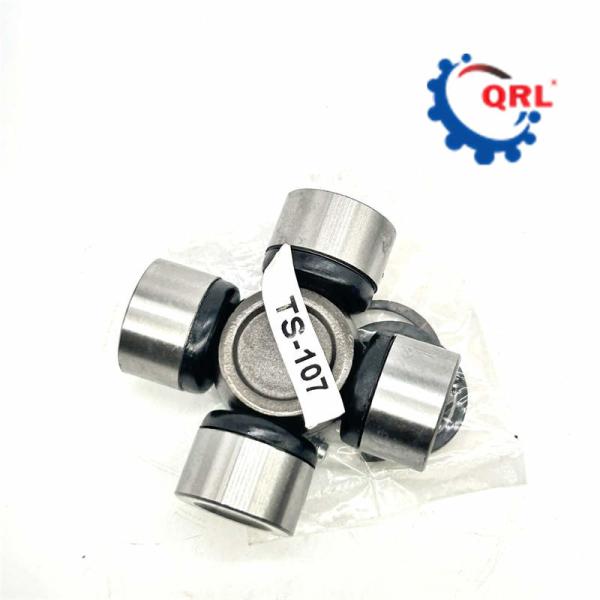

Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107
Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107
Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107
Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107
Specifications
Brand Name :
QRL
Model Number :
TS-107
Certification :
ISO9001
Place of Origin :
CHINA
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
3000pcs
Delivery Time :
10 days
Packaging Details :
Oem/Neutral
Type: :
Universal Joint Beairng
NO: :
TS-107
Oem :
according to your drawings
Size :
27200-83010
Name: :
Needle
Operating Angle :
Standard
Application :
FOR Suzuki
Weight :
1 KG
Description
Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010/. 25x63.9 TS107
Universal Joint Bearing Specification

  1. Suzuki Escudo TA01R TA01V TA01W TA02W TA11W TA31W TA51W TA52W TD01W TD02W TD11W TD31W
  2. Suzuki Grand Vitara XL-7, TX83V, TX92V, TY92V
  3. Suzuki Jimny JA11C JA11V JA12C JA12V JA12W JA22W JA71C JA71V JB23W JB31W JB32W JB43W
  4. Suzuki Vitara, A01c0, A01V0, SJJ6C, SJV6C, TA01C, TA01V, TA02C, TA02V, TA51C, TC01C, TC02C, TD01V, TE01V, TE01V, TV02V, TE211V, TV01C, TVA, TV01V, TVET, TVET, TVET, TVE 03c, TV03V , TV04C, TV04V, TW01V, TW04C, TW04V
  5. Suzuki X-90, LB11S
Universal Joint Bearing Description
Structure Universal joint consists of spider(cross) and 4 grease-filled roller bearings. It can transmit large torque at low friction. Spider with journal pegs and bearing cases as outer ring were hot forged or cold formed and machined. They are later carburized in furnace so that increased ruggedness and wear resistance are obtained. Parts are finally ground to designed size under severe tolerance. Oil seal as well as dust cover are also in use to protect internal journal area from intrusion of foreign material. Variety of grades and materials are selected to respond to extreme conditions such as very hot / very cold temperatures.
Universal Joint Bearing Product number
HINO
NO. FIG ORIGINAL NO. GMB NO. ASSY SIZE SNAP NET GROSS
φ(D) (O) (L) RINGS WEIGHT WEIGHT
m/m m/m m/m
QRL-60 C 37401-1172 40 115.6 2.3×43.0 1560 1600
QRL-61 J 9-953-3401-01 GUH-61 47 124 PLATE 2640 2700
QRL-62 J 3-303-3403-01 GUH-62 47 138 PLATE 3060 3150
QRL-63 C 3-331-3403-01 GUH-63 35.01 99 1.5×38.0 1100 1140
QRL-64 J 3-302-3403-06 GUH-64 50 159 PLATE 4320 4410
QRL-65 C 3-445-3403-04 GUH-65 36 110.3 1.5×39.0 1320 1360
QRL-66 C 6041-8409-00 GUH-66 23.82 66 1.5×27.0 310 320
QRL-67 M 3301-3403-01 GUH-67 49.2 148.38 3900 4000
QRL-68 K 04037-4008 GUH-68 47 144 PLATE 3020 3080
QRL-69 C 45220-1060 GUH-69 20 57 1.2×21.5 220 230
QRL-70 K 37401-1061 GUH-70 47 138 PLATE 3000 3060
QRL-71 K 37401-1010 GUH-71 47 144 PLATE 3020 3080
QRL-72 K 37401-1080 GUH-72 47 144 PLATE 3020 3080
QRL-73 K 37401-1021 GUH-73 50 165 PLATE 4210 4300
Universal Joint Bearing Delivery

Q: Do you like accept small order bearing?

A: we enjoy to grow up together with all our clients,whatever big or small,you will become bigger and bigger to be with us.

Q: How long is your delivery time?could you supply door to door service?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.B:yes,by air and by express(DHL,FEDEX,EMS,5-10DAYSto you city)

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107Cross GUS-7/TS-107 Universal Joint Bearing UJ-625 27200-83010 25x63.9 TS107
