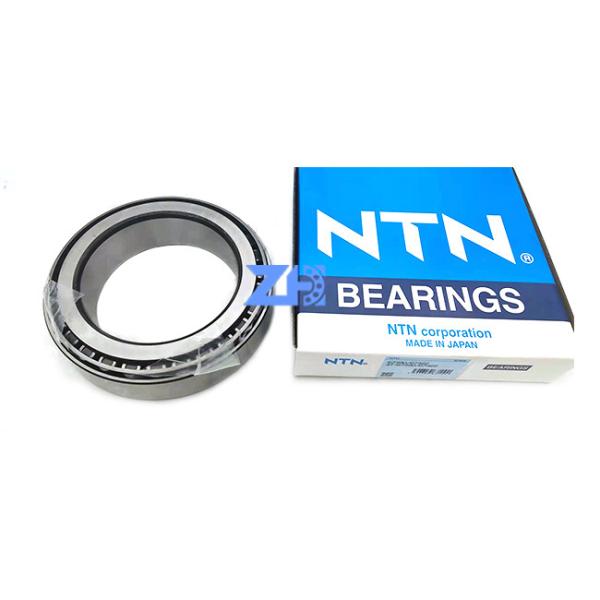

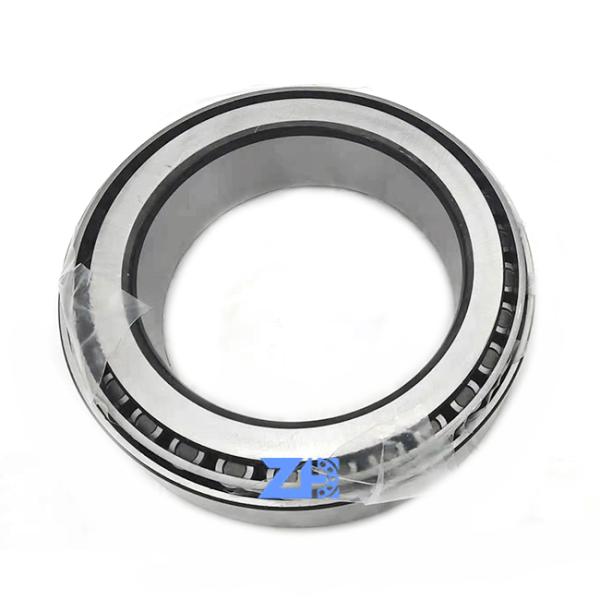

Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
Specifications
Brand Name :
ZH
Model Number :
6D31
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Supply Ability :
1000 pcs per month
Packaging Details :
Neutral carton / wooden box
Product Name :
67390-67322
Material :
CHROME STEEL
Number Of Row :
single column
Quality :
Normal / High
Size :
standard size
Package :
Carton / Wooden box
Structure :
Taper Roller Bearing
color :
silver
Description

Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size

Quick Details:

Product Description:
Product Name 67390-67322
Material CHROME STEEL
Number Of Row single column
MOQ 1 PC
Price terms FOB / EXW / CIF
Payment Terms T / T, L / C, Western Union, Paypal
Delivery Time About 5 - 8 working days after payment is received
Shipping methods By Sea, Air or DHL / FEDEX / TNT / EMS

other products

SF2912PX1 SF3240VPS(3235)
150BA20V-2 AC3321
BD135-6 BA160-432348
135BA-6 BD165-63A
135BA-16 BA165-8VSA
SF2812VPX 180BA-2256
BD140-1PX1 SF3607VPS2
140BA-18 BA180-4WSA
BD130-2SA(DE2622) 180BN19WSA
BA130-1SA 184BA-2251
BD130-16SA 185BA24T
BD135-6 BD185-6A
135BA-6 BA190-3A
135BA-16 BA195-3A(AC3928)
SF2812VPX SF4007VPX1
BD140-1PX1 SF4019PX1
140BA-18 20027V-2
SF2907VPX1 SF4021(BA200-6A)
150BA18VS BA200-10F
120BA-16 BA205-IT11
HS05154 210BA29V-2
BD130-1SA SF4205(4224)
BD130-2SA(DE2622) AC423040-1
BA130-1SA BA220-6SA
AC5836/BA289-1 BN220-1S
AC5033/BA250-4A/SA0530 BA220-10
R196-4 SF4460(BA220-30)
184BA-2251 KBCF846032
180BA-2256 SF4411PX1
BA246-2 CR4411PX2U6
R25/26 SF4454PX1(SF4444)
R25/26 BA222-1WSA
SF3240 BA4531
BA195-3 AC4629
SF4852/SF4815 AC4630(BA230-7)
SF4831/SF4826 AC4631(BA230-9)
L540049/10 KBCF846036
LM739749/10 AC463240(AC4632)
JM738249/10 BA230-7WSA
4T-LL735449VI 230BA30-2(SF4639)

details

Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
d - Internal diameter 133,35 mm
D - External diameter 196,85 mm
B - Bearing/Inner ring width 46,038 mm
C - Outer ring width 38,1 mm
T - Total width 46,038 mm
d1 - External diameter inner ring 165,5 mm
a - Charge load application point 39,738 mm
Mass 4,63 kg

Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size

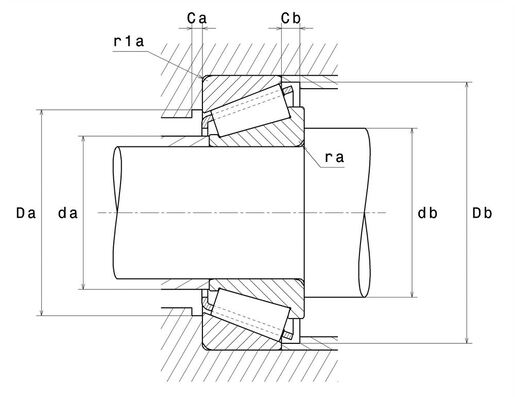

da max - Max shoulder diameter IR 143 mm
db min - Min IR shoulder diameter 149 mm
Da max - Max shoulder diameter OR 180 mm
Db min - Min OR shoulder diameter 189 mm
ra max - Max fillet radius 3,5 mm
r1a - Max fillet radius 3,3 mm


Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard sizeSingle row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard sizeSingle row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size

About us:

We have our own factory special for bearing, and also good supply of all other excavator parts.

ZhongHong bearing co., LTD. was established in 2004, with office in TianHe District Guangzhou city and factory in shandong province.
we are a company in combination of bearing Research & Development (R&D) ,Manufacturing and Import & Export. 70% of our products are exported to Europe, South America, Middle East, India and more than 10 countries in southeast Asia.
We adhere to the concepts of People-oriented and Quality first, focus on the standardization of production, and strict control of each process, striving to supply our clients with the best and most complete product lines, in preferential price and high efficiency, to meet all your demands.
In order to continuously improve the overall quality of staff and technical qualifiexcavatorions, we invested a lot in the technology and equipment modifiexcavatorion, purchased a large amount of high precision bearing manufacturing equipment and testing instruments. For example the high - precision machining production line, isothermal spherifiexcavatorion annealing furnace, salt bath quenching furnace and precision roll production line, all are equipped with complete inspection equipment.
Besides, we strictly follow the ISO/TS16949 quality management system.
Welcome friends from all over the world to visit and negotiate for cooperation.
Factory Photo
Single row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard sizeSingle row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard sizeSingle row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard sizeSingle row 67390-67322 tapered roller bearing 67390/67322 roller bearing standard cage standard size
