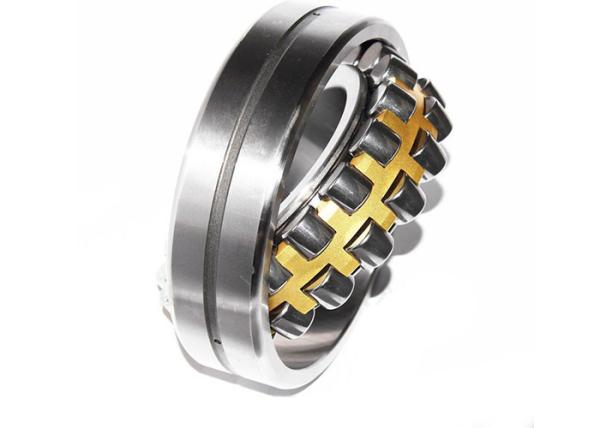

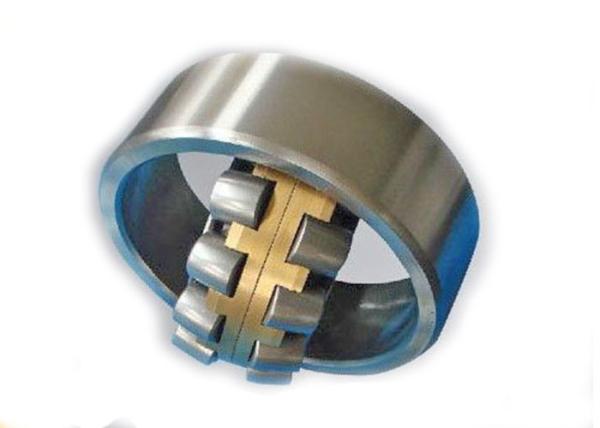

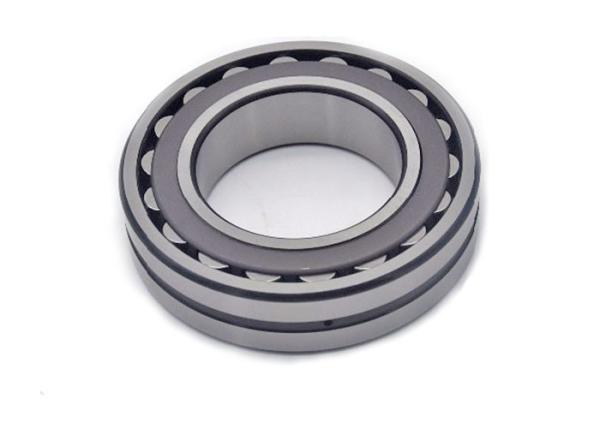

Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Steel Cage Spherical Roller Bearing 24048 Cc/W33 In Plywood Case Ready Stocks Carved Bearing
Specifications
Brand Name :
CN&ZH
Model Number :
24048
Certifiexcavatorion :
ISO 9001:2000
Place of Origin :
ShanDong, China (Mainland)
MOQ :
1 piece
Price :
USD =-1-10 piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces days
Packaging Details :
Conventional Package/As your request
Bore Size :
240 mm
Outside Diameter :
360 mm
High :
118 mm
Feature :
High Quality/Long Life
Material :
Chrome Steel/GCR 15
Precision Rating :
P0 P6 P5 P4 P2
Description

Product Description​​

high quality Spherical Roller Bearing features

1.BAINITE QUENCHING
2.ISO9001:2008
3.Material :GCr15/GCr15SiMn / G20Gr2Ni4A
4.Hardness :HRC60-HRC64
5.Closures :Unsealed/Sealed
6.Grade : P6 P5
7.Clearance :C0, C3, C4
8.Lubriexcavatorion :Oil or grease
9.Structure :Spherical Roller Bearing MB, CA, CC, and E series
10.Features: These bearings are featured by the extremely big axial load carrying capacity
and meanwhile they can also carry certain radial load
11.Appliexcavatorion :Steel industry, oil industry, cement industry, mining & construction, paper making machinery,
rolling mill, sugar mill, vibrating screens, conveyors, air blower, transmissions, and other heavy machinery

Specifiexcavatorion

SPHERICAL ROLLER BEARINGS - 24000 SERIES

Bearing No. Dimensions(mm) Load ratings(KN) Limiting speeds(r/min) Mounting dimensions(mm) Mass(Kg)
d D B Cr Cor Grease Oil da(min) Da(max) ra(max) ≈
24020 100 150 50 251 448 1400 1500 110 140 1.5 3.2
24022 110 170 60 380 600 1400 2200 120 170 2 5.05
24024 120 180 60 380 675 1600 2000 130 170 2 5.15
24026 130 200 69 472 852 1400 1800 140 190 2 7.45
24028 140 210 69 488 895 1400 1800 150 200 2 8.12
24030 150 225 75 570 1070 1200 1600 162 213 2.1 11.1
24032 160 240 80 652 1230 1000 1400 172 228 2.1 12.1
24034 170 260 90 792 1520 900 1200 182 248 2.1 16.45
24036 180 280 100 928 1820 800 1000 192 268 2.1 22.1
24038 190 290 100 975 1910 800 1100 202 278 2.1 22.95
24040 200 310 109 1120 2220 670 850 212 298 2.1 29.4
24044 220 340 118 1370 2760 750 1000 234 326 2.5 39.2
24048 240 360 118 1440 2930 700 950 254 346 2.5 40.9

About Us


ZhongHong Bearing Company is a well-established Chinese bearing supplier. We design, manufacture and wholesale bearings.
Our specialized manufacturer of Spherical Roller Bearing & Cylindrical Roller BearingRolling Bearing Co., Ltd was established
in 1970 and is accredited by the Chinese Ministry of Machine Building.
We invested in two additional specialized bearing factories, which allow us to provide our clients with top of the line products such as
Needle Roller Bearings, Spherical Plain Bearings, Rod Ends Bearings, Ball Joint Bearings, Tapered Roller Bearings,Wheel Hub Bearings
and Non-Standard Bearings.
