JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
Specifications
Brand Name :
ZGMC
Model Number :
Stainless Steel Coil
Certification :
ISO TUV SGS BIS CE
Place of Origin :
Shandong China
MOQ :
3Tons
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,OA
Supply Ability :
5000Tons Per Months
Delivery Time :
5-15days depend on the quantity
Packaging Details :
With iron sheet to pack the steel sheet and pallet .Also make the shipping marks on each bundles.
Product name :
Stainless Steel Coils
Standard :
JIS, ASTM, DIN, EN GB
Surface :
NO.1,2B,NO.4,BA,HL Or According to customer requirement
Width :
500-1200mm or required
Length :
6000mm or required
Technique :
Cold Rolled Hot Rolled
Thickness :
0.13-300mm
name :
JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
Description

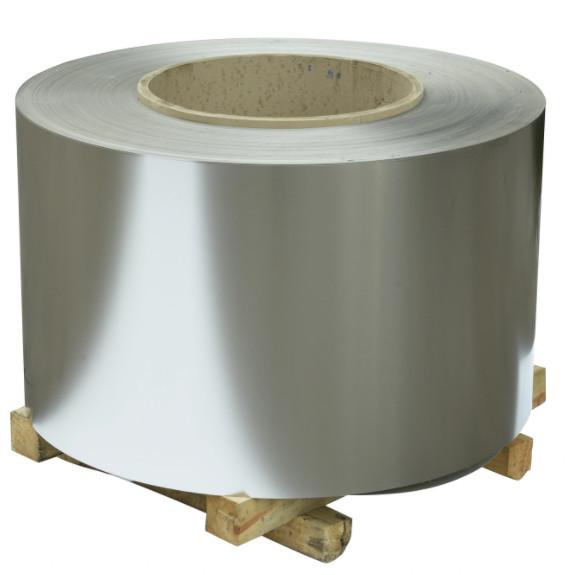

JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils

Product Description:

JIS Hot Rolled Grade 410, 420, and 430 Stainless Steel Coils are types of stainless steel coils manufactured according to the Japanese Industrial Standard (JIS). These coils are known for their excellent corrosion resistance, durability, and mechanical properties.

  1. Grade 410 Stainless Steel Coil: Grade 410 stainless steel coil contains a minimum of 11.5% chromium. It offers good corrosion resistance and is suitable for applications that require moderate corrosion resistance, such as the manufacturing of automotive parts, kitchen appliances, and industrial equipment.
  2. Grade 420 Stainless Steel Coil: Grade 420 stainless steel coil contains a minimum of 12% chromium. It provides improved hardness and wear resistance compared to Grade 410. Grade 420 is commonly used in the production of cutlery, surgical instruments, and bearings.
  3. Grade 430 Stainless Steel Coil: Grade 430 stainless steel coil contains a minimum of 16% chromium. It offers good corrosion resistance and is suitable for a wide range of applications, including architectural trim, automotive exhaust systems, and domestic appliances.

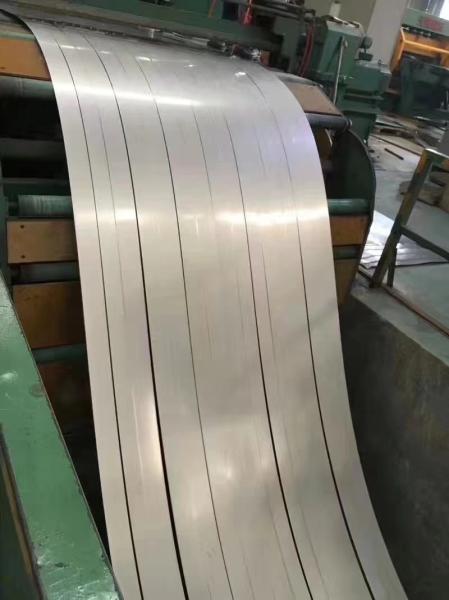

The coils are manufactured through a hot rolling process, which involves heating the stainless steel to a high temperature and passing it through rollers to achieve the desired thickness and shape. This process imparts the coils with their mechanical properties and surface finishes.

The JIS Hot Rolled Grade 410, 420, and 430 Stainless Steel Coils are widely used in industries such as automotive, construction, household appliances, and machinery. Their corrosion resistance, durability, and mechanical properties make them suitable for a variety of applications where reliability and performance are important considerations.

Product Name

JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils
Size as required
Width 3mm-2000mm or as required
Thickness 0.1mm-300mm or as required
Standard AISI,ASTM,DIN,JIS,GB,JIS,SUS,EN,etc
Technique Hot rolled / cold rolled
Surface Treatment 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc
Thickness Tolerance ±0.01mm~ ±0.25mm
Material 201, 202, 301, 302, 303, 304, 304L, 304H, 310S, 316, 316L, 317L, 321,310S 309S, 410, 410S,420, 430, 431, 440A,904L
Application It is widely used in high temperature applications, medical devices, building materials, chemistry, food industry, agriculture, ship components.
It also applies to food, beverage packaging, kitchen supplies, trains, aircraft, conveyor belts, vehicles, bolts, nuts, springs, and screen.
MOQ 1 ton , We can accept sample order.
Shipment Time Within 15-20 workdays after receiving deposit or workable L/C
Export Packing Waterproof paper, and steel strip packed.
Standard Export Seaworthy Package.Suit for all kinds of transport,or as required
Capacity 250,000 tons/year

JIS Hot Rolled Grade 410 420 430 Stainless Steel Coils

Chemical Composition:

Grade C Si Mn P S Ni Cr Mo
201 ≤0 .15 ≤0 .75 5. 5-7. 5 ≤0.06 ≤ 0.03 3.5 -5.5 16 .0 -18.0 -
202 ≤0 .15 ≤l.0 7.5-10.0 ≤0.06 ≤ 0.03 4.0-6.0 17.0-19.0 -
301 ≤0 .15 ≤l.0 ≤2.0 ≤0.045 ≤ 0.03 6.0-8.0 16.0-18.0 -
302 ≤0 .15 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 8.0-10.0 17.0-19.0 -
304 ≤0 .0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 8.0-10.5 18.0-20.0 -
304L ≤0.03 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0-13.0 18.0-20.0 -
309S ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0-15.0 22.0-24.0 -
310S ≤0.08 ≤1.5 ≤2.0 ≤0.035 ≤ 0.03 19.0-22.0 24.0-26.0
316 ≤0.08 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 10.0-14.0 16.0-18.0 2.0-3.0
316L ≤0 .03 ≤1.0 ≤2.0 ≤0.045 ≤ 0.03 12.0 - 15.0 16 .0 -1 8.0 2.0 -3.0
321 ≤ 0 .08 ≤1.0 ≤2.0 ≤0.035 ≤ 0.03 9.0 - 13 .0 17.0 -1 9.0 -
630 ≤ 0 .07 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 3.0-5.0 15.5-17.5 -
631 ≤0.09 ≤1.0 ≤1.0 ≤0.030 ≤0.035 6.50-7.75 16.0-18.0 -
904L ≤ 2 .0 ≤0.045 ≤1.0 ≤0.035 - 23.0·28.0 19.0-23.0 4.0-5.0
2205 ≤0.03 ≤1.0 ≤2.0 ≤0.030 ≤0.02 4.5-6.5 22.0-23.0 3.0-3.5
2507 ≤0.03 ≤0.8 ≤1.2 ≤0.035 ≤0.02 6.0-8.0 24.0-26.0 3.0-5.0
2520 ≤0.08 ≤1.5 ≤2.0 ≤0.045 ≤ 0.03 0.19 -0. 22 0. 24 -0 . 26 -
410 ≤0.15 ≤1.0 ≤1.0 ≤0.035 ≤ 0.03 - 11.5-13.5 -
430 ≤0.1 2 ≤0.75 ≤1.0 ≤ 0.040 ≤ 0.03 ≤0.60 16.0 -18.0 -

Application:

The applications of JIS Hot Rolled Grade 410, 420, and 430 Stainless Steel Coils include but are not limited to the following areas:

  1. Automotive Industry: These coils are used in the manufacturing of automotive components such as exhaust systems, fuel tanks, and engine parts. The stainless steel's corrosion resistance and durability make it suitable for applications in automotive environments.
  2. Construction: The coils find applications in the construction industry for architectural cladding, roofing, and wall panels. The stainless steel offers durability, corrosion resistance, and aesthetic appeal in architectural designs.
  3. Domestic Appliances: These grades of stainless steel coils are utilized in the production of kitchen appliances like sinks, stoves, ovens, and refrigerator panels. The stainless steel's resistance to stains, easy cleaning, and hygienic properties make it suitable for kitchen environments.
  4. Machinery Manufacturing: The coils are employed in the fabrication of machinery parts, equipment, and machinery structures. The stainless steel's strength and corrosion resistance contribute to the durability and longevity of the machinery.
  5. Electrical Enclosures: These coils are used in the manufacturing of electrical enclosures, switchboards, and control panels. The stainless steel provides protection against moisture, corrosion, and electrical conductivity.
  6. Decorative Applications: The coils can be used in decorative applications such as interior design, furniture, and architectural accents. The polished surface of the stainless steel adds a sleek and modern look to the finished products.

The JIS Hot Rolled Grade 410, 420, and 430 Stainless Steel Coils offer versatility in fabrication, allowing for bending, welding, and forming. The specific application will depend on the requirements of the end product, with the stainless steel coils providing a reliable and long-lasting solution in various industries.

FAQ:

Q1. What are your company's main products ?

A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. How do you control quality ?

A2: Mill Test Certification is supplied with shipment, Third Party Inspection is available. and we also get ISO,SGS,Alibaba Verified.

Q3: What is the terms of packing?

A3: generally, we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers requirement.

Q4:What is your delivery time?

A4: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.

Q5. What are the advantages of your company ?

A35: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q6. How many coutries you already exported ?

A6: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt, Turkey, Jordan,India, etc.

Q7. Can you provide sample ?

A7: We can provide the samll samples in stock for free, as long as you contact us.

Customized samples will take about 5-7days.
