Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Pickling polishing DN600 Forged Stainless Steel 304 Flanges
Specifications
Brand Name :
XINFUTIAN
Model Number :
SUS201, SUS304, SUS316, F304,F316 ,SS321
Certification :
BV,TUV,DNV,SGS,CE,LR.
Place of Origin :
Zhejiang, China
MOQ :
1PC
Price :
Negotiation
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
1000 Ton / Month
Delivery Time :
5 - 15 working days
Packaging Details :
Wooden Cartons and Plastic Bag of each good.
Technics :
Forged
Type :
Flange
Connection :
Welding
Flange Type :
RF WN
Surface :
Pickling and polishing
Quality :
Prime
Pressure :
Class150 / 300 / 600 / 900 /1500 / 2500
Description

DN25 DN40 DN80 DN100 DN150 DN600 Plate Steel Stainless Steel Flange

Pickling polishing DN600 Forged Stainless Steel 304 Flanges

Porduct Name
weld neck flange, slip on flange, blind flange, tube sheet, threaded flange,
socket weld flange, plate flange, spectacle blind, LWN, Orifice flange, anchor flange.
(En1092-1 PN10 Pn16 DN900 DN750 Plate Steel Stainless Steel Flange)
OD
15mm-6000mm
Pressure
150#-2500#,PN0.6-PN400,5K-40K,API 2000-15000
Standard
ANSI B16.5,EN1092-1, SABA1123, JIS B2220, DIN, GOST,UNI,AS2129, API 6A, etc.
Wall thickness
SCH5S, SCH10S, SCH10, SCH40S,STD, XS, XXS, SCH20,SCH30,SCH40, SCH60,
SCH80, SCH160, XXS and etc.
Material
Stainless steel: A182F304/304L, A182 F316/316L, A182F321, A182F310S,
A182F347H,A182F316Ti, A403 WP317, 904L, 1.4301,1.4307,1.4401,1.4571,1.4541,
254Mo and etc.
Carbon steel: A105, A350LF2, Q235, St37, St45.8, A42CP, E24 , A515 Gr60, A515 Gr 70
Duplex stainless steel: UNS31803, SAF2205, UNS32205, UNS31500, UNS32750 ,
UNS32760, 1.4462,1.4410,1.4501 and etc.
Pipeline steel: A694 F42, A694F52, A694 F60, A694 F65, A694 F70, A694 F80 etc.
Nickel alloy: inconel600, inconel625, inconel690, incoloy800, incoloy 825, incoloy 800H,
C22, C-276, Monel400, Alloy20 etc.
Cr-Mo alloy: A182F11, A182F5, A182F22, A182F91, A182F9, 16mo3 etc.
Application
Petrochemical industy;avation and aerospace industry;pharmaceutical industry;
gas exhaust;power plant;ship buliding;water treament,etc.
Advantages
ready stock,faster delivery time;available in all sizes,customized;high quality


Chemical Composition(%)

Grade C Si Mn P S Cr Ni Mo

Cu
201 ≤0.15 ≤0.75 5.5~7.5 ≤0.060 ≤0.03 16.00~18.00 3.5~5.5 - 0.08

1.5
202 ≤0.15 ≤1.00 7.5~10.00 ≤0.060 ≤0.03 17.00~19.00 4.0~6.0 -


301 ≤0.15 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.00~18.00 6.00~8.00 -


302 ≤0.15 ≤1.00 ≤2.00 ≤0.035 ≤0.03 17.00~19.00 8.00~10.00 -


304 ≤0.07 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.00~20.00 8.00~10.50 -


304L ≤0.030 ≤1.00 ≤2.00 ≤0.045 ≤0.03 18.00~20.00 9.00~13.00 -


310S ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 24.00~26.00 19.00~22.00 -


316 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.00~18.00 10.00~14.00 2.00~3.00


316L ≤0.03 ≤1.00 ≤2.00 ≤0.045 ≤0.03 16.00~18.00 12.00~15.00 2.00~3.00


321 ≤0.08 ≤1.00 ≤2.00 ≤0.045 ≤0.03 17.00~19.00 9.00~13.00 -


430 ≤0.12 ≤0.75 ≤1.00 ≤0.040 ≤0.03 16.00~18.00


-
2205 ≤0.03 ≤1.00 ≤2.00 ≤0.030 ≤0.015 22.00~23.00 4.5~6.5 2.5~3.5


2507 ≤0.03 ≤0.08 ≤1.20 ≤0.035 ≤0.015 24.00~26.00 6.00~8.00 3.0~5.0


904L ≤0.02 ≤1.00 ≤2.00 ≤0.045 ≤0.035 19.00~23.00 23.00~28.00 4.0~5.0 1.0~2.0


INCONEL
028

 ≤0.03 ≤1.00 ≤2.50 ≤0.030 ≤0.030 ≤28.0 ≤34.0 ≤4.0 ≤1.4


MONEL
400

 ≤0.30 ≤0.5 ≤2.00 - ≤0.024 - ≥63.0 - ≤34.0

INCONEL
800

 ≤0.10 ≤1.00 ≤1.50 - ≤0.015 ≤23.0 ≤35 4.0~5.0 ≤0.75

Ti≤0.6
Al≤0.6

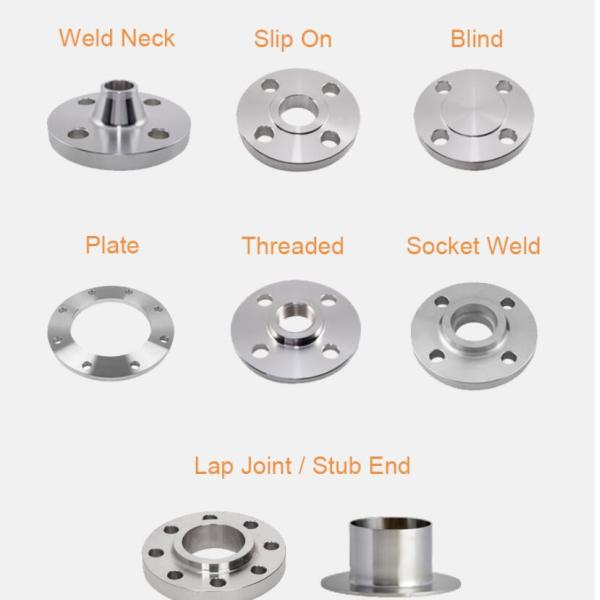

Weld neck,slip on,blind,plate,threaded ,socked weld ,lab jont


Pickling polishing DN600 Forged Stainless Steel 304 Flanges
