12um Reverse Treated Copper Foil For 2L-FCCL Wareless Charging
12um Reverse Treated Copper Foil For 2L-FCCL Wareless Charging
Specifications
Brand Name :
JIMA
Model Number :
EDCULP
Certification :
SGS, ISO,Reach, RoHS
Place of Origin :
china
MOQ :
50kg
Price :
Negotiation
Supply Ability :
1000 Ton per month
Delivery Time :
7-20days
Packaging Details :
Wooden carton
Name :
Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging
Color :
Red or Black
Thickness :
12um,18um,35um,50um,70um
Feature :
Reverse Treated Copper Foil
Application :
2L-FCCL , Wareless Charging , EMI
Lead Time :
7-10 days
Sample :
Can be supply
Description

Low Profile Reverse Treated Copper Foil For 2L-FCCL & Wareless Charging 12um 18um 35um 50um 70um

Detail

  • Thickness: 12um 18um 35um 50um 70um
  • Standard Width: 1290mm, can be cutting as per size request
  • Wooden box package
  • ID: 76 mm, 152 mm
  • Length: Customized

Feature

  • Low profile for FCCL
  • High MIT
  • Excellent etchability
  • The treated foil is pink or black
  • Reverse treated copper foil
  • Reverse treated copper foil

Typical Application

  • Wareless Charging
  • 2L-FCCL
  • EMI
  • 2layer FPC
  • Mobile phone Wireless charging

Typical properties of Reverse Treated Copper Foil (LP-D-P/B Cu)

Classification Unit Requirement Test Method
Nominal thickness um 12 18 35 50 70 IPC-4562A
Area Weight g/m² 107±5 153±7 285± 10 435±15 585± 20 IPC-TM-650 2.2.12.2
Purity % ≥99.8 IPC-TM-650 2.3.15
Roughness Shiny side (Ra) սm ≤3.0 IPC-TM-650 2.3.17
Matte side(Rz) um ≤3.0 ≤4.0 ≤6.0 ≤8.0 ≤10
Tensile Strength R.T.(23°C) Mpa ≥207 ≥276 IPC-TM-650 2.4.18
H.T.(180°C) ≥103 ≥138
Elongation R.T.(23°C) % ≥4 ≥4 ≥8 ≥10 ≥12 IPC-TM-650 2.4.18
H.T.(180°C ≥4 ≥4 ≥6 ≥8 ≥8
Peel Strength(FR-4) N/mm ≥0.7 ≥0.8 ≥1.0 ≥1.2 ≥1.3 IPC-TM-650 2.4.8
Lbs/in ≥4.0 ≥4.6 ≥5.7 ≥6.9 ≥7.4 /
Pinholes & Porosity Numbers No IPC-TM-650 2.1.2
Anti-oxidization R.T.(23°C) Days 180 /
H.T.(200°C) Minutes 60 /

Product Display

12um Reverse Treated Copper Foil For 2L-FCCL Wareless Charging

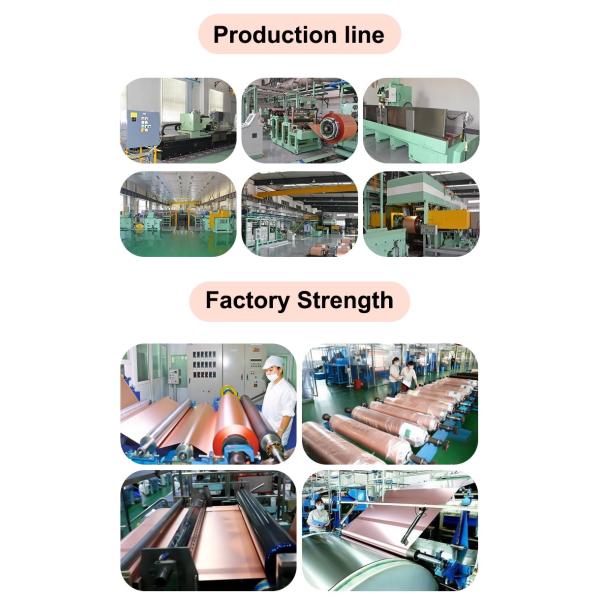

Production Line & Factory

12um Reverse Treated Copper Foil For 2L-FCCL Wareless Charging
