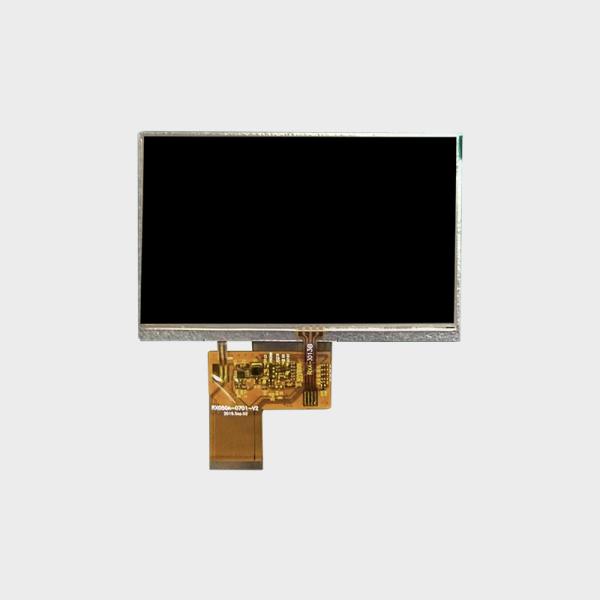

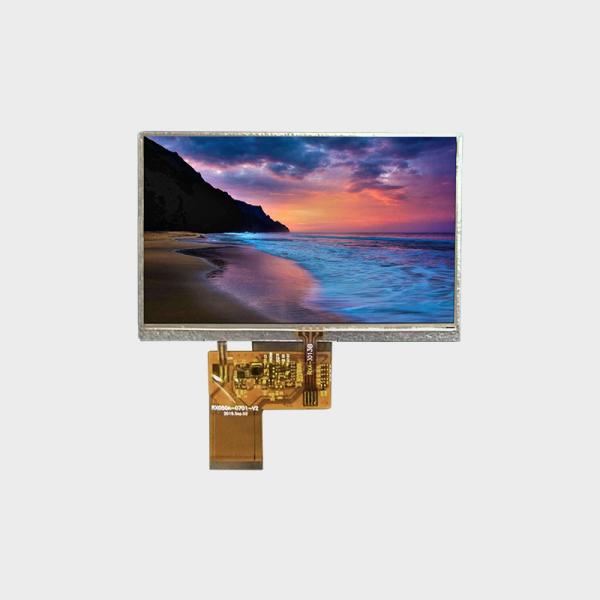

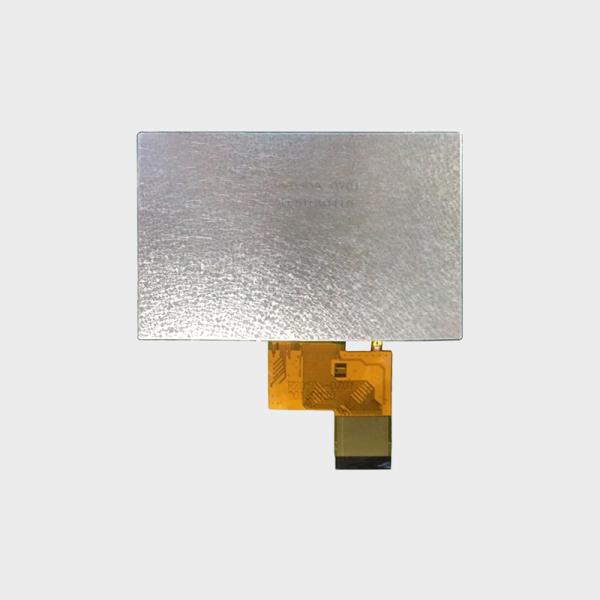

Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices
Specifications
Brand Name :
ROGIN
Model Number :
RX050A-0701
Place of Origin :
Shenzhen
MOQ :
5
Price :
Price is negotiable.
Payment Terms :
T/T, L/C
Supply Ability :
Spot adequacy
Delivery Time :
6-8 weeks
Packaging Details :
Cartons or wooden cases
Name :
RGB LCD Display
Panel Size :
5.0"
Resolution :
800(RGB)*480
Brightness :
600 (Typ.)
Active Area :
108(W) x64.8 (H) mm
Outline Dimension :
120.7(W) x75.8(H) x3.1(D)mm
Description

5.0 inch Medium and Small LCD Display 800(RGB)×480 RGB 600nits

Product Advantage ►

1. Thousand grade clean room, Cover 3000 m2 dust-free workshop.
2. Support small MOQ and LCD/FPC/BL/TP customization.
3. Customized convert board, RBG/LVDS/MIPI/EDP/ HDMI signal conversion.
4. Strict aging test and vibration test.

Product Application ►

1. Educational Learning Machine.
2. Car DVD.
3. Communication Equipments.
4. Handheld Devices.
5. Car Rearview Mirror and Data Recorder.
6. Medical Equipments.
7. Instrument.
8. Instrial Control Display.

Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices Medium And Small RGB LCD Display 5.0 Inch 800×480 600Nits For Handheld Devices

Specifications ►

RX050A-0701

Brand Rogin
Series Medium and Small Size LCD Display
Panel Size 5.0inch
Model RX050A-0701
Brightness 600 cd/m2
Resolution 800(RGB)*480 dots
Interface RGB
Display area(AA) 108(W) x64.8 (H) mm
Overall size 120.7(W) x75.8(H) x3.1(D)mm
Driver element a-Si TFT active matrix
Display colors 16.7M colors
Pixel arrangement RGB-stripe
Pixel pitch 0.135(W) ×0.135(H) mm
Viewing angle 6 O'CLOCK
Drive IC ILI6122 + ILI5960
Display mode Transmissive/ Normally White
Operating temperature -20~+70℃
Storage temperature -30~+80 ℃
