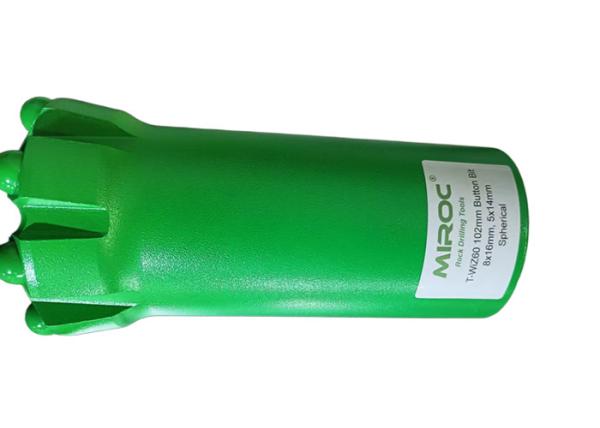

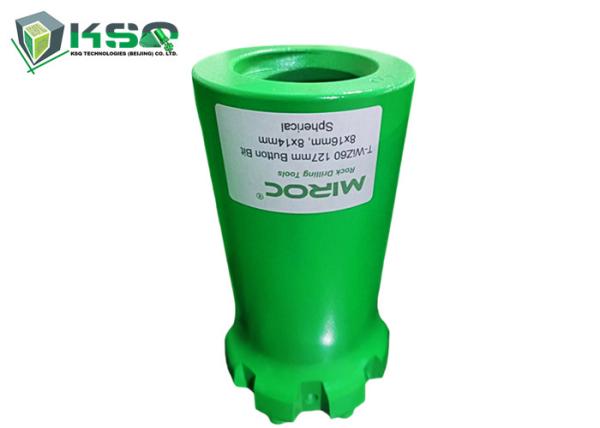

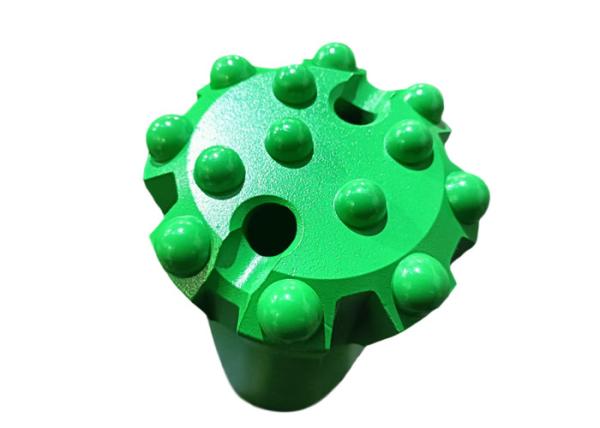

T-WIZ60 102mm Threaded Button Rock Drill Bit
T-WIZ60 102mm Threaded Button Rock Drill Bit
T-WIZ60 102mm Threaded Button Rock Drill Bit
T-WIZ60 102mm Threaded Button Rock Drill Bit
T-WIZ60 102mm Threaded Button Rock Drill Bit
T-WIZ60 102mm Threaded Button Rock Drill Bit
Specifications
Brand Name :
MIROC
Model Number :
T-WIZ60 102mm Button Drill Bit
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Delivery Time :
20-30
Material :
Alloy Steel & Tungsten Carbides
Use :
Ore Mining, Quarry,construction,blasting,open pit
Advantage :
Factory price
Product name :
Threaded Button Bits
Usage :
Milling
Quality :
HighQuality
Description

Products Description

Thread button dril bits are made by high quaty aloy steel bar and tungsten carbides. Through heat treatment, our driling tools are tough enough to meet rock drlingdemands and have the least loss of energy while driling the rocks.Besides,we can design customized thread buton dillbits according to diferent diling application, andcustom drill bits are applicable to drill soft rock, loose-medium rock and hard rock.

Rock DrllThread Buton its is suitable forR22,R25,R28, R32, R35, R38, T38,T45,T51,$T58, T60 rock drilrods .t's widely used for hard rock dirling
use.
1)Thread connection:R22,R25,R28,R32,R35,R38,T38,T45,T51,ST58,GT60
2) Alloy steel:42CrMo
3)Suitable carbide tips:YK05
4)Technology:hot-pressing or welding


Before Official Order, please confirm below informations:
(1) Thread Type
(2)Standard or Retrac
(3)Bit button shape (tip shape)--Spherical or Ballistic
(4)Bit face shape--Drop Center, Flat Face, Convex, Concave, etc...

Diameter

No.of
buttons

Buttons x button diameter (mm)

Gauge
buttons
angle°

Flushing hole

Weight
аpprox
kg

mm

inch

Gauge

Centre

Side

Centre

BUTTON BITS-Spherical buttons

95

3 3/4

13

8x14.5

4x12,7 1x12.7

35°

-

4

6,0

102

4

13

8x14.5

4x12.7, 1x12.7

35°

-

4

6,6

102

4

13

8x14,5

4x12,7, 1x12.7

35°

-

4

6,6

115

4 1/2

14

8x15,8

4x14,5, 2x14.5

35°

-

4

8,9

115

4 1/2

14

8x15,8

4x14,5, 2x14,5

35°

-

4

9,4

127

5

14

8x15.8

4x15,8, 2x14.5

35°

-

4

11,3

127

5

14

8x15,8

4x15,8, 2x14.5

35°

-

4

11,3

140

5 1/2

16

8x19.1

4x15,8, 4x15,8

35°

-

4

15,0

140

5 1/2

16

8x19.1

4x15,8, 4x15,8

35°

-

4

15,0

152

6

16

8x19,1

4x15,8, 4x15.8

35°

-

4

13,1

152

6

16

8x19.1

4x15,8, 4x15,8

35°

-

4

18,1

BUTTON BITS - Ballistic buttons

92

3 5/8

13

8x14.5

4x12,7 1x12.7

35°

-

4

4,7

92

3 5/8

13

8x14,5

4x12,7, 1x12.7

35°

-

4

4,5

95

3 3/4

13

8x14.5

4x12,7, 1x12,7

35°

-

4

5,9

102

4

13

8x14.5

4x12.7. 1x12,7

35°

-

4

6,6

115

4 1/2

14

8x15.8

4x14,5,2x14.5

35°

-

4

9,5

127

5

14

8x15.8

4x15,8.2x14.5

35°

-

4

11,3

140

5 1/2

16

8x19.1

4x15,8,4x15.8

35°

-

4

15,0

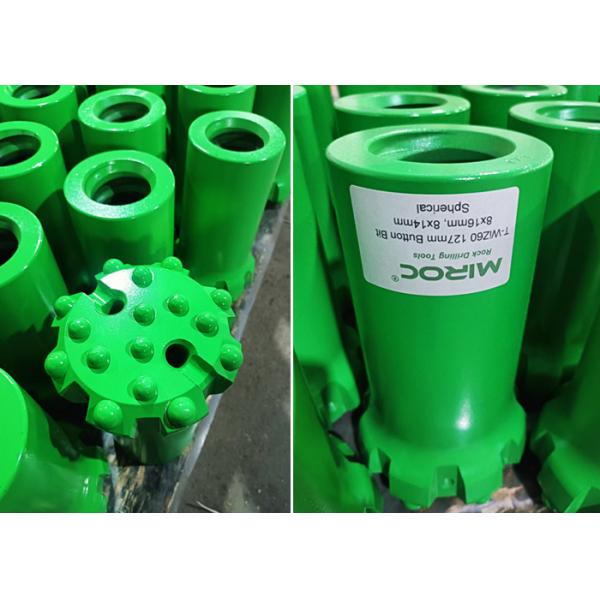

T-WIZ60 102mm Threaded Button Rock Drill Bit
