Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Tungsten Carbide Drilling Tools T38 76mm,102mm Rock Drill Button Bit
Specifications
Brand Name :
MIROC
Model Number :
T38 76mm,102mm
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Delivery Time :
20-30
Thread :
T38
Diameter :
76mm,102mm
Skirt Design :
Standard
Parts Name :
Rock Drill Bits
Material :
Carton Steel+Tungsten Carbide
Application :
Mining, Blasting,Road Construction Hole Drilling
Usage :
Or Drifting Tunneling Bench Drilling
Mining Object :
Granite, Marble, Sandstone,Limestone
Carbide Shape :
Spherical, Ballistic
Packaging Details :
Wooden Box
Description

Description

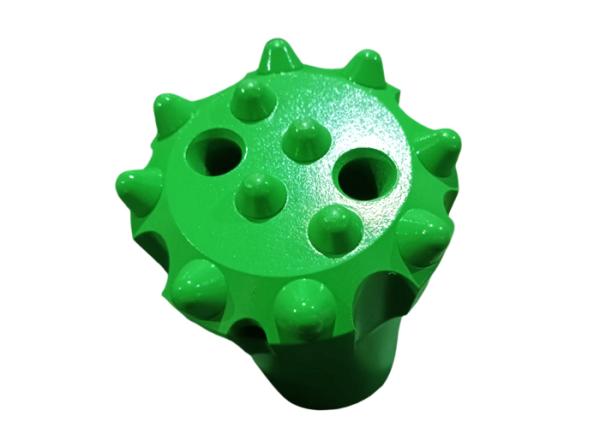

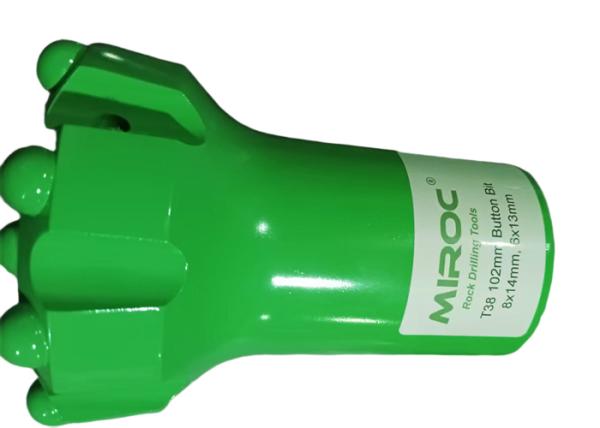

A Rock Drill Button Bit is a type of hard rock drilling tool used in mining, tunneling, quarrying, and construction. It is designed to penetrate tough rock formations efficiently using a percussive or rotary-percussive drilling system.

Applications

  • Mining : Open-pit & underground drilling for blasting holes.

  • Tunneling : Excavation for railways, highways, and hydropower projects.

  • Quarrying : Dimension stone & aggregate production.

  • Construction : Foundation piling, anchor drilling, and slope stabilization.​

Key Features

  • Superior Wear Resistance : Tungsten carbide buttons withstand abrasive rock conditions.

  • High Penetration Rate : Optimized button layout ensures efficient rock fragmentation.

  • Extended Lifespan : Precision heat treatment and alloy selection enhance longevity.

  • Versatile Performance : Customizable for various rock types and drilling methods.

Part Number

Bit Diameter (mm)

Bit Diameter (inch)

Front Buttons (No. x mm)

Gauge Buttons (No. x mm)

Angle

Front Flushing Holes

Side Flushing Holes

Weight (kg)

4148300705

64

2 1/2

3x11

6x12

35°

3

-

1.8

4148300706

64

2 1/2

4x10

8x10

40°

2

-

1.6

4148300707

64

2 1/2

3x10, 1x10

6x11

35°

3

-

1.7

4148300708

70

2 3/4

4x11

8x11

40°

2

-

1.9

4148300709

70

2 3/4

4x10, 1x10

8x11

30°

4

-

1.9

4148300710

70

2 3/4

3x10, 1x10

6x12

35°

3

-

1.8

4148300711

76

3

4x11

8x11

40°

2

-

2.4

4148300712

76

3

5x11

8x13

35°

2

1

2.4

4148300713

76

3

3x11, 1x11

6x12

35°

3

1

2.6

4148300714

76

3

4x11, 1x11

8x12

35°

4

-

2.6

4148300715

76

3

4x11, 1x11

8x11

40°

4

-

2.6

4148300716

89

3 1/2

4x13

8x13

40°

2

-

3.3

4148300717

89

3 1/2

5x13

8x13

35°

2

-

3.3

4148300718

89

3 1/2

6x11

8x12

35°

2

-

3.3

4148300719

89

3 1/2

3x11, 2x11

6x13

35°

3

1

3.3

4148300720

89

3 1/2

4x11, 1x11

8x13

35°

4

-

3.3

4148300721

89

3 1/2

4x13, 1x13

8x13

35°

4

-

3.3
