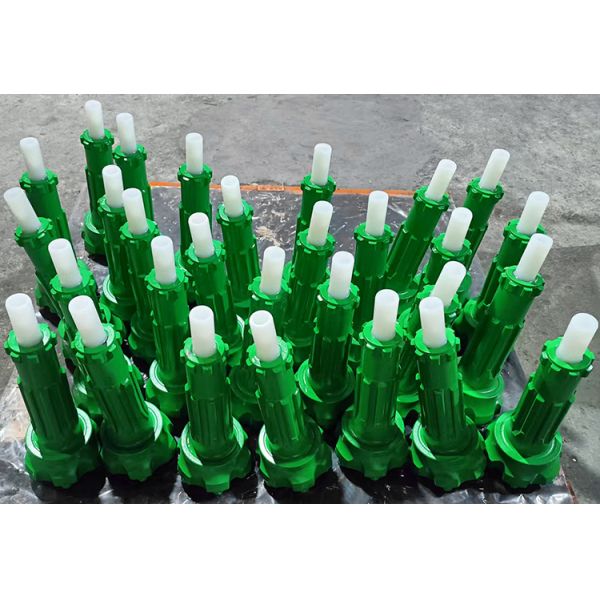

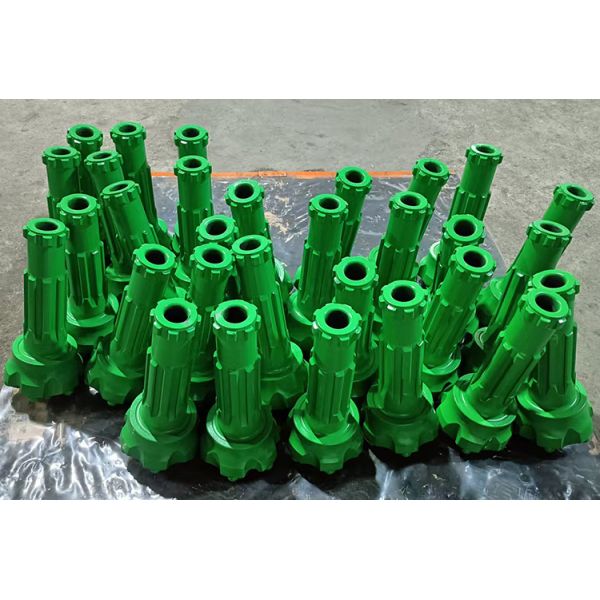

QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
Specifications
Brand Name :
MIROC
Model Number :
QL50-130mm
Certification :
ISO
Place of Origin :
China
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Type :
DTH Drill Bit
Bit Face :
Flat Face Bit, Convex Face Bit, Concave Face Bit
Process :
Forging+Machining+Surface Treatment
Button Shape :
Spherical/Ballistic/Conical Bottons
Surface Treatment :
Spray-Paint
Manufacturing Process :
Forging
Description
QL50-130mm DTH Hammer Drill Button Bit for Water Well Drilling
The QL50-130mm DTH (Down-the-Hole) drill bit is an industrial-grade drill designed specifically for use with the 5-inch QL50 impactor. With a typical diameter of 130mm (5 1/8"), this robust tool is widely used in demanding hard rock drilling operations including mining, quarrying, water well drilling, and construction engineering.
Technical Specifications and Features
  • Applicable Diameter: QL50 series drill bits typically range from 130mm to 165mm
  • Operating Pressure: Recommended for high-pressure environments of 10-25 bar (1.0-2.5 MPa); some models can withstand higher impact energy
  • Materials and Construction: High-quality alloy steel body with high-performance tungsten carbide ball teeth, forged and heat-treated for enhanced fatigue and wear resistance
  • Efficiency Performance: Under specific geological conditions, achieves average drilling speeds up to 30 cm/min with service life exceeding 500 meters
QL50 Drill Bit Specifications
Type Diameter (mm) Diameter (inch) Button Configuration Gauge Buttons Face Buttons Shank Length (mm) Part Number
Spherical button/Concave face 130 5 1/8 4×14,3×14 8×16 2 14 4148301331
133 5 1/4 4×14,3×14 8×16 2 14 4148301332
140 5 1/2 4×14,4×14 8×16 2 15 4148301333
146 5 3/4 4×14,4×14 8×16 2 15.8 4148301334
152 6 4×16,4×16 8×18 2 18 4148301335
Ballistic button/Convex face 130 4 3/8 3×14,4×14 9×16 3 14 4148301336
133 4 1/2 3×14,4×14 9×16 3 14 4148301337
140 4 3/4 3×16,4×16 9×16 3 15 4148301338
146 5 3×16,4×16 9×16 3 15.8 4148301339
152 5 1/8 3×16,5×16 9×18 3 18 4148301340
Spherical button/Flat face 130 4 3/8 7×14 8×16 2 14 4148301341
133 4 1/2 7×14 8×16 2 14 4148301342
140 4 3/4 7×14 7×18 2 15 4148301343
140 5 8×14 9×16 3 15 4148301344
152 5 1/4 8×16 9×18 3 18 4148301346
QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
Applications
Underground mining
Down the hole rock drilling
Water well drilling
Quarry operations
Construction engineering
Competitive Advantages
  • High-grade tungsten carbide inserts for superior wear resistance
  • Bit bodies manufactured from premium high-grade steel
  • Precision processing using state-of-the-art CNC machinery
  • Advanced heat treatment processes for enhanced durability
QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling QL50-130mm DTH Hammer Drill Button Bit with Tungsten Carbide Teeth for High-Pressure Water Well Drilling
