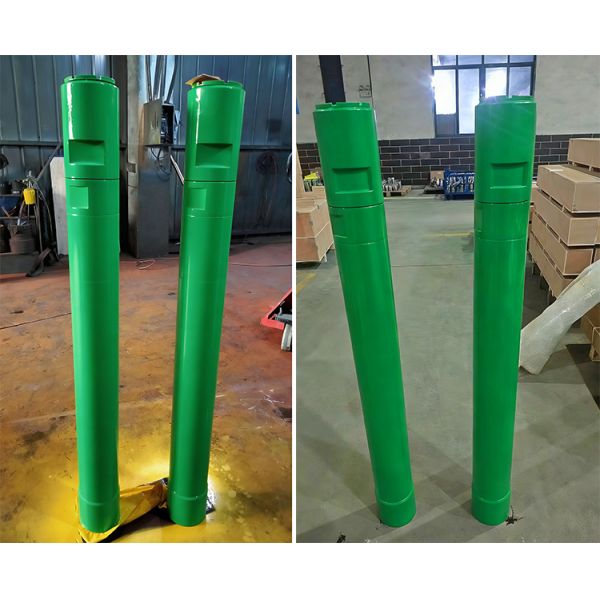

PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
Specifications
Brand Name :
MIROC
Model Number :
PR54R
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Surface Treatment :
Spray-Paint
Manufacturing Process :
Forging
Material :
Alloy Steel
Color :
Ascustomer Need
Thread Type :
Remet/Metzke
Application :
Mining Exploration
Description
PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling
RC hammers function similarly to conventional DTH hammers but feature an inner tube running through the hammer's center. This design collects cuttings through holes in the bit front and transports them via the inner tube, while flushing occurs between the bit splines and chuck. The inner tube serves as a wear component that can be easily replaced from the hammer's top.
Reverse Circulation (RC) drilling efficiently collects mineral and rock samples using large rotary drills and air compressors. As one of the world's most frequently used drilling methods, RC drilling offers superior cost-effectiveness and efficiency compared to alternative techniques. Positioned between RAB (Rotary Air Blast) and diamond drilling in terms of cost, time, sample quality, technique, and depth capabilities.
Advantages of Reverse Circulation Drilling
Compared to core drilling, RC drilling delivers faster penetration rates with multiple benefits:
  • Direct drilling cost reductions ranging from 25% to 40%
  • Faster completion of drill programs with accelerated result delivery
  • Reduced man-hours at drill sites with decreased accident exposure
  • Lower contractor activity reduces mine support burden
  • Indirect cost reductions through simplified sampling processes
  • Reduced water requirements compared to diamond drilling
Length
(Less bit)		 Weight
(Less bit)		 Outer Diameter Connection Thread Bit Shank Hole Range
1294mm 81Kg φ130mm 4 1/2"Remet PR54R φ135-150mm
Work Pressure Recommended rotation speed Air Consumption
1.8Mpa 2.4Mpa
1.5-3.0 Mpa 30~60r/min 16m³/min 22m³/min


PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design

RC samples are collected directly at the drill and sent to assay labs. Unlike diamond drill core that requires extensive handling including logging, photography, splitting, assaying, and warehousing, RC sampling involves minimal processing. This results in faster assay turnaround with accompanying cost reductions. Larger volume RC samples often provide more representative gold samples than split half core samples.

PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design

PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design

PR54R RC Hammer with Remet/Metzke Thread for Reverse Circulation Drilling and Inner-Tube Design
