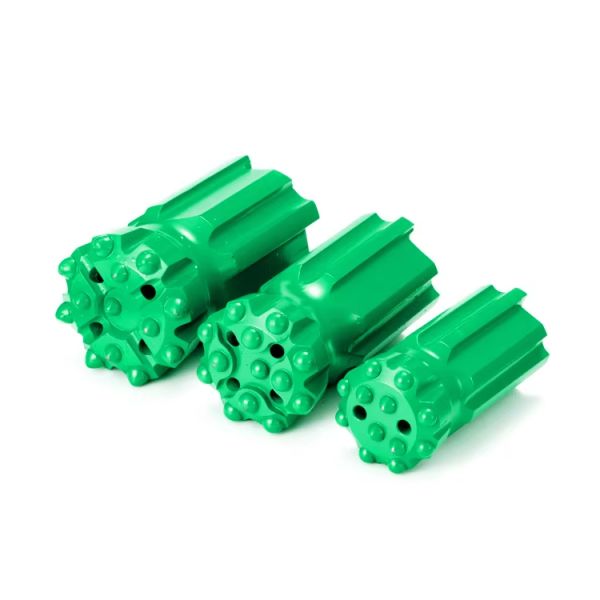

T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
Specifications
Brand Name :
MIROC
Model Number :
T45 89mm
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Price :
89
Supply Ability :
3000
Delivery Time :
20-30
Packaging Details :
Wooden cases
Type :
DRILL BIT
Material :
Tungsten Carbide and Alloy
Weight (KG) :
5.5
Product Name :
T45 89mm retrac button bit Color
Color :
Green,Red,or according to your requirement
Productive Process :
Forging and Heat-treatment
Connection Type :
Thread
Alloy Type :
Spherical/Hemi-Spherical/Parabolic/Conical/Ballistic
Skirt Type :
Retrac Skirt
Condition :
New
Description
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
Company Introduction
KSQ Technology (Beijing) Co., Ltd. specializes in the supply of high-quality rock drilling tools for mining, construction, tunneling, and quarrying projects worldwide. Our product range includes DTH hammers and bits, drill pipes, threaded drilling tools, reverse circulation hammers and bits, shank adapters, and coupling sleeves. We are committed to offering competitive advantages through reliable performance and engineering excellence.
Product Overview
This button bit is designed for high-efficiency drilling in demanding rock conditions. Featuring a T45 thread, 89mm diameter, carbide forged construction, and retrac design, it ensures superior wear resistance, easy retraction, and consistent performance in both surface and underground drilling applications.
Key Features & Benefits
  • T45 Thread - Standardized connection for wide compatibility with drilling equipment
  • 89mm Diameter - Optimized for medium to large hole drilling applications
  • Carbide Forged Construction - High-grade tungsten carbide inserts for extended service life
  • Retrac Design - Facilitates easy bit retraction in broken or fractured ground conditions
  • Versatile Application - Suitable for mining, tunneling, quarrying, and construction drilling
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
Product Specifications
Product Name Different rock hardness drilling button bit
Description For different rock hardness mining, tunneling, quarrying button bit
Material Alloy steel bar and tungsten carbide bit
MOQ Trial order 1-5pcs
Body Type Normal type and retract type
Thread Type R25, R28, R32, R38, T38, T45, T51, ST58, ST68
Diameter 32mm-152mm
Button Bit Shape Spherical and Ballistic
Face Shape Flat shape and Drop-center shape
Technical Specifications Table
Product Name Bit Diameter (mm) Bit Diameter (inch) Carbide Button Front (No. x mm) Carbide Button Gauge (No. x mm) Angle Flushing Hole Weight (kg)
T45 Retrac Bit 70 2 3/4 3x11, 1x9 6x11 35° 3 2.5
T45 Retrac Bit 70 2 3/4 4x10, 1x10 8x11 35° 4 2.5
T45 Retrac Bit 76 3 4x11 8x11 40° 2 3.2
T45 Retrac Bit 76 3 4x11 8x12 35° 2 3.2
T45 Retrac Bit 76 3 3x11, 1x11 6x13 35° 3 3.2
T45 Retrac Bit 76 3 4x11, 1x11 8x11 35° 4 3.2
T45 Retrac Bit 76 3 4x11, 1x11 8x12 35° 4 3.2
T45 Retrac Bit 89 3 1/2 4x13 8x13 40° 2 5.4
T45 Retrac Bit 89 3 1/2 6x11 8x12 35° 2 5.4
T45 Retrac Bit 89 3 1/2 3x11, 2x11 8x13 35° 3 5.4
T45 Retrac Bit 89 3 1/2 4x11, 1x11 8x12 35° 4 5.4
T45 Retrac Bit 89 3 1/2 4x13, 1x13 8x13 35° 4 5.4
T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit T45 89mm Carbide Forged Retrac Thread Rock Drill Button Bit
