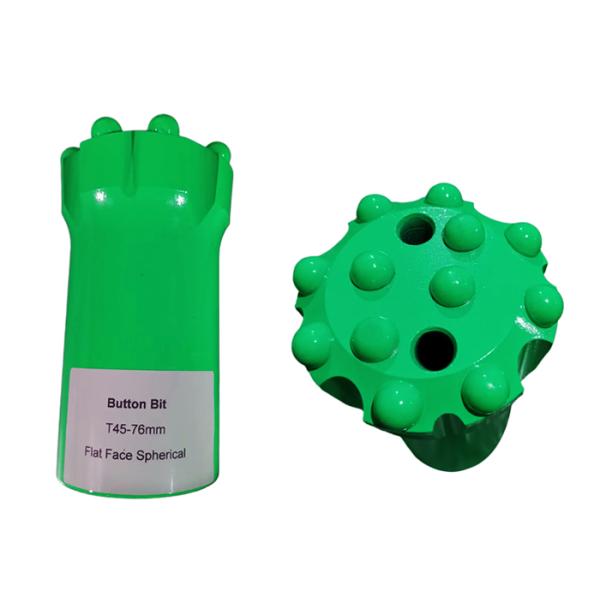

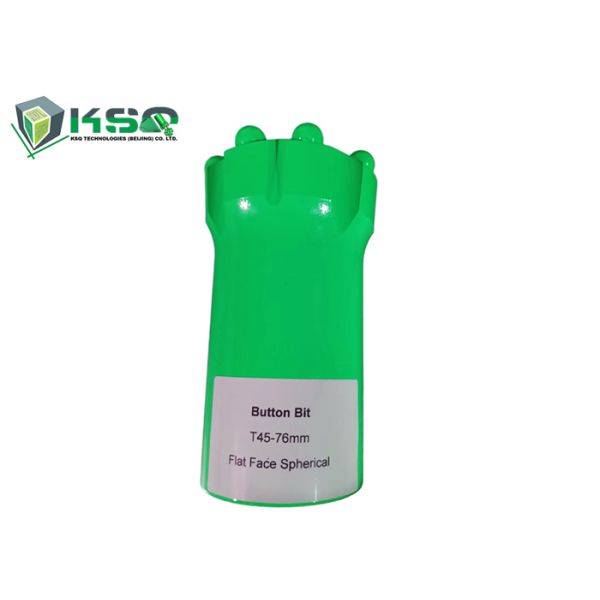

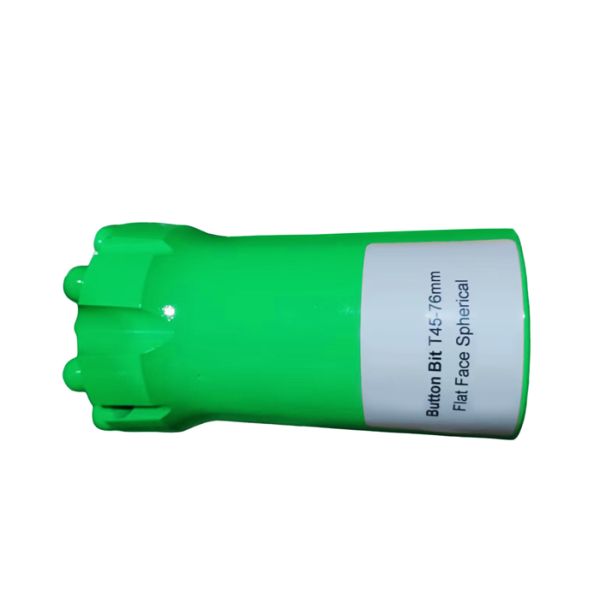

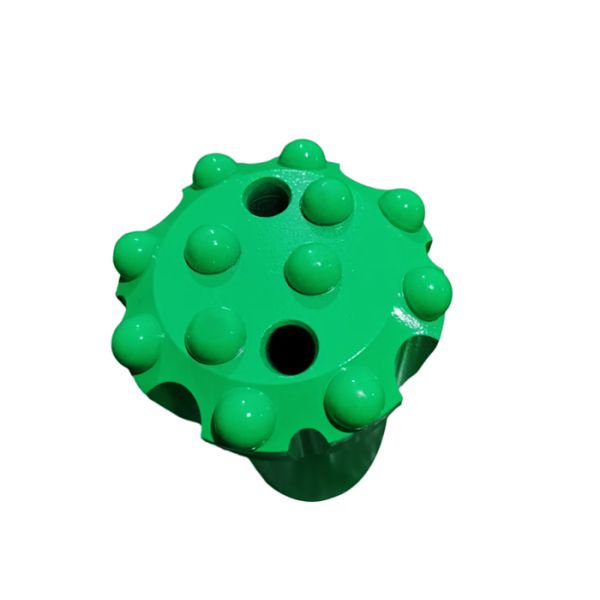

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit
Specifications
Brand Name :
MIROC
Model Number :
T45-76mm
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Model NO. :
T45-76mm
Surface Treatment :
Galvanized
Keyword :
Button Bit
Button Type :
Spherical, Ballistic, Conical
Thread Type :
T45
Colour :
Upon Request
Description

Description
Our thread button drill bit size from 33mm-178mm, include thread type R28, R32, R38, T38, T45, T51, ST58, ST68 etc for kinds of button bit, reaming button bit, retract button bit, drop centre retract button bit.
The button shapes of our button bits are spherical, ballitic, conical for customers to choose.
The buttons can be hot insert to the body and welded to the body as per custmers need and many kinds of good materials are available.

Advantage
1. High Quality
2. Reasonable Price
3. High Efficiency
4. Delivery On Time

Application
The button bit is widely used for rock drilling, blasting holes and other drill works in quarries, coal mines,
road and dam constructions and other similar projects.

Specification of button bits

Thread Button Bit

Diameter

Carbide size(mm)

Flushing hole

Weight

mm

in

Front

Gauge

Front

Side

(kg)

Qty×size

Qty×size

R/T38 (1 1/2")

64

2 1/2

3×11

6×12

2

1

1.62

70

2 3/4

4×10

8×10

2

1

1.98

76

3

4×11

8×12

2

1

2.28

89

3 1/2

6×11

8×12

2

2

3.32

T45 (1 3/4")

70

2 3/4

4×10

8×10

2

1

2.24

76

3

4×11

8×12

2

1

2.46

89

3 1/2

6×12

8×14

2

2

3.52

102

4

7×12

8×14

2

2

4.46

115

4 1/2

8×12

8×14

2

2

6.68

T51 (2")

76

3

4×12

8×12

2

1

3.62

89

3 1/2

6×12

8×14

2

2

4.48

102

4

7×12

8×14

4

1

5.26

115

4 1/2

8×12

8×14

4

1

7.62

127

5

9×12

8×16

4

1

8.58

Thread Button Bit T45-76mm Rock Drilling Tools Drill Bit

Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying

Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment

Thread Button Bit T45-76mm Rock Drilling Tools Drill BitThread Button Bit T45-76mm Rock Drilling Tools Drill BitThread Button Bit T45-76mm Rock Drilling Tools Drill Bit
