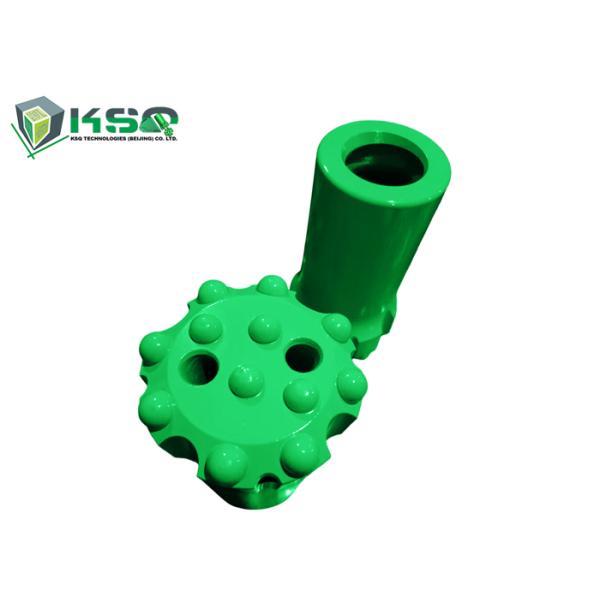

T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit
Specifications
Brand Name :
MIROC
Model Number :
T38-76mm button bit
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Model NO. :
T38
Length :
Stub-length
Material :
Alloy Steel & Tungsten Carbides
Diameter :
76mm
Specification :
57-115mm
Class :
Hard
Application :
Bench & Long Hole Drilling
Description

Product Description

Bench and production drilling tools include rods, shank adapters, couplings and bits. We have mainly 9 threads: R28, R32, R38, T38, T45, T51, T60, ST58 and ST68. They can be used with button bits, cross bits and reaming products.

KSQ drilling's comprehensive range of bench and production rock drilling tools includes everything from 1" rope thread equipment all the way up to T60 thread equipment, Many customers say that the drill rods, tubes and button bits are the best on the market today. Let's just say they will improve productivity considerably.


(1)Thread: R32, HL38,T38, T45, T51,T60, ST58,ST68
(2)Diameter: 38-140mm.

Ballistic button bits are often used in consolidated rock formations that are not particularly hard. Compared to spherical button bits, the carbide tips of ballistic button bits are more prominent, which is aggressive for rock penetration, and let the drilling speed faster. Therefore, the ballistic button bit is an ideal choice for drilling soft rock and medium-hard rock. T38 76MM button bit with ballistic carbide can be widely used in Bench drilling, underground production drilling, long hole drilling, and other fields.

T38 Thread Button Bit Specification

Diameter

Buttons and Size (mm)

Flushing hole

Weight

mm

inch

Front

Gauge

Angle

Front

Side

kg

Spherical

64

2 1/2

3×11

6×12

35°

3

-

1.8

64

2 1/2

4×10

8×10

40°

2

-

1.6

64

2 1/2

3×10, 1×10

6×11

35°

3

-

1.7

70

2 3/4

4×11

8×11

40°

2

-

1.9

70

2 3/4

4×10, 1×10

8×11

30°

4

-

1.9

70

2 3/4

3×10, 1×10

6×12

35°

3

-

1.8

76

3

4×11

8×11

40°

2

-

2.4

76

3

5×11

8×13

35°

2

1

2.4

76

3

3×11, 1×11

6×12

35°

3

1

2.6

76

3

4×11, 1×11

8×12

35°

4

-

2.6

76

3

4×11, 1×11

8×11

40°

4

-

2.6

89

3 1/2

4×13

8×13

40°

2

-

3.3

89

3 1/2

5×13

8×13

35°

2

-

3.3

89

3 1/2

6×11

8×12

35°

2

-

3.3

89

3 1/2

3×11, 2×11

6×13

35°

3

1

3.3

89

3 1/2

4×11, 1×11

8×13

35°

4

-

3.3

89

3 1/2

4×13, 1×13

8×13

35°

4

-

3.3

Ballistic

64

2 1/2

3×11

6×12

35°

3

-

1.8

64

2 1/2

4×10

8×10

40°

2

-

1.6

64

2 1/2

3×10, 1×10

6×11

35°

3

-

1.7

70

2 3/4

4×11

8×11

40°

2

-

1.9

70

2 3/4

4×10, 1×10

8×11

30°

4

-

1.9

76

3

4×11

8×11

40°

2

-

2.4

76

3

5×11

8×13

35°

2

1

2.4

76

3

3×11, 1×11

6×12

35°

3

1

2.6

76

3

4×11, 1×11

8×12

35°

4

-

2.6

76

3

4×11, 1×11

8×11

40°

4

-

2.6

89

3 1/2

5×13

8×13

35°

2

-

3.3

89

3 1/2

6×11

8×12

35°

2

-

3.3

89

3 1/2

3×11, 2×11

6×13

35°

3

1

3.3

89

3 1/2

4×11, 1×11

8×13

35°

4

-

3.3

89

3 1/2

4×13, 1×13

8×13

35°

4

-

3.3

T38 76mm Rock Drilling Tools Flat Face Standard Skirt Threaded Button Bit

Applications of rock drilling tools
• Underground mining
• Tunneling,quarrying
• Granite, Basalt, Limestone rock etc.

Competitive Advantage
• High grade tungsten carbide inserts
• Low use cost,low natural power consumption, easy installation and disassembly, long service life.
• Excellent drilling penetration and Strong corrosion resistance.
• Improved detection methods, advanced testing equipment, and strictly control the quality to ensure the production of high-quality products.
