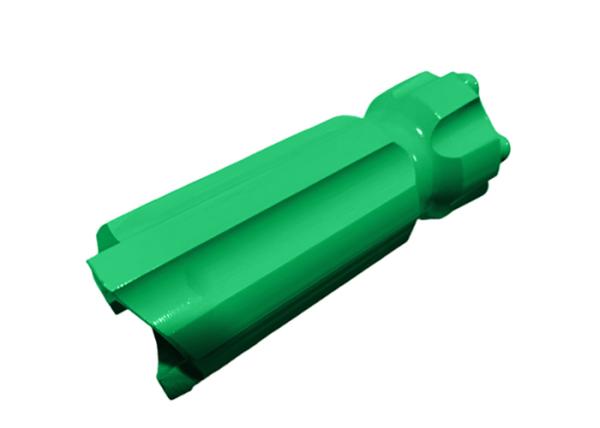

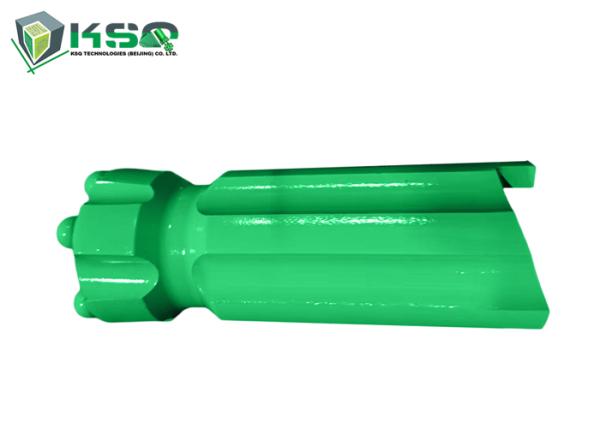

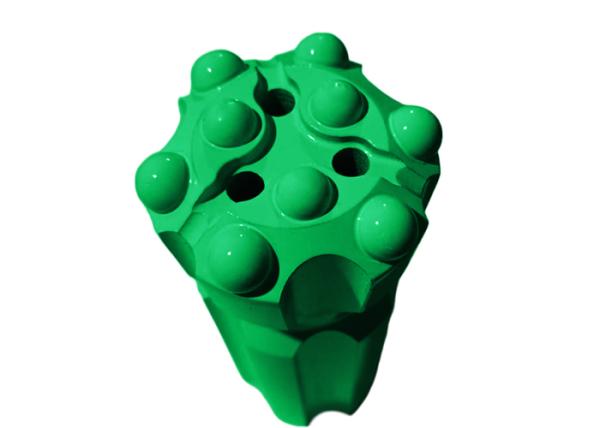

Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Custom High Quality Rock Drilling Tools R32-51mm-Retract bit
Specifications
Brand Name :
MIROC
Model Number :
R32-51mm
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Type :
Rock Drilling Bit
Material :
Alloy Steel & Tungsten Carbides
Usage :
Rock Drilling
Class :
Medium Hard
Application :
Drifting&Tunneling
Bit Face :
Flat Face Bit, Convex Face Bit, Concave Face Bit
Process :
Forging+Machining+Surface Treatment
Button Shape :
Spherical/Ballistic/Parabolic/Sharp/Falt Bottons
Port Holes :
as Request
Description

Features & benefits
Different front designs for various rock formations
Longer service life
Improved hole straightness
Lowest cost per meter drilled
R32 51mm thread button bit is used for tunneling and underground mining,which is very cost effective when compared to other famous brand. Our R32 button bit made with high quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.

According to different drilling application, we have different design to meet customers with good quality and good price .

Specification of Button Bit

Thread

Diameter range

Skirt Design

Face Design

Button Design

R22

35 - 45mm

Normal

Flat Face
Drop Centre

Hemispherical
Ballistic

R25

33 - 57mm

Normal

Flat Face
Drop Centre

Hemispherical
Ballistic

R28

36 - 51mm

Normal

Flat Face
Drop Centre

Hemispherical
Ballistic

R32

41 - 89mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

R35

48 - 51mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

R38

64 - 102mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

T38

57 - 102mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

T45

70 - 127mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

T51

76 - 140mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

T60

89 - 140mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

ST58

89 - 140mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

GT60

93 - 140mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical

ST68

102 - 152mm

Normal
Retrac

Flat Face
Drop Centre

Hemispherical
Ballistic
Conical
