133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
133mm Diameter RC45 DTH Bit - Alloy Steel Reverse Circulation Hammer Drill Bit for High Performance Rock Drilling
Specifications
Brand Name :
MIROC
Model Number :
RC45 HD
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Manufacturing Process :
Forging
Material :
Alloy Steel
Mining Type :
Mining
Advantage :
High Performance
Color :
Per Request
Specification :
3inch to 5.5inch
Surface Treatment :
Polishing
Description

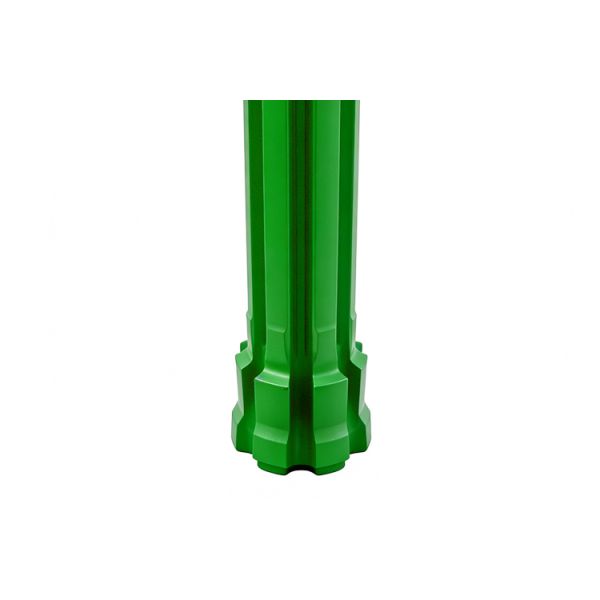

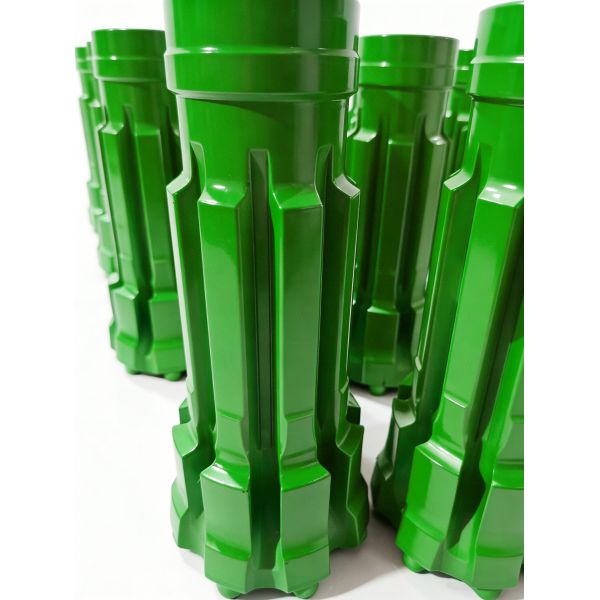

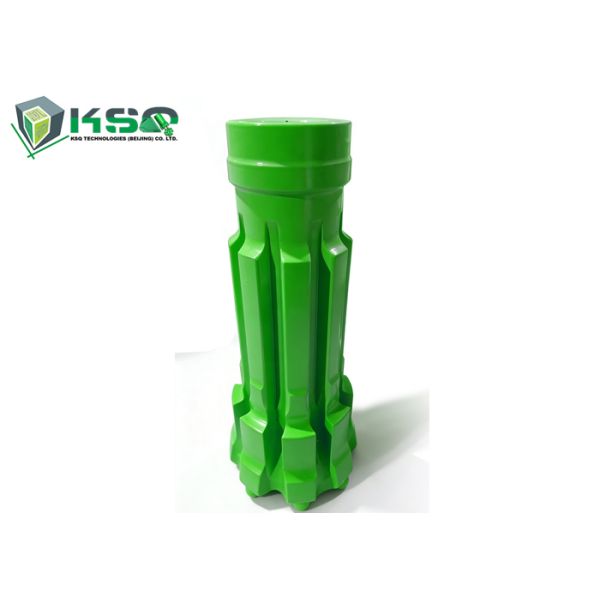

133mm RC45 HD Reverse Circulation Hammer Drill Bit
High-performance drilling spare parts for rock drilling machines and DTH bits
Reverse Circulation Drilling Technology
Reverse Circulation (RC) drilling utilizes dual wall drill rods consisting of an outer drill rod and inner tube. The hollow inner tubes enable continuous, steady transport of drill cuttings back to the surface using compressed air, making this the preferred method for initial exploration.
Key Features & Advantages
  • Optimized internal structure based on extensive hammer experience, ensuring fast, smooth drilling with continuous sampling
  • Simple internal design with high-rigidity components for extended service life and easy maintenance
  • Integrative collection tube design allows replacement without disassembling the hammer, featuring carburizing treatment for superior abrasion resistance
  • Patented drill bit design enables drilling different hole sizes with the same hammer, preventing sample contamination
  • Effective performance in challenging conditions including loose soil, hard rock, and water-rich environments
RC45 Bits Specifications
Diameter (mm) Diameter (inch) No. x Button Diameter (mm) Button Angle Flushing Holes Shroud Dia (mm) Weight (kg) Part No.
133 5 1/4 8 x 16mm 35 2 95.5 15.1 RC45-133
136 5 3/8 8 x 16mm 35 2 95.5 15.1 RC45-136
140 5 1/2 8 x 16mm 35 2 95.5 15.5 RC45-145
Available RC Bit Sizes
  • 3" RC Bits: Diameter (86mm-102mm), shank (RE531)
  • 4" RC Bits: Diameter (114mm-127mm), shank (RE004, RE004R)
  • 4.5" RC Bits: Diameter (121mm-133mm), shank (RE542, RE543)
  • 5" RC Bits: Diameter (113mm-146mm), shank (RE545, PR40)
  • 5.5" RC Bits: Diameter (133-146mm), shank (RE547, PR52, PR54, RC45)
  • Custom sizes available upon customer requirements
Applications
Reverse circulation drilling is ideal for geological exploration and mineral sampling. The system's simple internal structure with high-rigidity components ensures long service life and easy maintenance. The integrative collection tube design allows replacement without disassembly, while carburizing treatment provides excellent abrasion resistance. The patented bit design enables drilling multiple hole sizes with the same hammer while preventing sample contamination.
Why Choose Our Products
  • High-quality raw materials with premium hardening procedures for extended service life
  • Complete production chain ensuring stable manufacturing and prompt delivery
  • Experienced senior technicians and engineering team
  • Long-term experienced workers and engineers
  • Quick and efficient customer service
  • Attention to customer concerns and requirements
  • Customization services available
