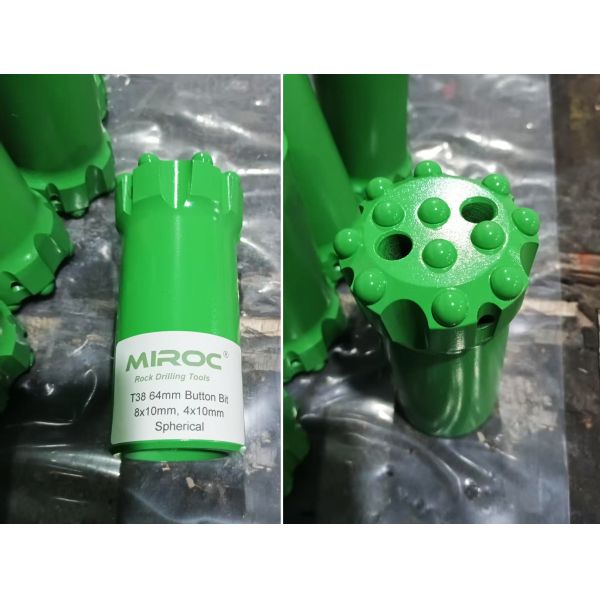

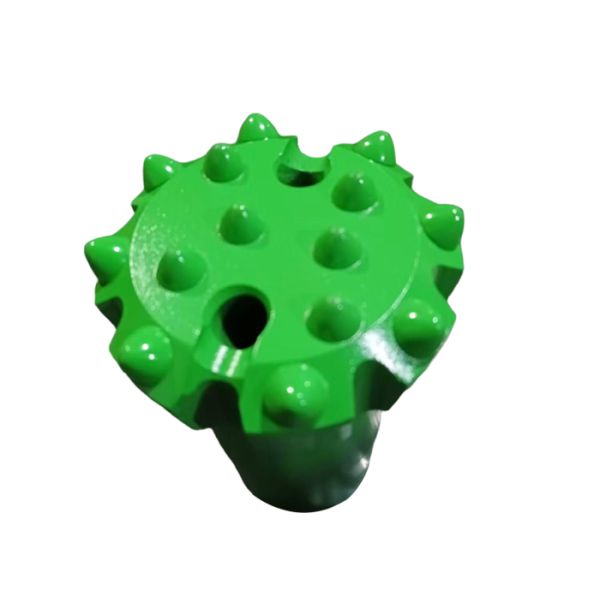

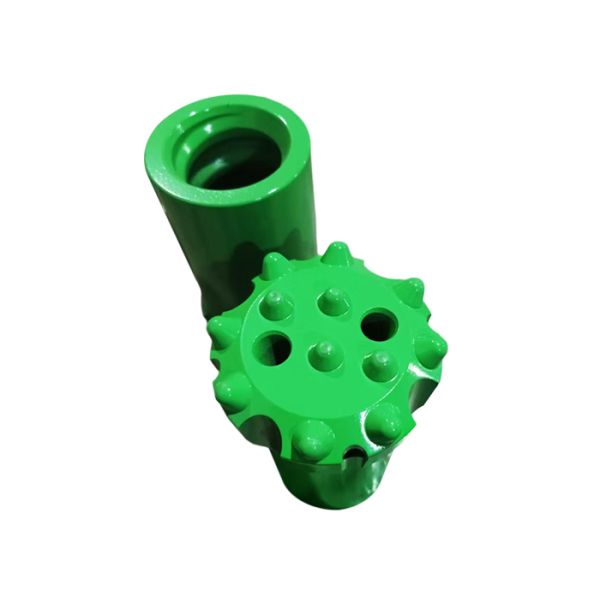

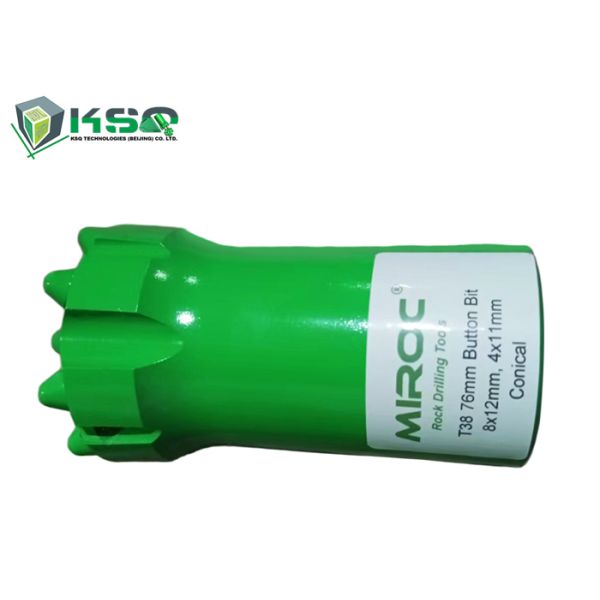

T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
T38-76mm Tungsten Carbide Threaded Button Bit with Ballistic and Spherical Buttons for Rock Drilling
Specifications
Brand Name :
MIROC
Model Number :
T38-76mm
Certification :
ISO
Place of Origin :
china
MOQ :
1
Supply Ability :
3000
Delivery Time :
20-30
Product :
T38-76mm Button bit
Button Shape :
Ballistic, Spherical, Composite buttons
Application :
Bench drilling, underground production drilling, long hole drilling
Body :
Retrac Skirt, Standard Skirt
Key Words :
Rock Drilling Bit
Usage :
Rock Drilling
Description
T38-76mm Tungsten Carbide Threaded Button Bit
Product Description
Description: Threaded button bit
Raw material: Alloy steel and tungsten carbides
Thread: R25, R28, R32, R35, R38; T38, T45, T51, T60, ST58, ST68
Face: Flat front, drop center
Diameter: 35mm-127mm
Carbide: Ballistic, conical, spherical
Color: Customized
Application: Used to drill deep holes in underground mines, open pit mines, and tapholes
Customization: Thread, diameter, buttons number, button type, and flushing holes can be customized according to client's requirements and drawings
Key Features
  • Premium material with high-quality alloy steel and tungsten carbide from internationally renowned brands
  • Advanced heat treatment technology for high wear resistance
  • High toughness and wear resistance
  • Rich production experience and market feedback data from clients
  • Large capacity, stable quality, short lead time, competitive pricing
Specifications of Button Bits (T38)
Bit Dia. (mm) Buttons and Size (mm) Flushing Hole Weight (kg)
64 3*10, 1*10 (Front)
6*11 (Gauge)		 3 (Front) 1.7
70 3*10, 1*10 (Front)
6*12 (Gauge)		 3 (Front) 1.8
76 3*11, 1*11 (Front)
6*12 (Gauge)		 3 (Front)
1 (Side)		 2.6
89 3*11, 2*11 (Front)
6*13 (Gauge)		 3 (Front)
1 (Side)		 3.3
