R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
Specifications
Supply Ability :
3000
Suitable Rock :
Soft Medium Hard Rock
Brand Name :
MIROC
Product Name :
R25 Rock Drill Button Bit
Model Number :
R25 35mm
Button Material :
Tungsten Carbide
MOQ :
1
Application :
Rock Drilling
Customization :
Available
Price :
＄35
Application Industry :
Mining Quarrying Construction
Drilling Method :
Top Hammer Drilling
Certification :
ISO
Body Material :
Alloy Steel
Place of Origin :
CHINA
Heat Treatment :
Advanced Heat Treatment
Description

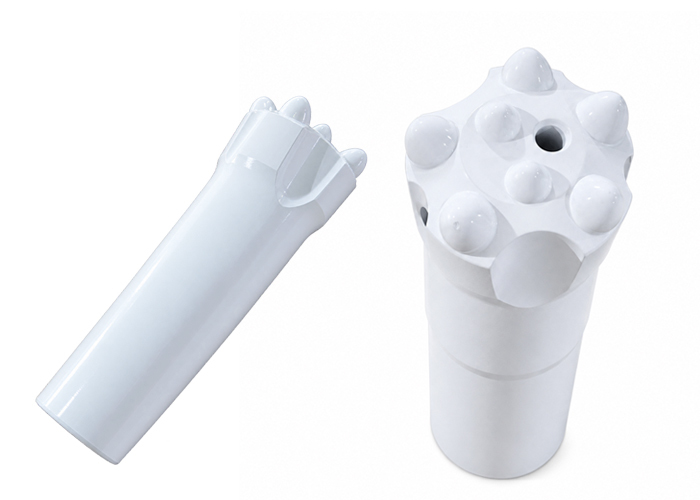

R25 35mm Rock Drill Button Bit
The R25 35mm Rock Drill Button Bit is engineered for efficient rock drilling in mining, quarrying, construction, and general drilling applications. It combines high-quality tungsten carbide buttons with a forged alloy steel body to deliver reliable drilling performance and exceptional wear resistance.
High-Quality Tungsten Carbide Buttons
High-strength tungsten carbide inserts provide excellent wear resistance and impact resistance during continuous rock drilling operations. The optimized button configuration ensures effective rock penetration and stable drilling performance.
Precision Forged Steel Body
The bit body is manufactured from premium alloy steel and processed through precision forging and heat treatment. The reinforced construction delivers superior structural strength and durability under demanding drilling conditions.
Efficient Rock Penetration
The R25 threaded connection ensures secure compatibility with corresponding drilling rods and tools. The 35mm drilling diameter is ideal for small-diameter rock drilling applications requiring efficient penetration and accurate hole formation.
R25 35mm Rock Drill Button Bit Tungsten Carbide Threaded Bit For Mining Quarrying Rock Drilling
R25 Thread Button Bit Specifications
Bit Dia. Buttons and Size (mm) Flushing Hole Weight Part Number
mm inch Front Gauge Angle Front Side kg
Spherical
331 2/72x75x735°110.4B733-R25-S
351 3/82x75x835°110.4B735-R25-S
381 1/22x75x830°110.5B738-R25-S
381 1/22x75x930°110.5B738-R25-S
411 5/82x94x935°120.6B741-R25-S
411 5/82x85x935'110.6B741-R25-S
451 7/92x94x1135°120.6B645-R25-S
451 7/92x85x1030°120.6B745-R25-S
451 7/92x85x1130°120.6B745-R25-S
Ballistic
331 2/72x75x735°110.4B733-R25-B
351 3/82x75x925°110.4B735-R25-B
381 1/22x75x940°110.5B738-R25-B
411 5/82x85x940°110.6B741-R25-B
451 7/92x95x1035°120.6B745-R25-B
Wide Application Range
  • Mining Drilling
  • Quarry Drilling
  • Rock Drilling
  • Construction Drilling
  • Tunneling
  • Bench Drilling
  • Small Hole Drilling
  • General Top Hammer Drilling
Customization Services
Different button configurations, carbide grades, bit diameters, and thread specifications can be customized according to your drilling equipment, rock formation, and working conditions.
