T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
Specifications
Model Number :
T-WIZ60
Weight (KG) :
9
Delivery Time :
20-30
Price :
＄95
Quality :
High Quality
Packaging Details :
Wooden box
Brand Name :
MIROC
Product name :
Threaded Button Bits
MOQ :
1
Application :
Construction
Certification :
ISO
Material :
Tungsten Carbide
Place of Origin :
CHINA
Advantage :
Factory price
Description

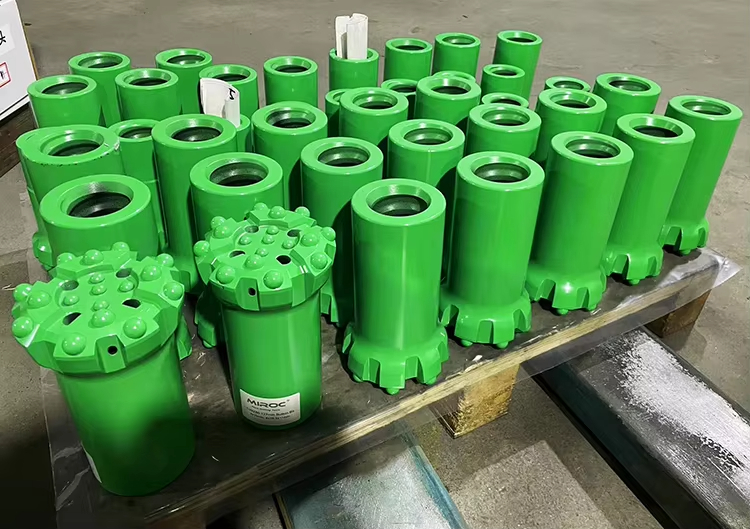

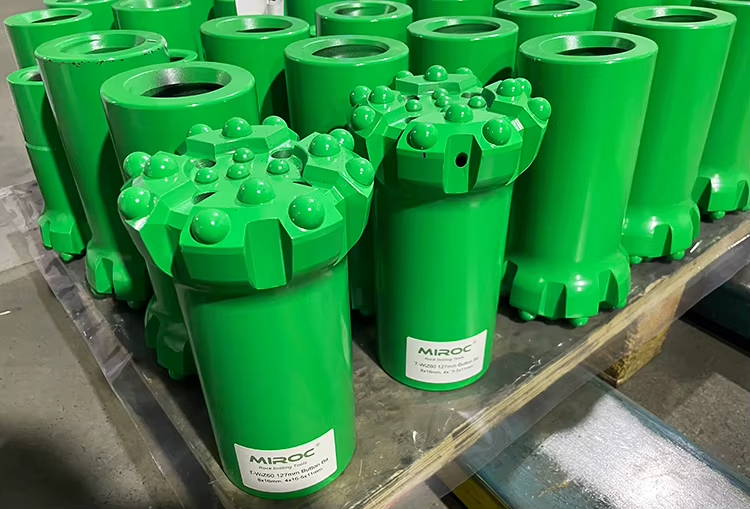

T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit
Precision T-WIZ60 design delivers efficient rock breaking and fast penetration rates. Premium tungsten carbide buttons ensure superior wear resistance in hard rock conditions. 102mm diameter is ideal for bench drilling, mining, and quarrying applications. Thread connection provides secure fit and efficient energy transfer. Forged alloy steel body with heat treatment extends service life and reduces replacement costs. Suitable for top hammer drilling systems. Factory direct pricing with fast delivery. Trusted by drilling professionals worldwide for reliable performance in demanding hard rock environments.
Technical Specifications
Diameter No. of Buttons Buttons x Button Diameter (mm) Gauge Buttons Angle° Flushing Hole Weight Approx kg
95 mm (3 3/4") 13 8x14.5 35° - 6.0
102 mm (4") 13 8x14.5 35° - 6.6
102 mm (4") 13 8x14.5 35° - 6.6
115 mm (4 1/2") 14 8x15.8 35° - 8.9
115 mm (4 1/2") 14 8x15.8 35° - 9.4
127 mm (5") 14 8x15.8 35° - 11.3
127 mm (5") 14 8x15.8 35° - 11.3
140 mm (5 1/2") 16 8x19.1 35° - 15.0
140 mm (5 1/2") 16 8x19.1 35° - 15.0
152 mm (6") 16 8x19.1 35° - 13.1
152 mm (6") 16 8x19.1 35° - 18.1
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
Applications
  • Bench Drilling
  • Hard Rock Mining
  • Quarrying
  • Construction Drilling
  • Tunneling
  • Blast Hole Drilling
T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling T-WIZ60 102mm High Quality Bench Drilling Thread Button Bit Rock Drill Bit for Rock Drilling
