R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
Specifications
Brand Name :
MIROC Top Hammer Rock Drilling Tools
Model Number :
Speed Rod
Certification :
SGS
Place of Origin :
China
MOQ :
10 Pieces Speed Rod
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 pieces per month Thread MF- Rod
Delivery Time :
25 days
Packaging Details :
Carton Box or Wooden Box
Name :
Drifter Rod
Type :

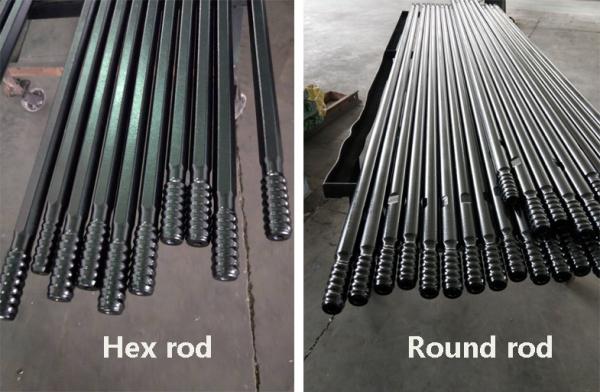

Round and Hex Drill Rod
Thread :
R32 R38 T38
Diameter :
32mm
Length :
3660mm 3050mm
Application :
short hole drilling, drifting and tunneling
Description

Product introduction

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Basic Information

Product Name Threaded Drill Rod
Thread R32 R38 T38
Diameter 32mm, 35mm, 39mm,
Length 400mm - 5530mm
Drill Rod Type Extension Rod, Hex Rod,
Material High strength alloy steel bar
Color Black or based on customer requirements.

Drill rod using R32/R38/T38 thread system.

With wrench flats to aid in coupling/decoupling of rods for extension drilling.

Used in benching and long hole drilling.

Drilling precision can be further improved by using this as the first rod in a normal drill string. Furthermore, since this is a speed rod design it will produce straighter holes and at least 10% higher penetration rate in good rock conditions compared to rod and coupling sleeve combination system

1. Drifter Rod R/T38-Hex 32-R32 Specification

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Model

Length

(mm)

Diameter

(mm)

 Part Number Product Code

Drifter Rod

R/T38-Hex 32-R32

Flushing hole 9.6mm

 2400 32 4148300560 DRH32-R32R/T38-2400
3090 32 4148300561 DRH32-R32R/T38-3090
3400 32 4148300562 DRH32-R32R/T38-3400
4000 32 4148300563 DRH32-R32R/T38-4000
4310 32 4148300564 DRH32-R32R/T38-4310
4920 32 4148300565 DRH32-R32R/T38-4920
5530 32 4148300566 DRH32-R32R/T38-5530

2. Drifter Rod R/T38-Hex 35-R32 Specification

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Model Length
(mm)

Diameter

(mm)

 Part Number Product Code


Drifter Rod

R/T38-Hex 35-R32
Flushing Hole 9.5mm

 3090 35 4148300567 DRH35-R32R/T38-3090
3700 35 4148300568 DRH35-R32R/138-3700
4000 35 4148300569 DRH35-R32R/T38-4000
4310 35 4148300570 DRH35-R32R/T38-4310
4920 35 4148300571 DRH35-R32R/T38-4920
5530 35 4148300572 DRH35-R32R/T38-5530
6100 35 4148300573 DRH35-R32R/T38-6100

3. Speed Rod T38-Hex 35-R32 Specification

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Model Length
(mm)

Diameter

(mm)

 Part Number Product Code


Speed Rod

T38-Hex 35-R32
Flushing Hole 9.5 mm

 3700 35 4148300574 SRH35-R32T38-3700
4310 35 4148300575 SRH35-R32T38-4310
4920 35 4148300576 SRH35-R32T38-4920
5530 35 4148300577 SRH35-R32T38-5530
6400 35 4148300578 SRH35-R32T38-6400

4. R38 Hex Extension Rod

R38-Hex 32-R38, Flushing Hole 9.6 mm

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Model

Length

(mm)

Diameter

(mm)

 Part Number Product Code

R38 Hex Extension Rod

R38-Hex 32-R38

Flushing Hole 9.6 mm

 1220 32 4148300698 ERH32-R38-1220
1830 32 4148300699 ERH32-R38-1830
2435 32 4148300700 ERH32-R38-2435
3050 32 4148300701 ERH32-R38-3050
3660 32 4148300702 ERH32-R38-3660

5. T38 Hex Extension Rod

T38-Hex 32-T38 Flushing Hole 9.6mm

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

Model

Length

(mm)

Diameter

(mm)

 Part Number Product Code

T38 Hex Extension Rod

T38-Hex 32-T38

Flushing Hole 9.6 mm

 1220 32 4148300791 ERH32-T38-1220
1830 32 4148300792 ERH32-T38-1830
2435 32 4148300793 ERH32-T38-2435
3050 32 4148300794 ERH32-T38-3050
3660 32 4148300795 ERH32-T38-3660


Application

• Underground mining
• Tunneling, quarrying

• Granite, Basalt, Limestone rock, etc.

Competitive Advantage

• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery

and heat treatment

• High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistance.

Product pictures

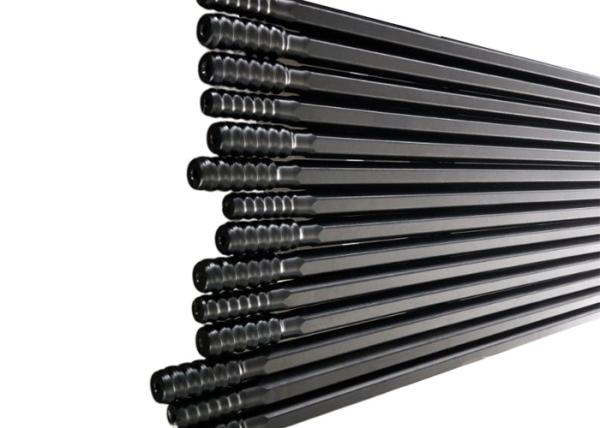

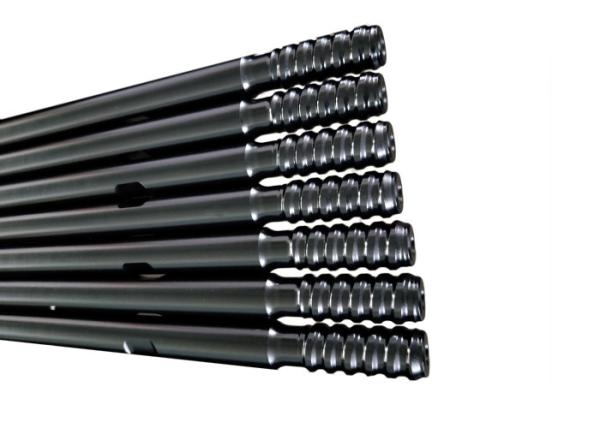

T38- Hex32-R32 Photos

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling

R32 R38 T38 Round and Hex Threaded Drill Rod For Short Hole Drilling / Tunneling
