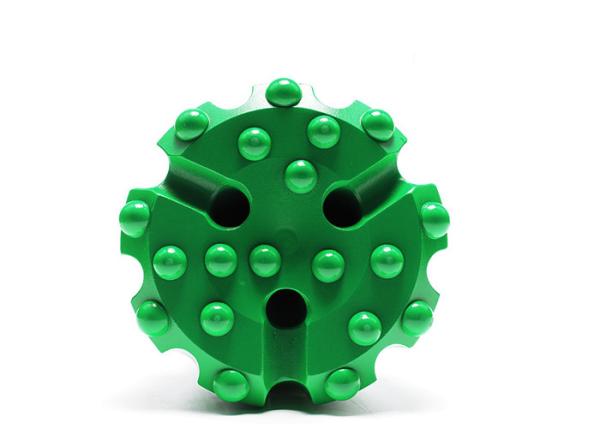

6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
6 M60-165mm Dth Button Bit For Earthmoving Engineering
Specifications
Brand Name :
MIROC
Model Number :
DTH Button Bit
Place of Origin :
China
MOQ :
2 Pieces
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000 pieces per month
Delivery Time :
25 days
Packaging Details :
Carton case or Plywood case
Material :
Carbon Steel
Shank Type :
Misson 60
Button Type :
Spherical/ ballistic
Face Type :
Flat /convex /concave
Name :
M60-165 DTH Drill bit
Description

6" DTH Drill Bit M60-165mm Button Bit For Earthmoving Engineering

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

Mission shank DTH Button Bit
It is a kind of high air pressure DTH hammer without foot valve. It is also one of the most advancedDTH hammers in the world.


It has the following advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15-30%higher than the one with foot valve.
3. Simple structure, reliable parts, long life span, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.

Parameter of M60 Brill bit

Drill bit diameter(mm) NO.Airholes buttons(mm) Weight(kg)
Mission60 152 2 8x18, 8x16 22.0
165 2 8x18, 10x16 23.0
171 2 8x18, 10x16 24.0
190 2 10x18, 12x16 25.0
203 2 10x18, 14x16 28.0

We can design and manufacture the personalized products to meet your specical apllication, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

Parameter of M60 hammer

Mission60 HIGH AIR PRESSURE DTH HAMMER
Length without bit 1161mm
Top sub thread API 2 7/8" REG , API 3 1/2" REG , API 2 7/8" IF
Outside diameter 142 mm,144 mm,146 mm, 148 mm,
Weight(without bit) 90 Kg
Bit diameter 155-203mm
Working presure 1.5-2.5 Mpa
Air consumption 20-30 m³/min
Bit shank Mission60

Application

• Earthmoving engineering

• Minning exploitation and oil drilling
• Water well drilling and pile foundation engineering

Our DTH Button Bits has following advantages:
1. 95% quality similarity with world top class brands,such as atlas Copco etc.
2. Strong ability in drilling tools production.
3. Strick quality control.

Pictures
666

6
