11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
Specifications
Brand Name :
MIROC
Model Number :
11 Degree Taper Button Bit
Certification :
ISO
Place of Origin :
China
MOQ :
50 pcs
Price :
Negotiation
Supply Ability :
20000 pcs per month
Delivery Time :
15-20 days

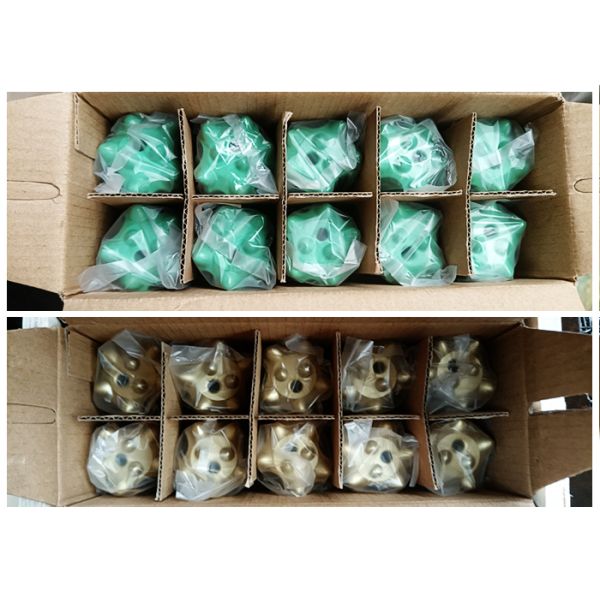

Packaging Details :
Carton, wooden boxes or customized
Material :
Alloy Steel with TC Buttons
Diameter :
32mm,36mm, 38mm, 40mm, 41mm
Buttons :
4, 5 , 6 , 7, 8 buttons
Skirt :
Normal or long
Flushing Holes :
2 or 3 holes
Taper Degree :
4, 7, 11, 12 degree
Button Shape :
Ballistic, Spherical, Conical
Shank Size :
H19, H22, H25
Color :
Green, Black or others
Packing :
Wooden Cases
Description

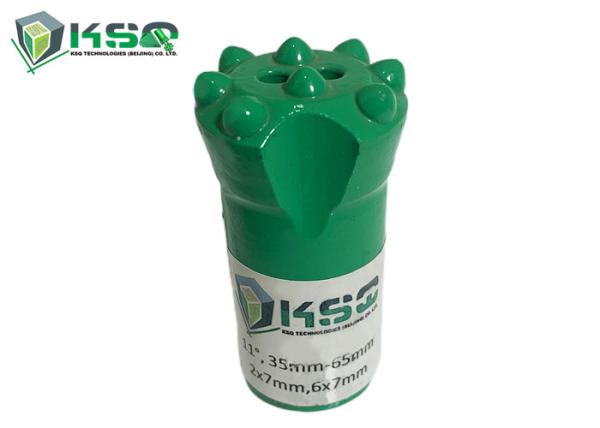

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling

Taper button bit, as a small hole bit, are used for air leg or hand held jack hammer driller in quarrying and mining.

With diameter of 32mm to 65mm, they are widely used in mining and quarrying, with combination of well anti-wear and anti-impact carbide buttons and high performance steel, it features the advantages of higher driving efficiency, long service life, better powder exhausting and easier bit back.

Specifications

11° Tapered Button Bit Bit Dia. Buttons and Size (mm) Flushing Hole Weight Product Code
mm inch Front Gauge Front Side kg
Button Bit, Short Skirt
BS5XX		 38 1 1/2 2x8 3x9 1 1 0.39 BS538-11D-22
40 1 4/7 2x8 3x9 1 1 0.4 BS540-11D-22-1
40 1 4/7 2x9 3x9 1 2 0.4 BS540-11D-22-2
Button Bit, Short Skirt
BS6XX		 33 1 2/7 2x7 4x7 1 1 0.25 BS633-11D-22
34 1 1/3 2x7 4x7 1 1 0.29 BS634-11D-22
36 1 3/7 2x7 4x7 1 1 0.36 BS636-11D-22
Button Bit, Short Skirt
BS7XX		 32 1 1/4 2x7 5x7 1 1 0.24 BS732-11D-22
35 1 3/8 2x7 5x7 1 1 0.33 BS735-11D-22-1
35 1 3/8 2x7 5x8 1 1 0.33 BS735-11D-22-2
36 1 3/7 2x7 5x8 1 1 0.36 BS736-11D-22
38 1 1/2 2x7 5x8 1 1 0.39 BS738-11D-22-1
38 1 1/2 2x7 5x9 1 1 0.39 BS738-11D-22-2
40 1 4/7 2x7 5x9 1 1 0.4 BS740-11D-22-1
40 1 4/7 2x8 5x9 1 1 0.4 BS740-11D-22-2
41 1 5/8 2x7 5x9 1 1 0.41 BS741-11D-22
Button Bit, Long Skirt
BL7XX		 32 1 1/4 2x7 5x7 1 1 0.3 BL732-11D-22
33 1 2/7 2x7 5x7 1 1 0.31 BL733-11D-22
35 1 3/8 2x7 5x9 1 1 0.38 BL735-11D-25
36 1 3/7 2x7 5x9 1 1 0.39 BL736-11D-25
38 1 1/2 2x7 5x9 1 1 0.41 BL738-11D-22
38 1 1/2 2x7 5x9 1 1 0.41 BL738-11D-25
41 1 5/8 2x7 5x9 1 1 0.42 BL741-11D-22
41 1 5/8 2x7 5x9 1 1 0.42 BL741-11D-25
Button Bit, Long Skirt
BL8XX		 33 1 2/7 2x7 6x7 1 1 0.31 BL833-11D-22
35 1 3/8 2x7 6x7 1 1 0.35 BL835-11D-22

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling

11 Degree Tapered Tungsten Carbide Button Bit For Small Holes Drilling
