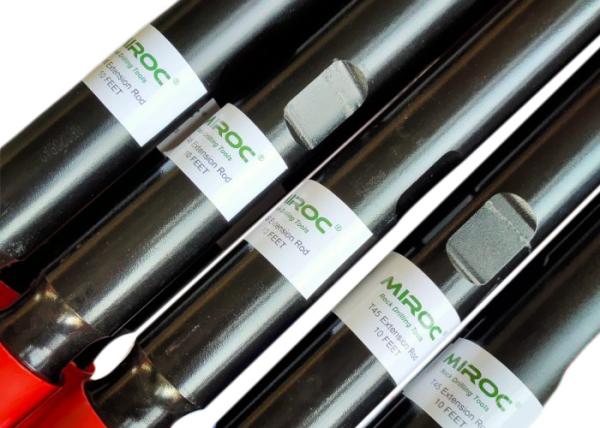

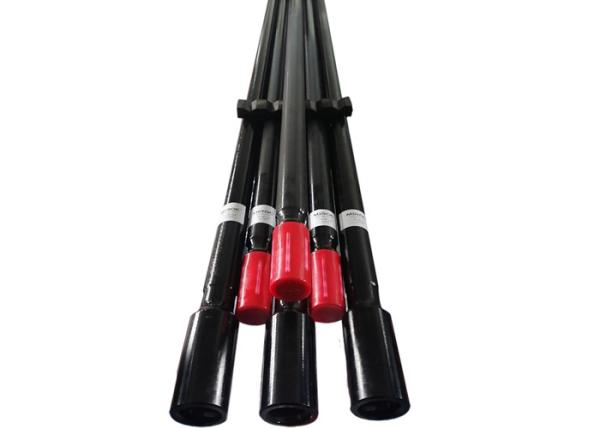

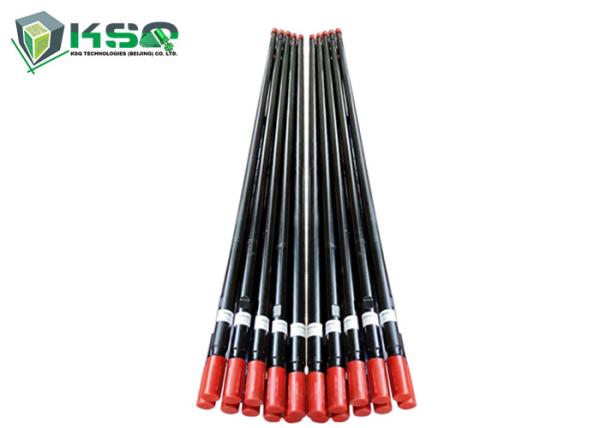

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
Specifications
Brand Name :
MIROC
Model Number :
T51 MF Threaded Drill Rod
Certification :
ISO
Place of Origin :
CHINA
Supply Ability :
1000000 Piece/Pieces per Month
Delivery Time :
10-20 days
Packaging Details :
wooden box or steel box
Thread :
T51
Type :
MF
Shape :
Round
Application :
Coal Mining,Quarry drilling, Construction,Stone Drilling
Advantage :
High Performance
Color :
Request
Usage :
Drilling and Construction
Transfer :
Air/Sea/Express
Description

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod

Male/Male rod,Male/Female(M/F)Rod-Speed rod M/F drill steel is an alternative to couplings sleeves to include the female part of the threaded connection as an integral part of the drill steel. M/Fdrillsteelprovidesmorerigidconnectionsandiseasiertouncouple and handle. The service life also tends to be better than with separate couplings.
For Extension Rod and M/F steel process, the below two different types of heat treatment are used to strengthen high speed and powerful percussive drill string components to maximize their performance and reliability.-Cannibalization is a process used to harden the entire rod surface both internally and externally to strengthen and extend the life of the rod. - High Frequency Induction is a process where only the thread ends of the rod are hardened to lengthen thread life.

T51 MF- Rod

Length Diameter Weight Part Number
mm foot mm inch kg
1525 5 52 2 26.2 4148300955
1830 6 52 2 30.6 4148300956
3050 10 52 2 48.3 4148300957
3660 12 52 2 57.1 4148300958
4270 14 52 2 66 4148300959
4880 16 52 2 74 4148300960
5530 18 1/7 52 2 84.2 4148300961
6095 20 52 2 92.4 4148300962

Competitive Advantage

• High-grade raw material
• Manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment

T51 1525mm Speed Rock Bench Drilling MF Threaded Drill Rod
