Specifications
Brand Name :
MIROC
Model Number :
RL-1 Load Haul Dump Machine
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiation
Payment Terms :
T/T or L/C
Supply Ability :
5 Units per month
Delivery Time :
1-3 Months
Packaging Details :
Based on requirements
Main Dimensions :
6000*1330*2037mm(L*W*H)
Volume Capacity :
1 cubic meter
Tramming capacity :
2000kg
engine :
DEUTZ F4L914 diesel engine
Hydrostatic Pump :
SAUER DANFOSS PV22
Hydrostatic Motor :
SAUER DANFOSS MV23
Axles :
XUZHOU-JINHE
Tires :
10.00-20.00 L5-S
Description

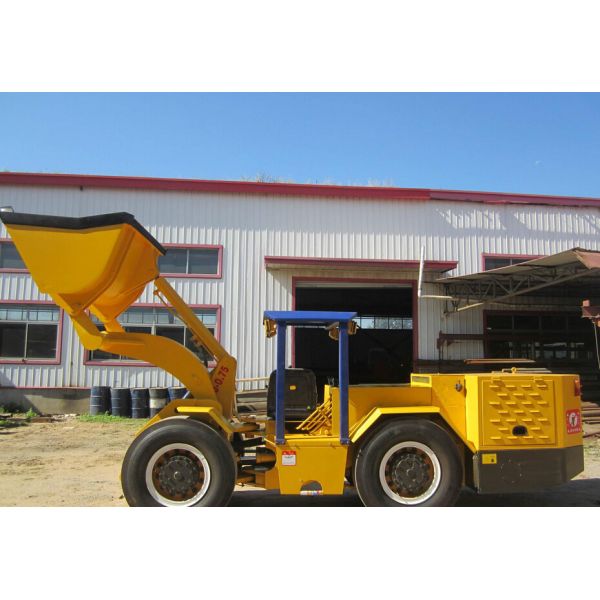

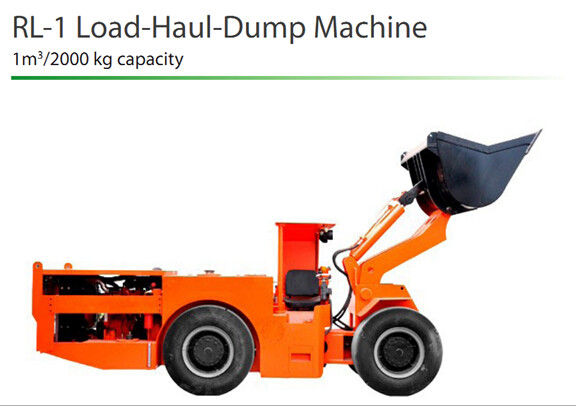

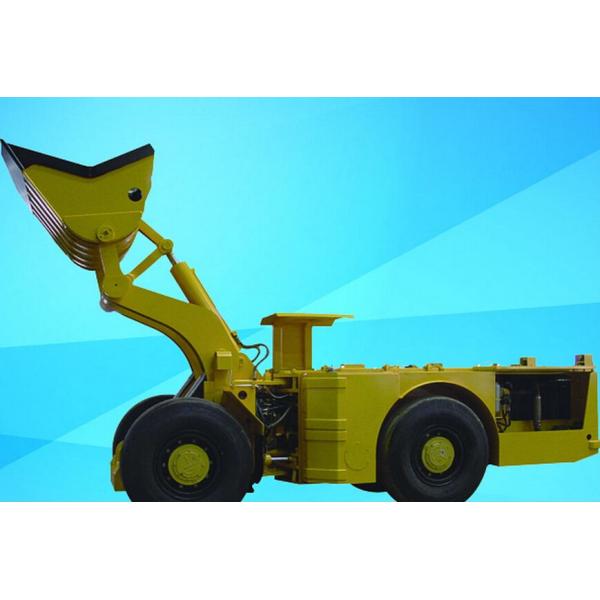

RL-1 Load Haul Dump Underground Mining Trucks with Diesel Engine for Tunnel

The RL-1 Load-Haul-Dump Machine is ideal for small scale rock excavation operations. The
small footprint of the machine is possible thanks to the use of a hydrostatic drive system. It
has high proven reliability, and straight-forward mechanical components that are easy to
maintain.

Color: Based on Customer requirements

Type: RL-4 Load-Haul-Dump Machine

Applications

Underground Mining

Hydropower Tunneling

Roadway/Railway Tunneling


Competitive Advantage

Major components from industry respected suppliers

Simple yet very robust design

Very competitive pricing compared to its counterparts coming from well-known brands

Competitive delivery

RL-1 Load Haul Dump Underground Mining Trucks with Diesel Engine for Tunnel

Specification

Load-Haul-Dump Machine
Type

Main

Dimensions

(L*W*H)

Volume

Capacity

Tramming

Capacity

 Engine Axles Tires
RL-1 6000*1330*
2037mm		 1m3 2000 kg

DEUTZ BF6L914

diesel engine

 XUZHOU-JINHE

10.00-20.00

L5-S
RL-2 6875*1770*
1950 mm		 2m3 4000 kg

DEUTZ F6L912W

diesel engine

 MERITOR CY-2J

12.00-24.00

L5-S
RL-3 8868*2112*
2275mm		 3m3 6000 kg

DEUTZ BF6L914C

diesel engine

 DANA 16D

17.50-25.00

L5-S
RL-4 9690*2550*
2395mm		 4m3 8000 kg CUMMINS QSL9C250 diesel engine KESSLER D91

18.00-25.00

L5-S

RL-1 Load Haul Dump Underground Mining Trucks with Diesel Engine for TunnelRL-1 Load Haul Dump Underground Mining Trucks with Diesel Engine for Tunnel

Support Equipment
Type

Main

Dimensions

(L*W*H)

Turning

Radius

Load

Capacity

 Engine Torque Converter Axles

RS-3SL

Scissors

Lift

 6860*1800*
2000mm

Inside 3800 mm

Outside5780mm

 3000 kg

DEUTZ F6L912W

diesel engine

DANA

1201FT20321

10.00-20.00

Mine Service

Tires

RS-3CT

Crew

Transporter

 6860*1800*
2000mm		 Inside3800mm
Outside5780mm		 3000 kg

DEUTZ F6L912W

diesel engine

DANA

1201FT20321

 DANA 112

MG-64A-SB

Shotcrete

Batcher

 9729*2082*
2591mm

Inside 4318 mm

Outside7061mm

 23m3/hour

Mercedes-Benz

OM 904 LA

diesel engine

DANA

HR32000

 CARRARO 28.60

MT30M

Low Profile

Transmixer

12100*3374*

3500 mm

Inside 5700mm

Outside9860mm

 9.17m3

CUMMINS QSX15

diesel engine

DANA

CL8000

 KESSLER D91

Main Products:

RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
RS-3 Service Vehicle Series
MG-64A-SB Shotcrete Batcher
MT30M Low Profile Transmixer
