Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining
Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining
Specifications
Brand Name :
ROXMECH
Model Number :
RL-1 Load Haul Dump Machine/ScoopTram
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T, L/C, D/A, D/P, Western Union
Delivery Time :
2 Months
Packaging Details :
Suitable for Long Transportation
Color: :
Orange/Yellow/White
Certification: :
CE, ISO9001
Application: :
Small Tunnel/Underground Mining
Bucket Capacity: :
One cubic meter/ 2 tons
Engine: :
DEUTZ F6L912W
Hydraulic Pump: :
Slovakia 3COM-GTN PV22
Hydraulic Motor: :
Slovakia 3COM-GTN MV23
Price :
negotiation
Description
Product Description

Competitive Advantage:

1. Fast feedback/reply
2. Very competitive pricing
3. Good Service
4. CE, ISO9001 Certified

Applications:
• Underground Mining
• Hydropower Tunneling
• Roadway/Railway Tunneling
• Can be utilized as a multi-role equipment with various attachments (i.e. shotcrete robot arm)
Operation Advantage:
The RL-1 Load-Haul-Dump Machine bucket capacity is 1 cubic meter, it is ideal for small size rock excavation operations.
The RL-1 maintains the simple yet very robust design tenets of what a mining equipment should be - it has a small footprint and turning radius suitable for small envelope sizes, high proven reliability, and straight-forward mechanical components that are easy to maintain.



Main Technical Configuration:

1 Rated Bucket Capacity 1m3
2 Rated Load Capacity 2t
3 Maximum Relieving Force 48kN
4 Maximum Traction 56kN
5 Driving Speed 0-10km/h
6 Maximum Climbing Capacity 20°
7 Maximum Discharge Height 1050mm
8 Minimum Discharge Distance 860 mm
9 Working time 11s
10 Minimum Turning Radius 4260mm(Outboard of bucket)
2540mm(inside of back wheel)
11 Maximum Steering Angle ±38°
12 Minimum Ground Clearance 200mm
13 Rear Axle Swinging Angle ±8°
14 Weight of the Whole Machine 6.75t
15 Size 　
Length(Bucket in haul position) 5850mm
Width 1300mm
Height of the Cab 2000mm


Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining

Finished Production in factory

Orange Yellow One Cubic Meter Load Haul Dump Machine Underground MiningOrange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining

Packaging & Shipping in Container and Truck

Orange Yellow One Cubic Meter Load Haul Dump Machine Underground MiningOrange Yellow One Cubic Meter Load Haul Dump Machine Underground MiningOrange Yellow One Cubic Meter Load Haul Dump Machine Underground MiningOrange Yellow One Cubic Meter Load Haul Dump Machine Underground MiningOrange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining

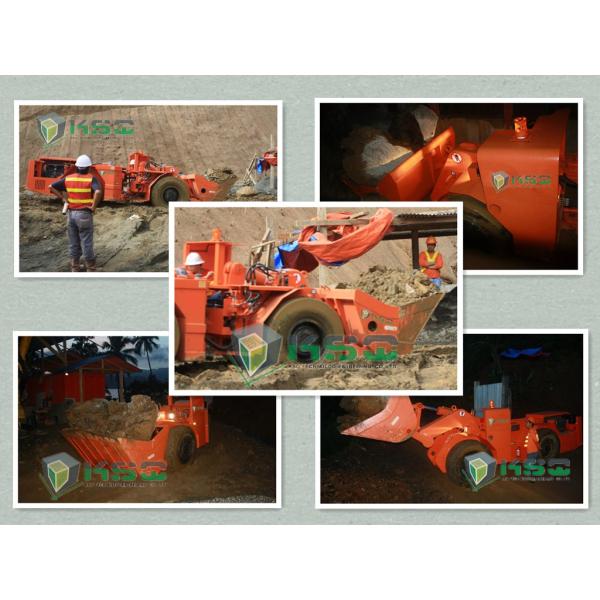

Working at site

Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining

Load Haul Dump Machine|Scoop Tram|Underground Mining Scraper|Underground Mining Equipment|Trackless Underground Haulage Equipment|underground mining wheel loader|Cargar Haul Dump Máquina|scooptram|Minería Subterránea raspador|Equipos para minería subterránea|Sin caminos metro equipo de arrastre|subterráneo cargadora de ruedas minera|

Company Information

ROXMECH®, by KSQ Technologies (Beijing) Co. Ltd., is a product line consisting of specialized
equipment for use in underground mining and tunneling works, such as Load-Haul-Dump
Machines (LHDs), Low Profile Trucks (LPTs), Scissors Lift Truck, Mobile Batching Equipment,
Service Vehicles, and Personnel Carriers.

ROXMECH® Rock Excavation and Service/Support Equipment include:

Load Haul Dump Machines


RL-1 Load-Haul-Dump Machine
RL-2 Load-Haul-Dump Machine
RL-3 Load-Haul Dump Machine
RL-4 Load-Haul Dump Machine
Low Profile Dump Trucks


RT-12 Low Profile Dump Truck
RT-15 Low Profile Dump Truck
RT-20 Low Profile Dump Truck
MT30D Low Profile Dump Truck
Support Equipment


RS-3 Service Vehicle Series
MT30M Low Profile Transmixer
Processing Equipment


TT Series Vacuum Ceramic
Filtration System




Exhibition Activity

2016 MINExpo, Las Vegas, USA from Sep. 26-28
Booth Number: North 655
Much welcome all friends to visit us there!
Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining



Orange Yellow One Cubic Meter Load Haul Dump Machine Underground Mining please contact: selena.wang03@ksq-tech.com
